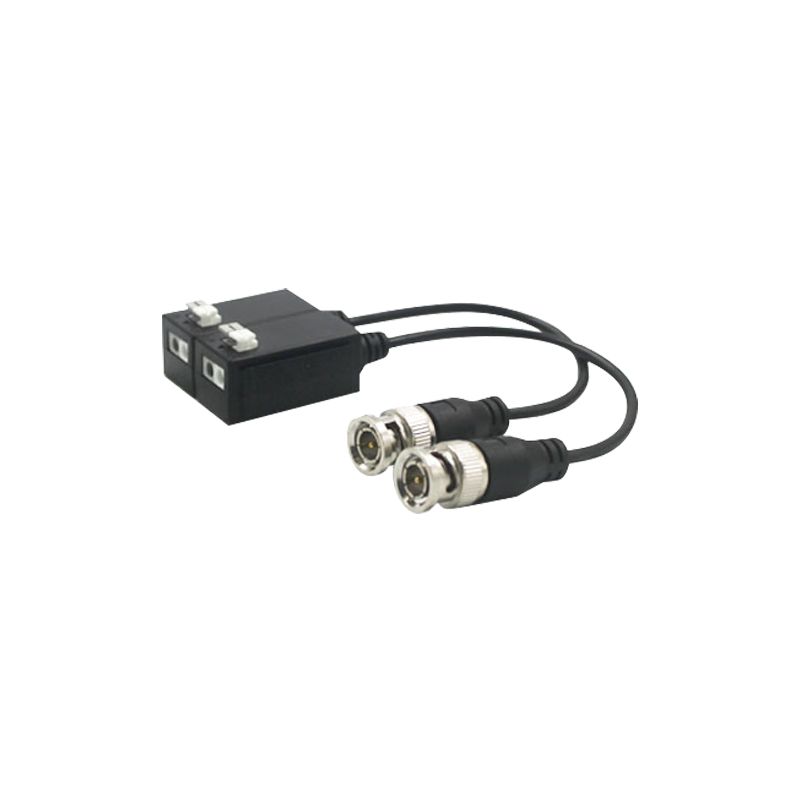

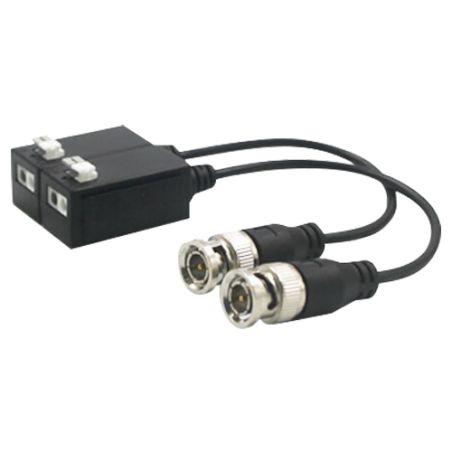

Safire BA612P-HAC - SAFIRE UTP passive transceiver, Optimised for HDTVI,…
SAFIRE UTP passive transceiver - Optimised for HDTVI, HDCVI and AHD - 1 video channel - Passive, connector of 2 pins - Range: 150 ~ 400 m - 2 units
€5.74
€8.83
Save 35%
Tax included
Reference
BA612P-HAC
Brand
Safire
Safire BA612P-HAC - SAFIRE UTP passive transceiver, Optimised for HDTVI,…
€5.74
€8.83
Save 35%
You might also like
Passive twisted pair video transceiver from Safire, 2 units for transmission and reception, specific for high definition analog (HD).
Optimized for the transmission of video signal of 1 high definition analog camera HDTVI, HDCVI or AHD by twisted pair. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.
The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used:
- HDTVI 720p - 250 m
- HDTVI 1080p - 250 m
- HDTVI 4Mp (2560*1440) - 150 m
- HDCVI 720p - 400 m
- HDCVI 1080p - 250 m
- HDCVI 4Mp (2560*1440) - 150 m
- AHD 720p - 350 m
- AHD 1080p - 200 m
Features
- SAFIRE UTP passive transceiver
- Optimised for HDTVI, HDCVI and AHD
- 1 video channel
- Passive, connector of 2 pins
- Range: 150 ~ 400 m
- 2 units
Specs
| Brand | SAFIRE |
| Number of channels | 1 channel |
| Power | Not required (Passive) |
| Video Input/Output | BNC (male) |
| Transmission distance | HDTVI 250/250/150 m (720p/1080p/4 Mp), HDCVI 400/250/150 m (720p/1080p/4 Mp) AHD 350/200 m (720p/1080p) |
| Twisted pair connector | Two pin connector |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output Impedance | 100 Ohm |
| Cable category | UTP category 5/5E/6 |
Package content
- Pair of passive HD tranceivers
Data sheet
- Power
- Not required (Passive)
- Transmission distance
- HDTVI 250/250/150 m (720p/1080p/4 Mp), HDCVI 400/250/150 m (720p/1080p/4 Mp) AHD 350/200 m (720p/1080p)
- Power supply
- Not required (Passive)
- Output Impedance
- 100 Ohm
- Number of channels
- 1 channel
- Twisted pair connector
- Two pin connector
- Cable category
- UTP category 5/5E/6
- Video Input/Output
- BNC (male)
- Crosstalk
- 60 dB
- Input impedance
- 75 Ohm
SAFIRE UTP passive transceiver - Optimised for HDTVI, HDCVI and AHD - 1 video channel - Passive, connector of 2 pins - Range: 150 ~ 400 m - 2 units
