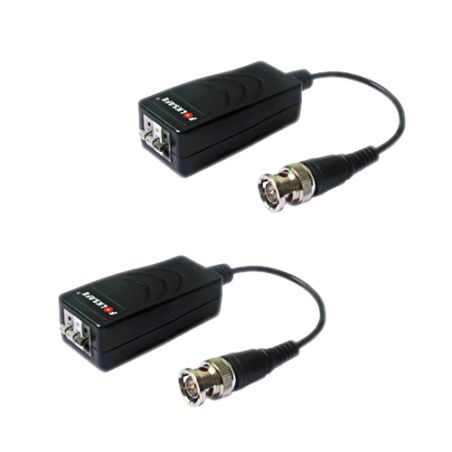

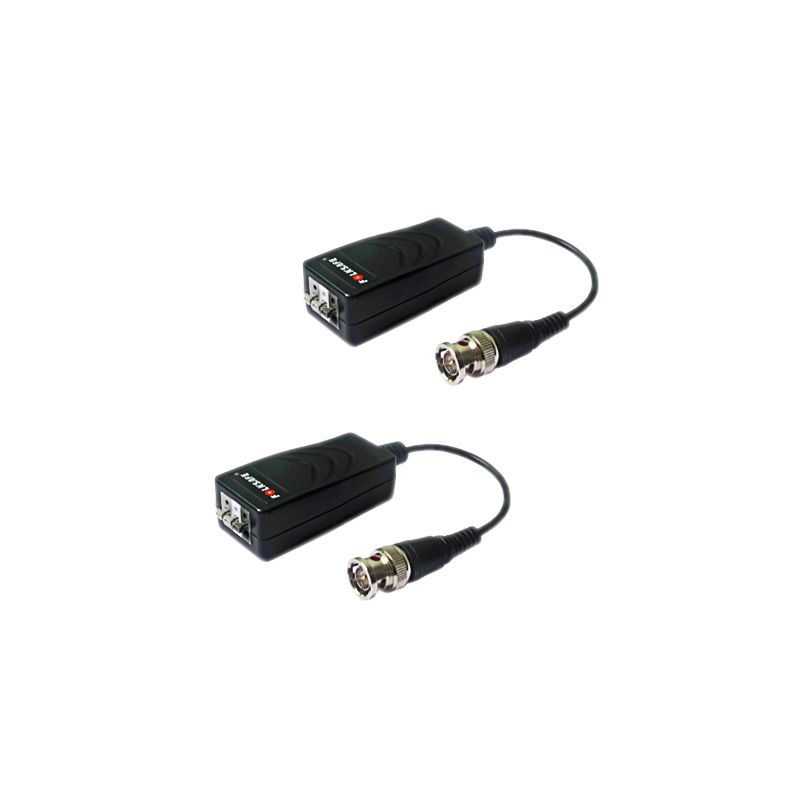

BA613P-HAC - Passive twisted pair transceiver, 4N1 (HDTVI / HDCVI /…
Passive twisted pair transceiver - 4N1 (HDTVI / HDCVI / AHD / CVBS) - 1 video channel - Passive, connector of 2 pins - Range: 190 ~ 440 m - 2 units
€22.75
€35.00
Save 35%
Tax included
Reference
BA613P-HAC
Brand
Branded
BA613P-HAC - Passive twisted pair transceiver, 4N1 (HDTVI / HDCVI /…
€22.75
€35.00
Save 35%
- Balun (transceiver)
- Optimized for 4N1 (HDTVI / HDCVI / AHD / CVBS)
- 1 channel
- Passive
- BNC/UTP 2 pins
- Video
- Maximum range HDTVI 250/230 m (720p/1080p), HDCVI 440/240 m (720p/1080p) and AHD 330/320 m (720p/1080p)
- 2 units (transmitter and receiver)
- Integrated ground isolator that eliminates interferences
Features
- Passive twisted pair transceiver
- 4N1 (HDTVI / HDCVI / AHD / CVBS)
- 1 video channel
- Passive, connector of 2 pins
- Range: 190 ~ 440 m
- 2 units
Specs
| Number of channels | 1 channel |
| Power | Not required (Passive) |
| Video Input/Output | BNC (male) |
| Transmission distance | HDTVI 250/230 m (720p/1080p) HDCVI 440/240 m (720p/1080p) AHD 330/320 m (720p/1080p) |
| Twisted pair connector | Connector with 2 pins |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output Impedance | 100 Ohm |
| Cable category | UTP category 5E/6 |
Package content
- Pair of passive HD transceivers
Data sheet
- Power
- Not required (Passive)
- Transmission distance
- HDTVI 250/230 m (720p/1080p) HDCVI 440/240 m (720p/1080p) AHD 330/320 m (720p/1080p)
- Power supply
- Not required (Passive)
- Output Impedance
- 100 Ohm
- Number of channels
- 1 channel
- Twisted pair connector
- Connector with 2 pins
- Cable category
- UTP category 5E/6
- Video Input/Output
- BNC (male)
- Crosstalk
- 60 dB
- Input impedance
- 75 Ohm
Passive twisted pair transceiver - 4N1 (HDTVI / HDCVI / AHD / CVBS) - 1 video channel - Passive, connector of 2 pins - Range: 190 ~ 440 m - 2 units
