BA614P-HAC - Video Balun for HDTVI / HDCVI / AHD / CVBS, 4 passive…
search
  • BA614P-HAC - Video Balun for HDTVI / HDCVI / AHD / CVBS, 4 passive…

BA614P-HAC - Video Balun for HDTVI / HDCVI / AHD / CVBS, 4 passive…

Video Balun for HDTVI / HDCVI / AHD / CVBS - 4 passive channels - Includes 4 BA612P-HAC - BNC and RJ45 connection - Range: 180 ~ 440 m
€19.50 €30.00 Save 35%
Tax included
Reference BA614P-HAC
Brand Branded
Quantity
Available in 24/48h

Free shipping
BA614P-HAC - Video Balun for HDTVI / HDCVI / AHD / CVBS, 4 passive…

BA614P-HAC - Video Balun for HDTVI / HDCVI / AHD / CVBS, 4 passive…

€19.50 €30.00 Save 35%

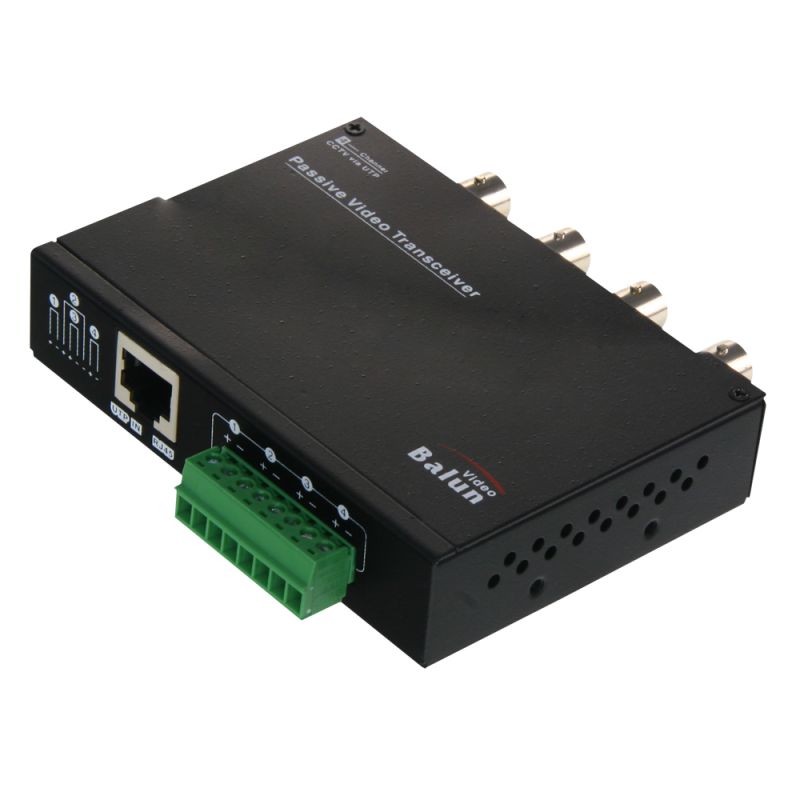

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.

It also has a connector for UTP cable, which works with RJ45 or with clamps for 4 contacts +/-, for a wired cable connection.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

  • HDTVI 720p - 200 m
  • HDTVI 1080p - 300 m
  • HDCVI 720p - 400 m
  • HDCVI 1080p - 200 m
  • AHD 720p - 300 m
  • AHD 1080p - 300 m
  • AHD 4 MP - 300 m
  • HDTVI 4 MP 100 m
  • HDCVI 4 MP 200 m
  • HDTVI 4K 100 m
  • HDCVI 4K 200 m

Rack mount possibility 19".

Features

  • Video Balun for HDTVI / HDCVI / AHD / CVBS
  • 4 passive channels
  • Includes 4 BA612P-HAC
  • BNC and RJ45 connection
  • Range: 180 ~ 440 m

Specs

Input Tx / Output Rx 4 female BNC connectors for video
Output Tx / Input Rx 1 connector RJ45 or 4 connectores with clamps for the UTP-cable CAT5
Bandwidth DC up to 42 MHz
Video format NTSC, PAL, SECAM
Impedance BNC 75 Ω, UTP 100 Ω
Transmission distance HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K)
AHD 300/200/200 m (720p/1080p/4 MP), CVBS 300 m
Power Passive (not required)
Dimensions 25 (H) x 102 (W) x 90 (D) mm
Weight 200 g

Package content

  • Balun 4 channels
  • Installation material
  • 4 baluns BA612P-HAC
  • Instructions

Data sheet

Weight
200 g
200 g
Power
Passive (not required)
Transmission distance
HDTVI 200/200/200/200 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/200/200 m (720p/1080p/4 MP), CVBS 300 m
Dimensions
25 (H) x 102 (W) x 90 (D) mm
Power supply
Passive (not required)
Impedance
BNC 75 Ω, UTP 100 Ω
Input Tx / Output Rx
4 female BNC connectors for video
Output Tx / Input Rx
1 connector RJ45 or 4 connectores with clamps for the UTP-cable CAT5
Bandwidth
DC up to 42 MHz
Video format
NTSC, PAL, SECAM
