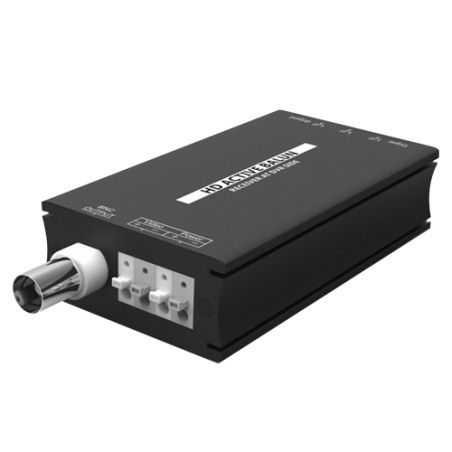

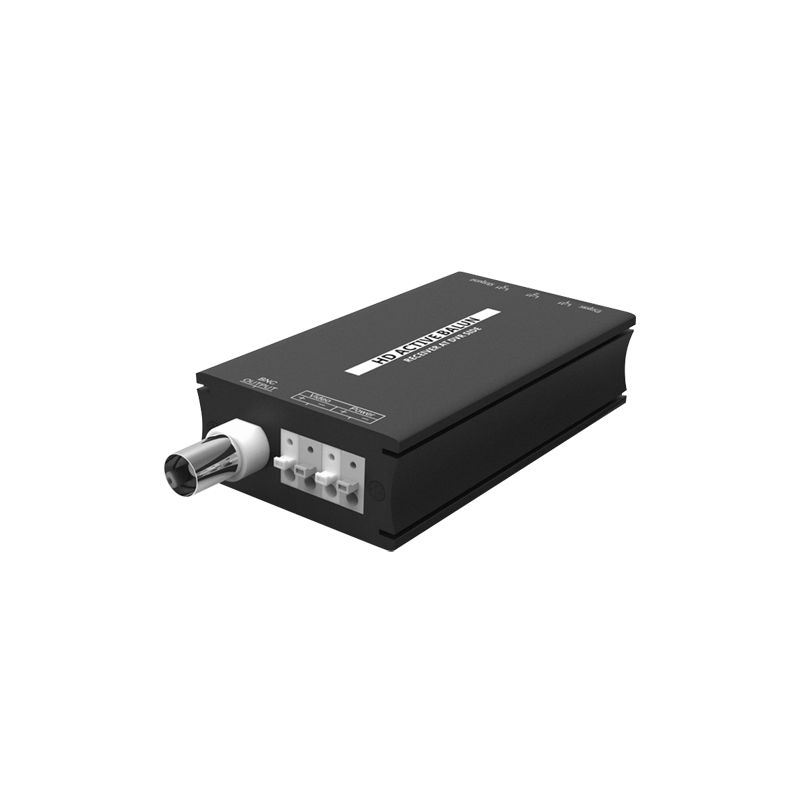

BA615A-RX - Active transceiver, Optimized for HDTVI / HDCVI / AHD,…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Active transceiver - Optimized for HDTVI / HDCVI / AHD - 1 video channel - BNC/UTP 4 pins - Range: 400 ~ 700 m - Receiver / Compatible with BA615A-TX

€29.90 €46.00 Save 35%

Tax included

Reference BA615A-RX

Brand Branded

€29.90 €46.00 Save 35%

Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD
1 channel
Active
Power 12VVDC
BNC/UTP 4 pins
Video
Maximum range 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
1 receiver
Compatible with BA615A-TX

Features

Number of channels	1 channel
Power	12VDC / 1A (Passive)
Video Input/Output	BNC (male)
Transmission distance	400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
Twisted pair connector	Connector with 4 pins
Crosstalk	60 dB
Input impedance	75 Ohm
Output Impedance	100 Ohm
Cable category	UTP category 5e/6

Power: 12VDC / 1A (Passive)
Transmission distance: 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
Power supply: 12VDC / 1A (Passive)
Output Impedance: 100 Ohm
Number of channels: 1 channel
Twisted pair connector: Connector with 4 pins
Cable category: UTP category 5E/6
Video Input/Output: BNC (male)
Crosstalk: 60 dB
Input impedance: 75 Ohm
