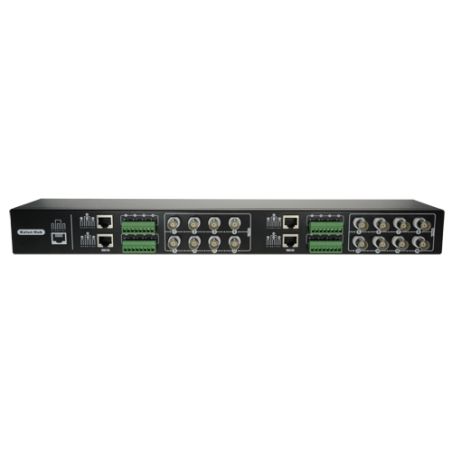

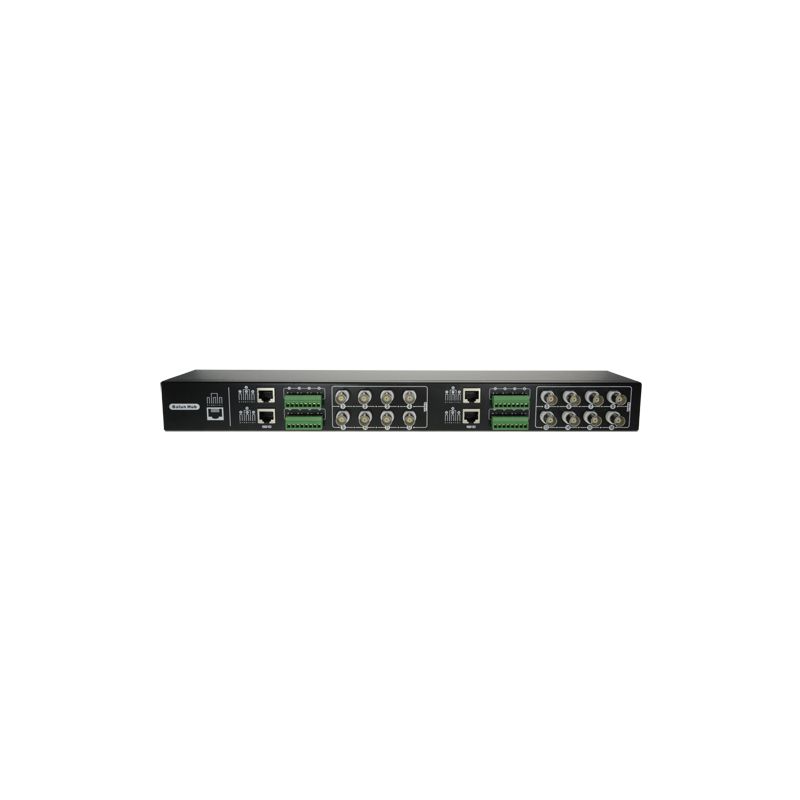

Passive video transceiver by twisted pair of 16 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.

The adapter has 16 BNC connectors for connecting to a DVR. Includes 16 individual baluns BA612P-HAC to connect to each camera.

Moreover, it has 4 connectors for UTP cable, either by two RJ45 or by 4 clamps of 4 +/- contacts, for connection of the cable by wires.

The maximum length between the end that connects to the camera and the end that connects to the video output is: HDTVI 190/190/180/180 m (720p/1080p/5Mpx/ 4K), HDCVI 440/230/230/190 m (720p/1080p/4Mpx/ 4K) and AHD 320/250/200 m (720p/1080p/5Mpx).

Rack mount possibility 19".

Features

• Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS)
• 16 passive channels
• Includes 16 BA612P-HAC
• BNC and RJ45 connection
• Range: 180 ~ 440 m

Specs

Package content

• Balun 16 channels
• Installation material
• 16 baluns BA612P-HAC
• Instructions
