HDMI-EXT-PLC - HDMI Extender via electricity grid, Transmitter and…
search
  • HDMI-EXT-PLC - HDMI Extender via electricity grid, Transmitter and…

HDMI-EXT-PLC - HDMI Extender via electricity grid, Transmitter and…

HDMI Extender via electricity grid - Transmitter and receiver - Range 300 m - Up to 1080p - HDMI output Loop in TX - Remote control Extender
€279.50 €430.00 Save 35%
Tax included
Reference HDMI-EXT-PLC
Brand Branded
Quantity
Out-of-Stock

Free shipping

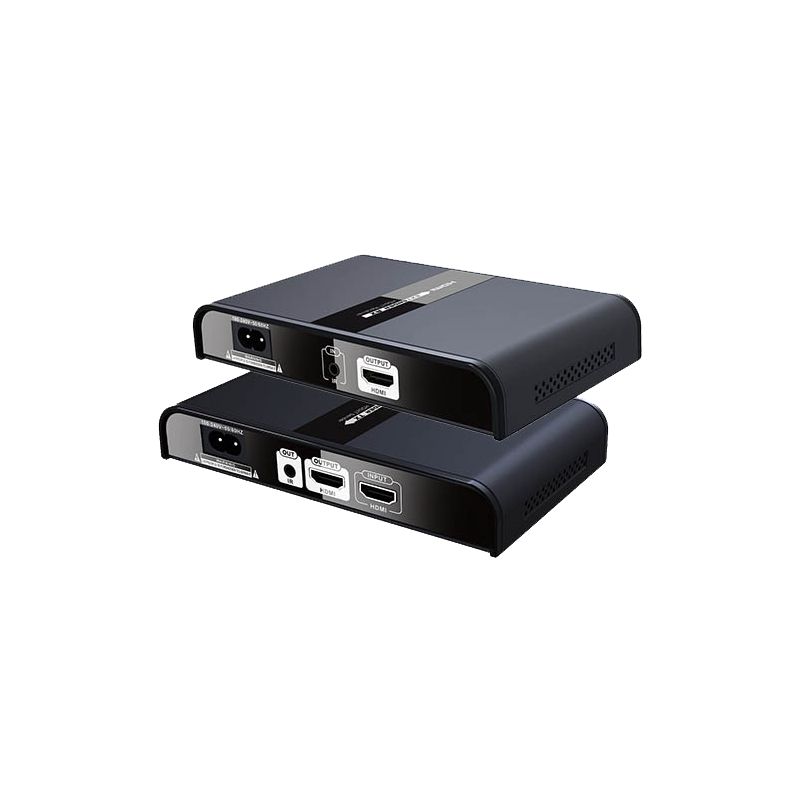

HDMI signal extender through the electricity network (PLC).

Device formed 1 transmitter TX and 1 receiver RX for communication PLC (Power Line Communications), which allows to extend a HDMI connection via the electric power network sharing panel. Maximum length of line of 300 m. HDbitT transmission protocol. Automatic matching, fully Plug&Play.

Each transmitter TX supports up to 4 RX receivers, so that it serves as signal multiplier at different points away from each other. HDMI Loop output at the transmitter TX which doubles the original signal. It incorporates infrared receivers to transmit the signal of remote controls remotely.

It supports resolutions up to 1080p. Reset button and link and transmission LED indicators.

The best professional solution for viewing, recording and control of DVRs and monitors in CCTV installations where it is difficult to have a wired connection. In turn, it is very useful in multimedia applications both professional (commercial video installations) and domestic (HD TV and video game consoles).

Features

  • HDMI Extender via electricity grid
  • Transmitter and receiver
  • Range 300 m
  • Up to 1080p
  • HDMI output Loop in TX
  • Remote control Extender

Specs

Maximum distance 300 m of line
Protocol HDbitT
Signal Type HDMI (including audio and IR signal)
Resolution 480p/576p/720p/1080p
Power AC 100~240 V
Dimensions 2 x 150 (W) x 25 (H) x 92.7 (D) mm
Weight 2 x 330 g

Package content

  • - TX Transmitter
  • - Receiver RX
  • - 2 x IR Extender
  • - 2 x Power cable
  • - User instructions

Data sheet

Weight
2 x 330 g
2 x 330 g
Power
AC 100~240 V
Resolution
480p/576p/720p/1080p
Dimensions
2 x 150 (W) x 25 (H) x 92.7 (D) mm
Power supply
AC 100~240 V
Maximum distance
300 m of line
Signal Type
HDMI (including audio and IR signal)
Protocol
HDbitT
