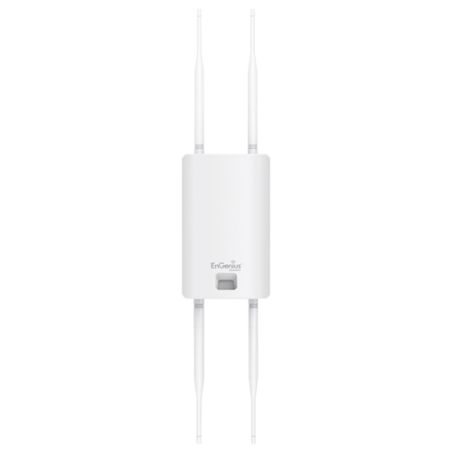

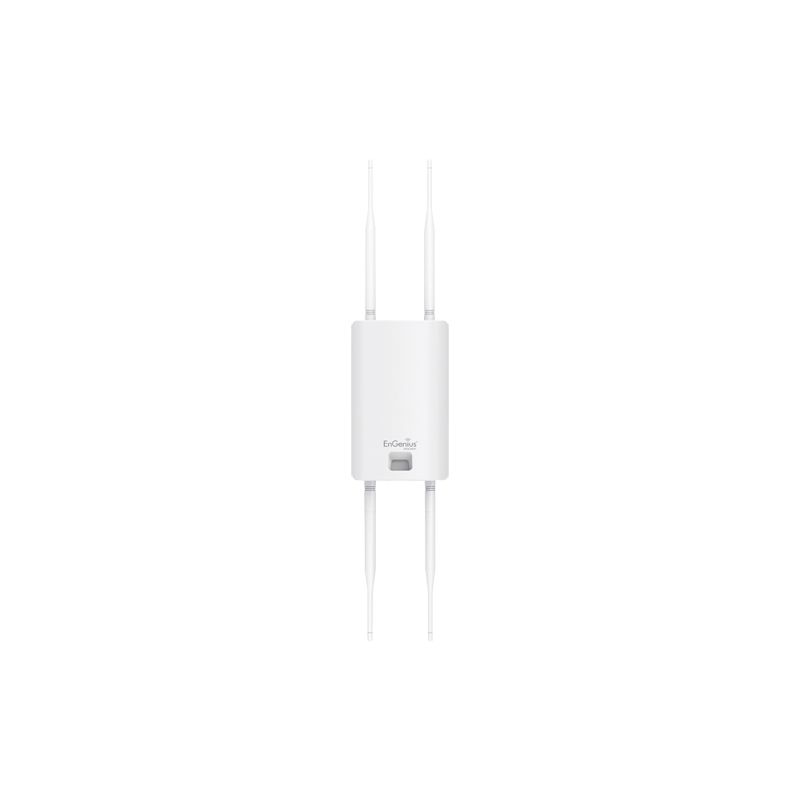

Engenius ENS620EXT - Omnidirectional wireless link, Frequency 2.4 and 5…
Omnidirectional wireless link - Frequency 2.4 and 5 GHz - Supports 802.11 ac/a/b/g/n - IP55, suitable for exterior - Power 400 mW - Compatible with IP cameras and DVR
€214.50
€330.00
Save 35%
Tax included
Reference
ENS620EXT
Brand
Engenius
Engenius ENS620EXT - Omnidirectional wireless link, Frequency 2.4 and 5…
€214.50
€330.00
Save 35%
- EnGenius
- Wifi 802.11ac high power radio in 5GHz & 2,4GHz bands
- IP55, suitable for exterior
- It can be configured either as a client to provide camera/DVR Wifi connectivity or as access point itself
- Compatible with 802.11 ac, for connections up to 400Mbps in 2,4GHz & 867Mbps in 5GHz
- MIMO Technology with four omnidirectional antennas each of 5dB for a coverage of 360º
- Temperature range from -20 to 60 ºC
Features
- Omnidirectional wireless link
- Frequency 2.4 and 5 GHz
- Supports 802.11 ac/a/b/g/n
- IP55, suitable for exterior
- Power 400 mW
- Compatible with IP cameras and DVR
Specs
| Wireless Standard | 802.11 ac |
| Frequencies | 2.4GHZ & 5.15GHz~5.85GHz |
| Transmission speed | 400Mbps for 2.4GHz & 867Mbps for 5GHz |
| Modulations | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Channel frequencies | 20/40/80 MHz |
| Maximum power transmission | 27 dBm |
| Maximum sensitivity | 6.5 to 867 Mbps (MCS0 to MCS9) |
| Integrated antenna | 5dBi 4 omnidirectional antennas |
| Operating modes | Access point, Client bridge, WDS bridge, WDS AP, WDS ST, Client Router |
| Security | WEP/WPA2/SSID hidden/filtering by MAC |
| Networking | DHCP, VPN, PPTP, PPPoE, spanning tree, bandwidth reservation |
| Management | Configuration via web interface |
| Power | PoE (own design) |
| Operating temperature | -20ºC – 70 º C |
| Weight | 317 gr |
Package content
- Wireless link
- Four external antennas
- PoE injector
- Installation material
- Power adapter AC/DC 24 V
- User instructions
Data sheet
- Weight
- 317 gr
317 gr - Power
- PoE (own design)
- Operating temperature
- -20ºC – 70 º C
- Power supply
- PoE (own design)
- Wireless Standard
- 802.11 ac
- Frequencies
- 2.4GHZ & 5.15GHz~5.85GHz
- Maximum power transmission
- 27 dBm
- Maximum sensitivity
- 6.5 to 867 Mbps (MCS0 to MCS9)
- Operating modes
- Access point, Client bridge, WDS bridge, WDS AP, WDS ST, Client Router
- Security
- WEP/WPA2/SSID hidden/filtering by MAC
- Management
- Configuration via web interface
- Transmission speed
- 400Mbps for 2.4GHz & 867Mbps for 5GHz
- Integrated antenna
- 5dBi 4 omnidirectional antennas
- Networking
- DHCP, VPN, PPTP, PPPoE, spanning tree, bandwidth reservation
- Modulations
- BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- Channel frequencies
- 20/40/80 MHz
Omnidirectional wireless link - Frequency 2.4 and 5 GHz - Supports 802.11 ac/a/b/g/n - IP55, suitable for exterior - Power 400 mW - Compatible with IP cameras and DVR
