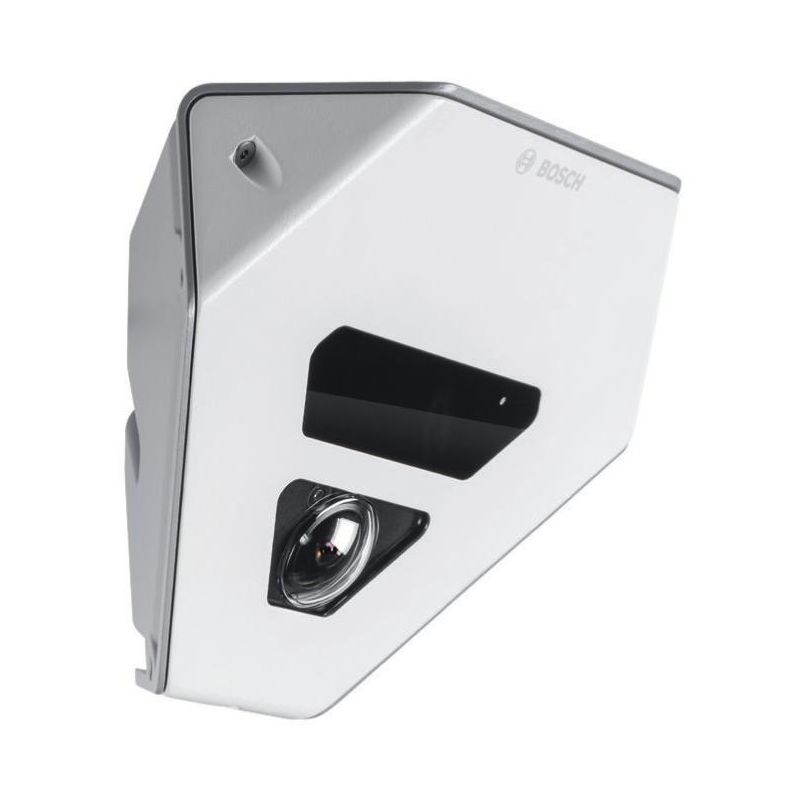

Bosch NCN-90022-F1 Dome IP security camera Outdoor 1440 x 1080 pixels

The FLEXIDOME corner 9000 MP is a vandal-resistant, corner-mount camera featuring a no-grip, anchor-free design. The high resolution 1440 x 1080p images and the integrated infrared illumination allow 24/7 effective professional networked surveillance in high risk, vandal-prone applications under any ambient lighting conditions, even completely dark rooms. The ultra-wide lens enables the camera to view the entirety of a small room, including the floor beneath the camera. The camera is impossible to grip or hang
from, providing maximum safety for applications such as waiting rooms, elevators and psychiatric care
rooms.

- Corner-mount, no-grip design for maximum safety
- 1.5 MP resolution for sharp images
- Views an entire small room, including directly beneath
- 940 nm illuminator for covert night vision to 9 m (30 ft)
- IP65 water resistance

Bosch NCN-90022-F1. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Product colour: Grey, Form factor: Dome, Protection features: Vandal proof. Lens viewing angle, horizontal: 121°, Lens viewing angle, vertical: 91°, Camera shutter type: Electronic. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2 mm

Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Day/night mode	Y
Alarm input/output	Y
Design
Form factor	Dome
Product colour	Grey
Protection features	Vandal proof
International Protection (IP) code	IP65
Camera
Lens viewing angle, horizontal	121°
Lens viewing angle, vertical	91°
Camera shutter type	Electronic
Camera shutter speed	1/30 - 1/15000 s
Image sensor
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Sensor type	CMOS
Lens system
Fixed focal length	2 mm
Night vision
Night vision	Y
Night vision distance	9 m
LED type	IR
Number of illumination LEDs	3
Infra-red wavelength	940 nm
Video
Maximum resolution	1440 x 1080 pixels
Video formats supported	H.264, M-JPEG
Supported video modes	1080p
Frame rate	30 fps
Audio
Audio system full duplex	Y
Audio formats supported	AAC
Audio detection	Y
Network
Ethernet LAN	Y
Supported network protocols	IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB‑II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication
Cabling technology	10/100Base-T(X)
Storage
Card reader integrated	Y
Compatible memory cards	MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power source type	PoE
AC input voltage	24 V
Power consumption (max)	8.4 W
DC output voltage	+12V, +48V
Power over Ethernet (PoE)	Y
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	240 mm
Depth	169 mm
Height	146 mm
Weight	1.84 kg
