  • -35%
Ajax AJ-RELAY - Wireless remote control relay, Dry contact (voltage…
search
  • Ajax AJ-RELAY - Wireless remote control relay, Dry contact (voltage…

Ajax AJ-RELAY - Wireless remote control relay, Dry contact (voltage…

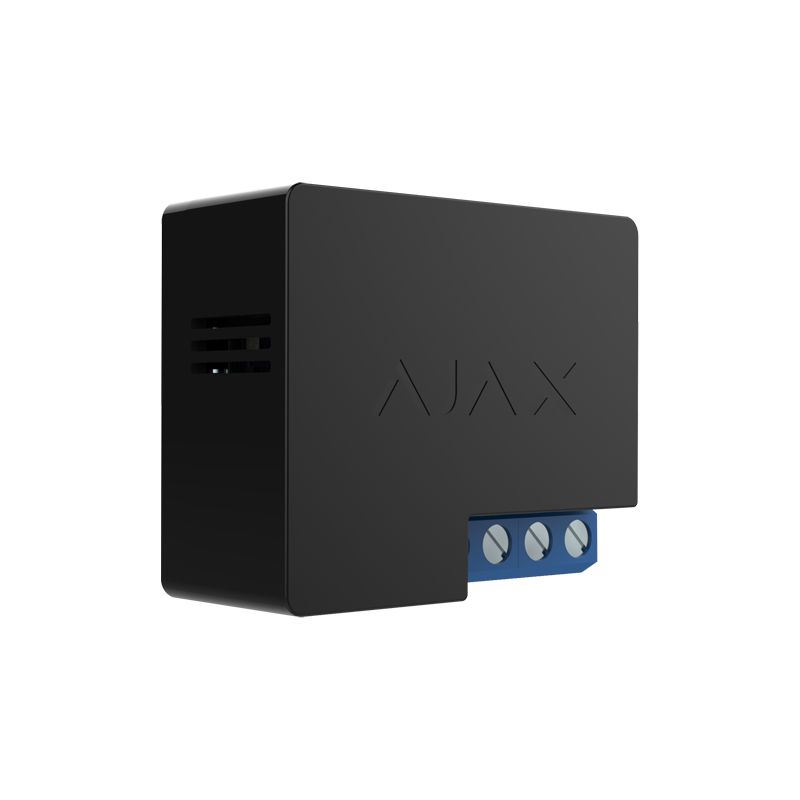

Wireless remote control relay - Dry contact (voltage free) - 868MHz Jeweller Wireless - Range up to 1000 m - Power input 7~24VDC - Installation in standard mechanism boxes
€34.71 €53.40 Save 35%
Tax included
Reference AJ-RELAY
Brand Ajax
Quantity
Available Now

Free shipping
Ajax AJ-RELAY - Wireless remote control relay, Dry contact (voltage…

Ajax AJ-RELAY - Wireless remote control relay, Dry contact (voltage…

€34.71 €53.40 Save 35%

You might also like

  • Ajax
  • Wireless remote control relay
  • Dry contact
  • Bidirectional
  • 868MHz Jeweller Wireless
  • Range in open space 1000 m
  • Input power 7~24 V DC
  • Maximum capacity up to 3 kW
  • Designed to be installed in standard mechanism boxes such as for example wall switches
  • Black colour

Features

  • Wireless remote control relay
  • Dry contact (voltage free)
  • 868MHz Jeweller Wireless
  • Range up to 1000 m
  • Power input 7~24VDC
  • Installation in standard mechanism boxes

Specs

Brand Ajax
Relay type Dry contact (voltage free)
Transmission distance ≤ 1000 m in open space
Frequency 868 MHz Jeweller
Power supply input DC 7 V - 24 V 50/60 Hz
Maximum current 5 A a 36 V DC, 13 A a 230 V AC
Maximum power Up to 3 kW
Temp. operation 0º C ~ 64º C
Dimensions 38 (H) x 25 (W) x 18 (D) mm
Weight 32 g

Package content

  • Wireless remote control relay
  • Instructions Manual

Data sheet

Weight
32 g
32 g
Frequency
868 MHz Jeweller
Temp. operation
0º C ~ 64º C
Transmission distance
≤ 1000 m in open space
Dimensions
38 (H) x 25 (W) x 18 (D) mm
Power supply input
DC 7 V - 24 V 50/60 Hz
Relay type
Dry contact (voltage free)
Maximum current
5 A a 36 V DC, 13 A a 230 V AC
Maximum power
Up to 3 kW
