• -35%

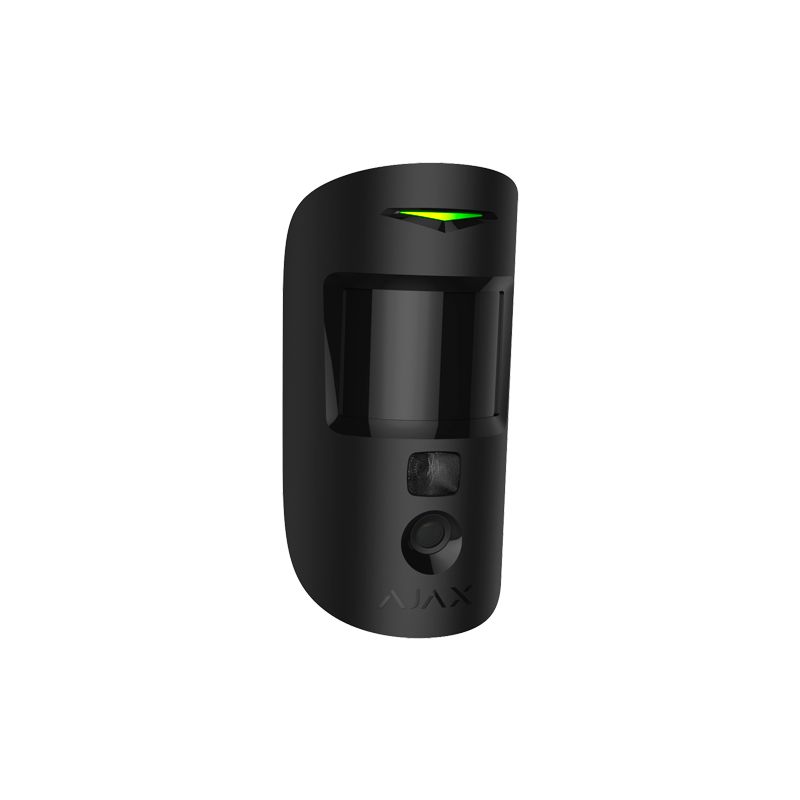

Ajax AJ-MOTIONCAM-B - Fotodetector PIR bidireccional, Certificado grado 2,…
search
  • Ajax AJ-MOTIONCAM-B - Fotodetector PIR bidireccional, Certificado grado 2,…

Ajax AJ-MOTIONCAM-B - Two-way PIR Photo Detector, Grade 2 approved, 868MHz…

Two-way PIR Photo Detector - Grade 2 approved - 868MHz Jeweller Wireless - Sending images up to VGA (640x480) - Up to 5 images per detection - Anti-masking / Detection range 12 m
€157.03 €241.58 Save 35%
Tax included
Reference AJ-MOTIONCAM-B
Brand Ajax
Quantity
Available in 24/48h

Free shipping
Ajax AJ-MOTIONCAM-B - Fotodetector PIR bidireccional, Certificado grado 2,…

Ajax AJ-MOTIONCAM-B - Two-way PIR Photo Detector, Grade 2 approved, 868MHz…

€157.03 €241.58 Save 35%

You might also like

  • Ajax
  • Volumetric pet immune PIR photodetector
  • Grade 2 approved
  • Bidirectional
  • 868MHz Jeweller Wireless
  • Internal antenna range open space 1700 m
  • Movement detection indicator
  • Detection: Range 12m / H: 88.5º / V: 80º
  • Tamper-resistant opening
  • Pet Proof ≤ 20Kg
  • Maximum resolution VGA
  • Sending up to 5 images for each detection
  • Power supply 2 batteries CR123A 3.0 V (estimated duration 4 years)
  • Interior use
  • Includes mounting bracket
  • Compatible with Ajax Hub 2
  • Black colour

Features

  • Two-way PIR Photo Detector
  • Grade 2 approved
  • 868MHz Jeweller Wireless
  • Sending images up to VGA (640x480)
  • Up to 5 images per detection
  • Anti-masking / Detection range 12 m

Specs

Brand Ajax
Technology Volumetric PIR with photo camera
Security grade Grade 2
PIR lens 24 zones and 6 planes
Detection range 12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency 868 MHz Jeweller and Wings (sending images)
Transmission distance ≤ 1700 m in open space
Pet immunity ≤ 20 kg, ≤ 50 cm
Masking No
Sensitivity Adjustable. 3 levels (low, medium and high)
Image resolution Up to VGA (640 x 480)
Number of images Up to 5 images per detection
Sending images Sending and receiving images in less than a minute
Infrared lighting IR for night mode
LEDs indication Alarm, tamper, signal
Battery 2 CR123A3.0 v-batteries (life up to 4 years)
Compatibility AJ-HUB2-W/B
Temp. operation 0º C ~ 40º C
Housing material ABS plastic
Dimensions (without bracket) 135 (H) x 70 (W) x 60 (D) mm

Package content

  • Indoor PIR Photodetector
  • Instructions Manual
  • Mounting material

Data sheet

Technology
PIR volumétrico con cámara
Volumetric PIR with photo camera
Detection range
12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency
868 MHz Jeweller and Wings (sending images)
868 MHz Jeweller y Wings (envío de imágenes)
Pet immunity
≤ 20 kg, ≤ 50 cm
Masking
No
Sensitivity
Adjustable. 3 levels (low, medium and high)
LEDs indication
Alarm, tamper, signal
Battery
2 CR123A3.0 v-batteries (life up to 4 years)
2 batteries CR123A 3.0 V (up to 4 years battery life)
2 pilas CR123A 3.0 V (duración hasta 4 años)
Temp. operation
0º C ~ 40º C
Security grade
Grade 2
Transmission distance
≤ 1700 m in open space
Housing material
ABS plastic
PIR lens
24 zones and 6 planes
Dimensions (without support)
135 (Al) x 70 (An) x 60 (Fo) mm
Compatibility
AJ-HUB2-W/B
Infrared lighting
IR for night mode
IR para modo nocturno
Image resolution
Up to VGA (640 x 480)
Resolución imágenes
Hasta VGA (640 x 480)
Número de imágenes
Hasta 5 imágenes por cada detección
Envío de imágenes
Envío y recepción de imágenes en menos de un minuto
Dimensions (without bracket)
135 (H) x 70 (W) x 60 (D) mm
Number of images
Up to 5 images per detection
Sending images
Sending and receiving images in less than a minute
