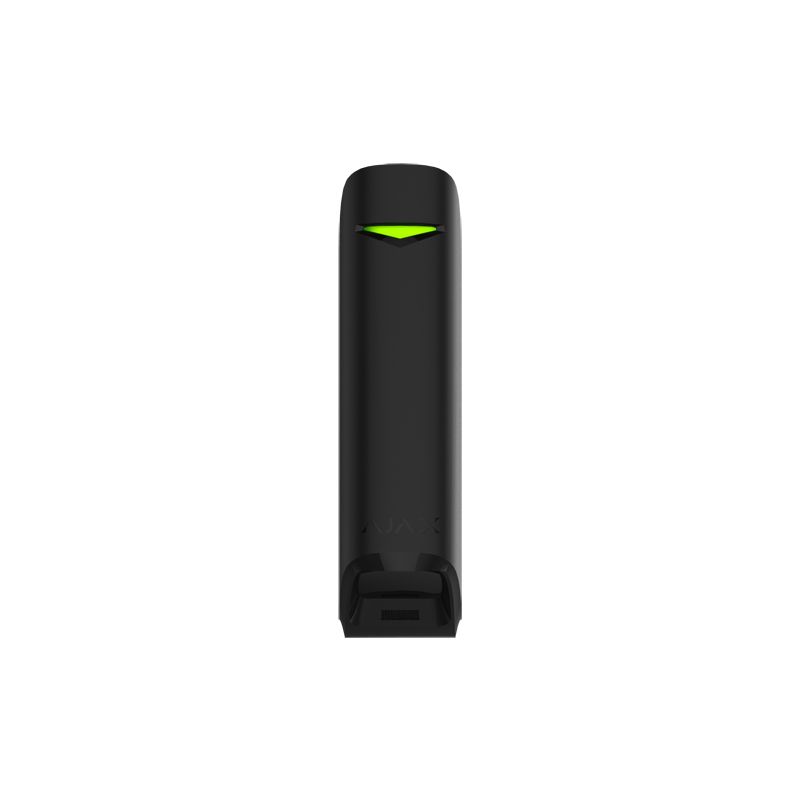

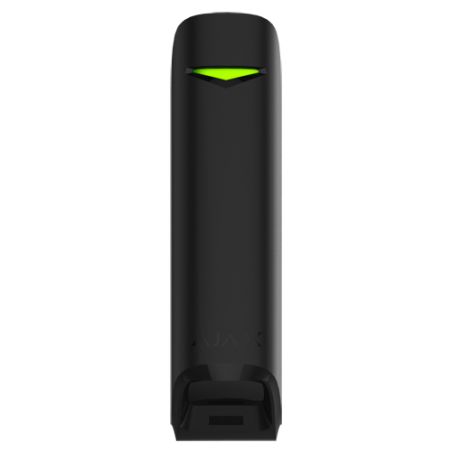

  • Ajax AJ-CURTAINPROTECT-B - Detector PIR tipo cortina Ajax, Inalámbrico 868 MHz…

Ajax AJ-CURTAINPROTECT-B - Ajax PIR Curtain Detector, 868MHz Jeweller Wireless,…

Ajax PIR Curtain Detector - 868MHz Jeweller Wireless - Grade 2 approved - Configurable detection range from 6 to 15 m - Reach in open space 1700 m - Interior use
€57.02 €87.73 Save 35%
Tax included
Reference AJ-CURTAINPROTECT-B
Brand Ajax
Quantity
Available in 24/48h

Free shipping
Ajax AJ-CURTAINPROTECT-B - Detector PIR tipo cortina Ajax, Inalámbrico 868 MHz…

Ajax AJ-CURTAINPROTECT-B - Ajax PIR Curtain Detector, 868MHz Jeweller Wireless,…

€57.02 €87.73 Save 35%

You might also like

  • Ajax
  • Curtain detector
  • Grade 2 approved
  • Bidirectional
  • 868MHz Jeweller Wireless
  • Double PIR curtain type
  • Detection: Range from 6 to 15 m / 6º H / 90º V
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1700 m
  • Power supply 1 battery CR123A 3.0 V (estimated duration 3 years)
  • Interior use
  • Includes mounting bracket
  • Black colour

Features

  • Ajax PIR Curtain Detector
  • 868MHz Jeweller Wireless
  • Grade 2 approved
  • Configurable detection range from 6 to 15 m
  • Reach in open space 1700 m
  • Interior use

Specs

Brand Ajax
Technology Double PIR curtain type
Detection range 6~15 m / 6º H / 90º V / Installation 2.4 m
Frequency 868 MHz Jeweller
Transmission distance ≤ 1700 m in open space
Anti-masking Not available
Sensitivity Adjustable. 3 levels (high, medium, low)
Tamper-resistant opening Available
LEDs indication Alarm, tamper, signal
Power 1 battery CR123A 3.0 V (approximate life time 3 years)
Temp. operation -10 ºC ~ 40 ºC
Degree of protection IP54
Bracket Includes normal bracket and L-bracket
Dimensions 134 (H) x 44 (W) x 34 (D) mm

Package content

  • PIR Detector curtain type
  • Instructions Manual
  • Mounting material
  • Two brackets

Data sheet

Power
1 battery CR123A 3.0 V (approximate life time 3 years)
Grado de protección
IP54
Technology
Double PIR curtain type
Detection range
6~15 m / 6º H / 90º V / Instalación 2.4 m
6~15 m / 6º H / 90º V / Installation 2.4 m
11 m / 6º H / 90º V / Installation 2.4 m
Frequency
868 MHz Jeweller
Pet immunity
Available ≤ 40 cm
Masking
Available
Not available
Sensitivity
Adjustable. 3 levels (high, medium, low)
LEDs indication
Alarm, tamper, signal
Temp. operation
-10 ºC ~ 40 ºC
-25 ºC ~ 60 ºC
Degree of protection
IP54
Transmission distance
≤ 1700 m in open space
Dimensions
134 (H) x 44 (W) x 34 (D) mm
Power supply
1 battery CR123A 3.0 V (approximate life time 3 years)
Tamper-resistant opening
Available
Inmunidad a mascotas
Disponible ≤ 40 cm
Bracket
Includes normal bracket and L-bracket
