AJ-DEMOCASE-B - Ajax Demo Case, Professional alarm kit, Certificate…
Ajax Demo Case - Professional alarm kit - Certificate Grade 2 - Ethernet and GPRS communication - 868MHz Jeweller Wireless - Mobile App & Web / Black
€455.00
€700.00
Save 35%
Tax included
Reference
AJ-DEMOCASE-B
Brand
Branded
AJ-DEMOCASE-B - Ajax Demo Case, Professional alarm kit, Certificate…
€455.00
€700.00
Save 35%
You might also like

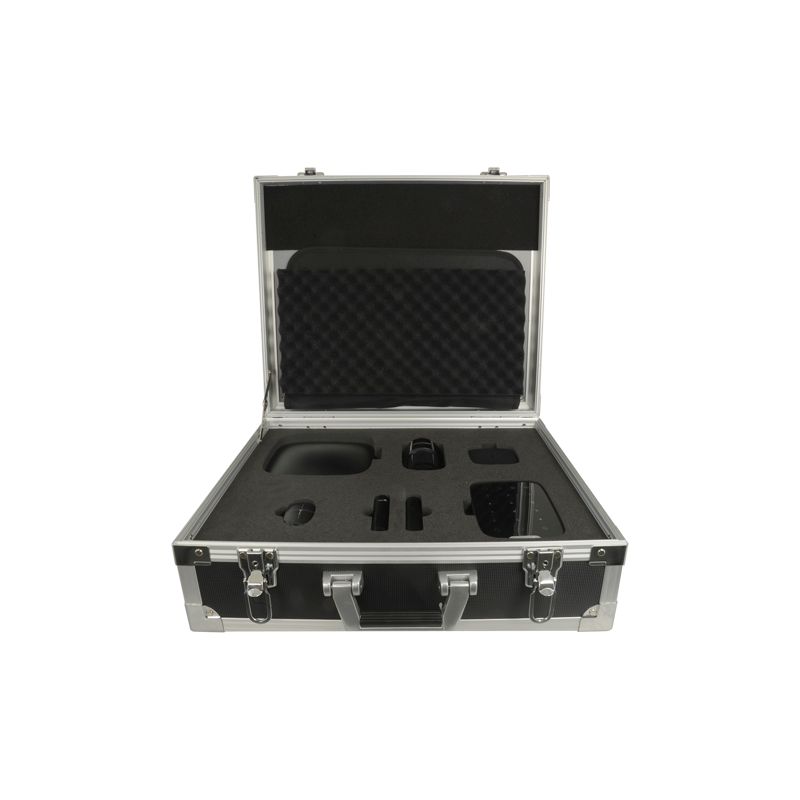

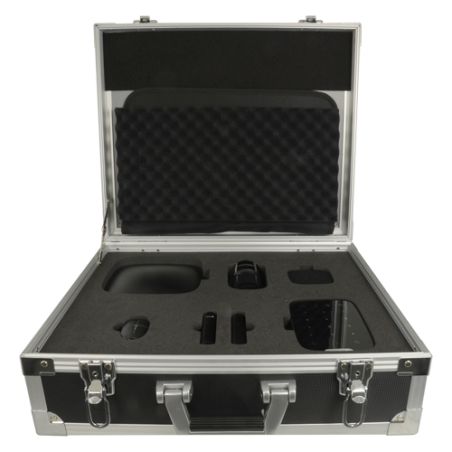

Demo case with the professional alarm system AJAX.
The briefcase is ready for doing demonstrations of the Ajax intrusion system anywhere, you only need a SIM card to connect the Hub, the brain of the system, and a smartphone to use the Ajax Systems Security APP and show the customer the main features of the alarm system that revolutionizes Europe: the simple and intuitive use of the App, the maximum configuration capacity and the control of the wireless installation.
The case has an aluminum profile and safety lock and is made with the highest standards of design and quality to ensure a high durability.
Inside we find the most frequent elements in an alarm system:
- PIR volumetric detector, pet immune, double technology
- Bidirectional
- AJ-HUB-B: Central alarm panel
- AJ-MOTIONPROTECT-B: PIR pet immune motion detector
- AJ-DOORPROTECT-B: Magnetic door/window contact.
- AJ-SPACECONTROL-B: Multi-functional bidirectional remote control.
- AJ-KEYPAD-B: Independent wireless keypad
- AJ-HOMESIREN-B: Indoor siren
The briefcase has been designed and made to serve as commercial support in those visits that require on-site demonstration, offering the client a complete vision of the system: elegant design of the different parts, complete and simple APP management, control and management of the different parts and users.
Features
- Ajax Demo Case
- Professional alarm kit
- Certificate Grade 2
- Ethernet and GPRS communication
- 868MHz Jeweller Wireless
- Mobile App & Web / Black
Specs
Control Panel |
|
| Brand | AJAX |
| Model | AJ-HUB-B |
| Security grade | Grade 2 |
| RF frequency | 868 MHz. Jeweller protocol |
| Internal security | Tamper-resistant opening |
| Internal siren | No |
| Communication | Ethernet / GPRS |
| Maximum devices | 100 |
| Number or users | Up to 10 |
| Housing material | ABS plastic |
| Power | AC 110~250 V, 50/60 Hz |
| Temp. operation | 0º C ~ 50º C |
| Dimensions | 163 (H) x 163 (W) x 36 (D) mm |
Magnetic Contact |
|
| Model | AJ-DOORPROTECT-B |
| Security grade | Grade 2 |
| Transmission distance | ≤ 2000 m (in open space) |
| Frequency | 868 MHz |
| Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
| Housing material | ABS plastic |
| Dimensions | 90 mm (D) x 20 (Ø) mm |
PIR detector |
|
| Model | AJ-MOTIONPROTECT-B |
| Technology | PIR Motion detector |
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |
| Field of detection | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Frequency | 868 MHz |
| Transmission distance | ≤ 2000 m (in open space) |
| Masking | No |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| LED indication | Alarm, tamper, signal |
| Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
| Temp. operation | 0ºC ~ 50ºC |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 110 (H) x 65 (W) x 50 (D) mm |
Remote control |
|
| Model | AJ-SPACECONTROL-B |
| Power | 1 battery CR2032 of 3 V |
| Transmission distance | ≤ 1000 m (in open space) |
| Frequency | 868 MHz |
| Battery | 1 battery CR123A 3.0 V (approximate life time 5 years) |
| Temp. operation | -20º C ~ 50º C |
| Housing material | ABS plastic |
| Dimensions | 65 (H) x 37 (W) x 10 (D) mm |
Wireless keypad |
|
| Model | AJ-KEYPAD-B |
| Security grade | Grade 2 |
| Functions | Armed, disarmed, partially armed and emergency |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility | Compatible with Ajax Hubs with firmware 2.0 or higher |
| Battery | 4 AAA batteries 1.5 V (approximate life time 2 years) |
| Housing material | ABS plastic |
| Temp. operation | -10º C ~ 50º C |
| Dimensions | 150 (H) x 102.5 (W) x 13.2 (D) mm |
Indoor siren |
|
| Model | AJ-HOMESIREN-B |
| Security grade | Grade 2 |
| Volume | 81~97 dB at 1 meter |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Battery | 2 batteries CR123A 3.0 V (approximate life time 5 years) |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 2000 m in open space |
| LED indicators | Alarm warning and sound signal when armed/disarmed |
| Internal security | Tamper-resistant back |
| Protection | IP50 |
| Dimensions | 75 (H) x 75 (W) x 27 (D)mm |
| Weight | 96 g |
Package content
- Metal demonstration briefcase
- Control panel AJ-HUB-B
- AJ-MOTIONPROTECT-B PIR Detector
- AJ-DOORPROTECT-B Magnetic contact
- AJ-SPACECONTROL-B Remote control
- Wireless keypad AJ-KEYPAD-B
- Indoor siren AJ-HOMESIREN-B
Data sheet
- Weight
- 96 g
- Power
- 1 battery CR2032 of 3 V
AC 110~250 V, 50/60 Hz - Technology
- PIR Motion detector
- Frequency
- 868 MHz
868 MHz Jeweller - Pet immunity
- ≤ 20 kg, ≤ 50 cm
- Masking
- No
- Sensitivity
- Adjustable. 3 levels (low, medium and high)
- Battery
- 1 battery CR123A 3.0 V (approximate life time 5 years)
1 battery CR123A 3.0 V (approximate life time 7 years)
2 batteries CR123A 3.0 V (approximate life time 5 years)
4 AAA batteries 1.5 V (approximate life time 2 years) - Temp. operation
- -10º C ~ 50º C
-20º C ~ 50º C
0ºC ~ 50ºC
0º C ~ 50º C - Security grade
- Grade 2
- Transmission distance
- ≤ 1000 m (in open space)
≤ 1700 m in open space
≤ 2000 m (in open space)
≤ 2000 m in open space - LED indicators
- Alarm warning and sound signal when armed/disarmed
- Housing material
- ABS plastic
- Volume
- 81~97 dB at 1 meter
- Alarm duration
- Configurable between 3 seconds and 3 minutes
- Internal security
- Tamper-resistant back
Tamper-resistant opening - Protection
- IP50
- Dimensions
- 65 (H) x 37 (W) x 10 (D) mm
75 (H) x 75 (W) x 27 (D)mm
90 mm (D) x 20 (Ø) mm
150 (H) x 102.5 (W) x 13.2 (D) mm
163 (H) x 163 (W) x 36 (D) mm - PIR lens
- 24 zones and 6 planes
- Internal siren
- No
- Power supply
- AC 110~250 V, 50/60 Hz
- RF frequency
- 868 MHz. Jeweller protocol
- Communication
- Ethernet / GPRS
- Maximum devices
- 100
- Number or users
- Up to 10
- Functions
- Armed, disarmed, partially armed and emergency
- Compatibility
- Compatible with Ajax Hubs with firmware 2.0 or higher
- Dimensions (without bracket)
- 110 (H) x 65 (W) x 50 (D) mm
- Field of detection
- 12 m / H: 88.5º / V: 80º / Installation 2.4 m
- LED indication
- Alarm, tamper, signal
Ajax Demo Case - Professional alarm kit - Certificate Grade 2 - Ethernet and GPRS communication - 868MHz Jeweller Wireless - Mobile App & Web / Black
