SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 100SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 3685 AND id_lang = 1 Chuango PIR-700 - PIR detector for ceiling, Wireless, Internal antenna,…
  • -35%
Chuango PIR-700 - PIR detector for ceiling, Wireless, Internal antenna,…
search
  • Chuango PIR-700 - PIR detector for ceiling, Wireless, Internal antenna,…

Chuango PIR-700 - PIR detector for ceiling, Wireless, Internal antenna,…

PIR detector for ceiling - Wireless - Internal antenna - Low battery LED indicator - Detection 360º, without blind angles - Power supply 2 AA batteries 1.5 V LR6
€23.40 €36.00 Save 35%
Tax included
Reference PIR-700
Brand Chuango
Quantity
Available in 24/48h

Free shipping
Chuango PIR-700 - PIR detector for ceiling, Wireless, Internal antenna,…

Chuango PIR-700 - PIR detector for ceiling, Wireless, Internal antenna,…

€23.40 €36.00 Save 35%

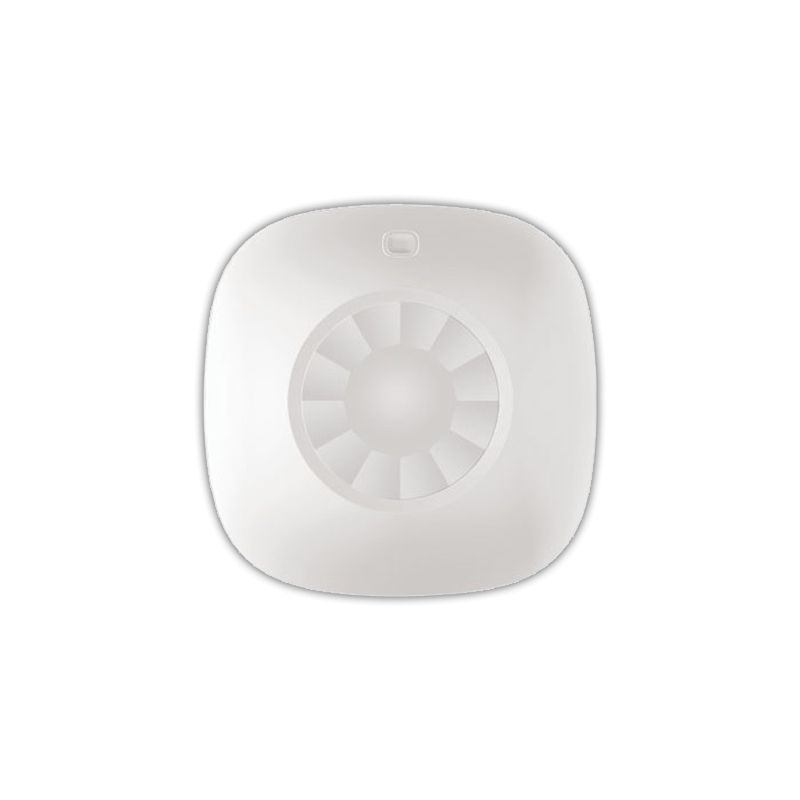

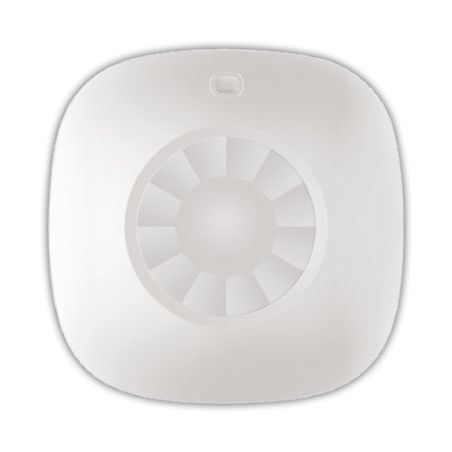

PIR motion detector for ceiling, wireless, for the alarm system. Permits to detect any intrusion to occur below the detector, sending an alert to the panel that will trigger the alarm.

Its design makes it particularly easy to install on ceilings, and the infrared beam 360º allows a complete detection without blind angle below the detector.

  • - Detection Angle 360º from the detector
  • - Wireless connection 433 MHz with the panel with a maximum reach of 80 m
  • - Integrated self-regulating temperature system and anti-turbulence air technology
  • - Recommended installation height 2.5 to 6 meters of height
  • - 6 meters detection diameter (with detector at 3.6 meters of height)
  • - Light warning when the battery is low (approximate battery life, 2 years)
  • - Low power consumption when in sleep mode due to inactivity
  • - Test button, to adjust the installation of the detector

Features

  • PIR detector for ceiling
  • Wireless
  • Internal antenna
  • Low battery LED indicator
  • Detection 360º, without blind angles
  • Power supply 2 AA batteries 1.5 V LR6

Specs


Power 2 AA batteries of 1,5 V
Detection range Diameter 6 meters (at 3.6 meters high)
Installation height 2.5 ~ 6 meters
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz (± 75 KHz)
Housing material ABS plastic
Temp. operation -10º C ~ 50º C
Relative humidity ≤ 80% (without condensation)
Dimensions 90 (H) x 90 (W) x 36,8 (D) mm
Bracket dimensions 56 (H) x 56 (W) x 8 (D) mm

Package content

- PIR detector for ceiling
- 2 AA batteries
- 2 plugs and 2 screws for mounting
- Instructions Manual

Data sheet

Power
2 AA batteries of 1,5 V
Detection range
Diameter 6 meters (at 3.6 meters high)
Frequency
433 MHz (± 75 KHz)
Temp. operation
-10º C ~ 50º C
Transmission distance
≤ 80 m (in open space)
Housing material
ABS plastic
Dimensions
90 (H) x 90 (W) x 36,8 (D) mm
Relative humidity
≤ 80% (without condensation)
Power supply
2 AA batteries of 1,5 V
Support dimensions
56 (H) x 56 (W) x 8 (D) mm
Installation height
2.5 ~ 6 meters
Bracket dimensions
56 (H) x 56 (W) x 8 (D) mm
