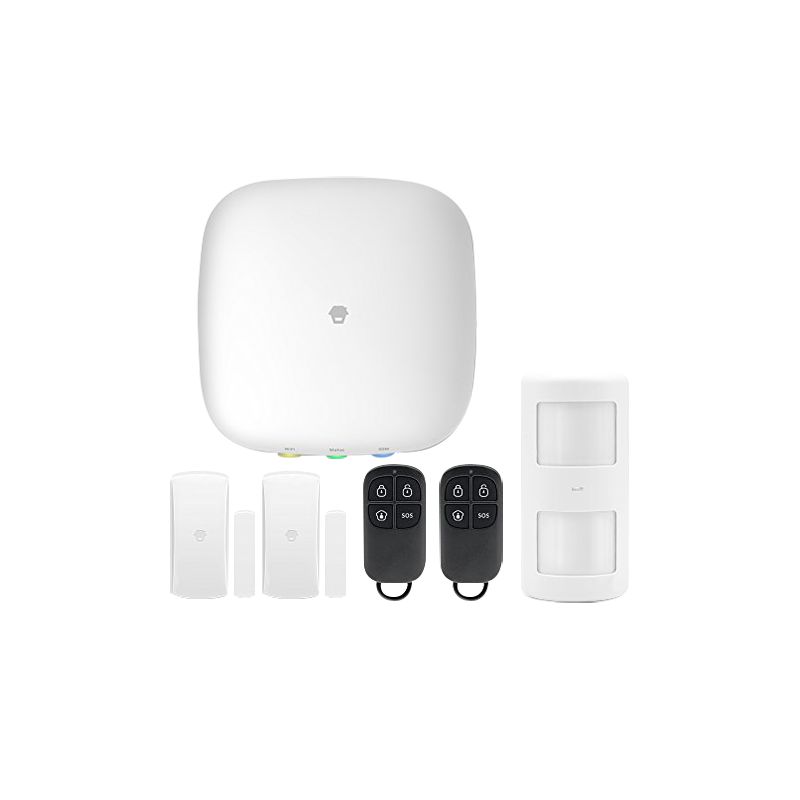

Chuango H4PLUS - Alarm and Smart Home System, Panel with Wifi module…
search
  • Chuango H4PLUS - Alarm and Smart Home System, Panel with Wifi module…

Chuango H4PLUS - Alarm and Smart Home System, Panel with Wifi module…

Alarm and Smart Home System - Panel with Wifi module and GSM / GPRS - Sending push notifications and call - 1 Volumetric PIR detector - 2 Magnetic door/window contacts - 2 remote controls
€182.00 €280.00 Save 35%
Tax included
Reference H4PLUS
Brand Chuango
Quantity
Out-of-Stock

Free shipping

You might also like

  • Chuango
  • Smart Home WiFi and GSM / GPRS alarm system
  • Wireless
  • Kit consisting of:
  • Panel (with backup battery and siren)
  • 2 remote controls
  • 2 magnetic door/window contacts
  • 1 PIR motion detector
  • 1 power supply
  • Supports wireless detectors and accessories 433 directional MHz
  • Up to 10 remote controls and 50 wireless sensors
  • Armed and disarmed remotely by application
  • Smartphone application: H4 Smarthome

Features

  • Alarm and Smart Home System
  • Panel with Wifi module and GSM / GPRS
  • Sending push notifications and call
  • 1 Volumetric PIR detector
  • 2 Magnetic door/window contacts
  • 2 remote controls

Specs

Control panel
Model H4PLUS
GSM working frequency 850/900/1800/1900 MHz
Wifi IEEE 802.11b/g/n
Power supply input AC 110V-240 V, 50/60 Hz
Power supply output DC 12 V 500 mA
Backup battery Lithium Battery: 3.7 V 800 mAh (BL-5B)
Internal siren 93 dB (Maximum volume)
Directional frequency 433 MHz
Maximum number of accessories 10 remote controls, 50 wireless sensors
Housing material ABS plastic
Temp. operation 0º C ~ 55º C
Relative humidity ≤ 80% (without condensation)
Dimensions 160 (H) x 160 (W) x 45 (D) mm
Bracket dimensions 80 (H) x 80 (W) x 10 (D) mm

Remote control
Model RC-80
Power 1 battery CR2025 of 3 V
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz
Housing material ABS plastic
Temp. operation -10º C ~ 55º C
Relative humidity ≤ 80% (without condensation)
Dimensions 135 (H) x 90 (W) x 15 (D) mm
Weight 90 g

Magnetic contact
Model DWC-102
Power 1 batteries AA 1.5 V LR6 (Included)
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz
Housing material ABS plastic
Relative humidity ≤ 80% (without condensation)
Transmitter dimensions 71 (H) x 34 (W) x 17,5 (D) mm
Magnet dimensions 51 (H) x 12 (W) x 13,5 (D) mm

PIR detector
Model PIR-910
Power 2 batteries AA 1.5 V LR6 (Included)
Detection range 8 m / 110º
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz
Housing material ABS plastic
Temp. operation -10º C ~ 55º C
Relative humidity ≤ 80% (without condensation)
Detector dimensions 108 (H) x 52 (W) x 37 (D) mm
Bracket dimensions 52 (H) x 30 (W) x 27 (D) mm

Package content

  • Control panel
  • Adapter AC/DC 12V / 500mA
  • 1 PIR Detector
  • 2 Remote controls
  • 2 Magnetic Contacts

Data sheet

Weight
90 g
Power
1 batteries AA 1.5 V LR6 (Included)
1 battery CR2025 of 3 V
2 batteries AA 1.5 V LR6 (Included)
Detection range
8 m / 110º
Frequency
433 MHz
Temp. operation
-10º C ~ 55º C
0º C ~ 55º C
Transmission distance
≤ 80 m (in open space)
Housing material
ABS plastic
Transmitter dimensions
71 (H) x 34 (W) x 17,5 (D) mm
Magnet dimensions
51 (H) x 12 (W) x 13,5 (D) mm
Dimensions
135 (H) x 90 (W) x 15 (D) mm
160 (H) x 160 (W) x 45 (D) mm
Power supply input
AC 110V-240 V, 50/60 Hz
Power supply output
DC 12 V 500 mA
Backup battery
Lithium Battery: 3.7 V 800 mAh (BL-5B)
Internal siren
93 dB (Maximum volume)
Maximum number of accessories
10 remote controls, 50 wireless sensors
Relative humidity
≤ 80% (without condensation)
Wifi
IEEE 802.11b/g/n
Support dimensions
80 (H) x 80 (W) x 10 (D) mm
GSM working frequency
850/900/1800/1900 MHz
Directional frequency
433 MHz
Detector dimensions
108 (H) x 52 (W) x 37 (D) mm
Bracket dimensions
52 (H) x 30 (W) x 27 (D) mm
80 (H) x 80 (W) x 10 (D) mm
