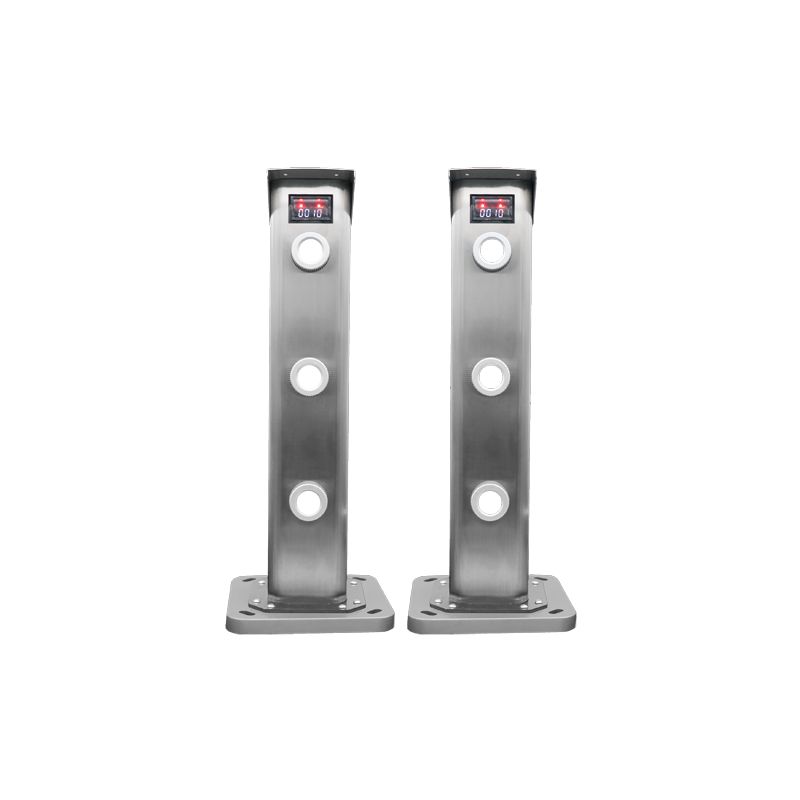

ABL-J5003 - Laser Barrier Detector, Wired | 3 beams, Max distance.…

Laser Barrier Detector - Wired | 3 beams - Max distance. The detection 500 m - Simple installation with LED and aligner (ABL-JYD) - NC/NO relay outputs - Power 12~24 VDC/VAC
€578.50 €890.00 Save 35%
Tax included
Reference ABL-J5003
Brand Branded
Quantity
Out-of-Stock

Free shipping

You might also like

  • Triple beam outdoor laser barrier
  • Wired
  • Maximum sender / receiver detection 500 m (exterior)
  • Triple adjustable lens
  • H: ±15º / V: ±15º
  • DIP Switch for programming
  • Intelligent working frequencies to avoid false alarms
  • Configurable alarm jump
  • Easy programming over LED Display
  • Stainless steel metal casing
  • Weatherproof IP67
  • Power 12~24 VDC/VAC

Features

  • Laser Barrier Detector
  • Wired | 3 beams
  • Max distance. The detection 500 m
  • Simple installation with LED and aligner (ABL-JYD)
  • NC/NO relay outputs
  • Power 12~24 VDC/VAC

Specs

Detection range 500m outdoor
Number of beams 3
Detection method Configurable: alarm by cutting one beam, two beams or all beams at once
Sensitivity Adjustable (50/100/300/700 ms)
Frequency channels Each beam works at its own frequency
Alarm outputs 1 relay NO/NC (max. AC125V/0.5A, DC24V/1A)
Alignment angle H: ±15º / V: ±15º
Adjustment method Through LED and alignment tool (ABL-JYD)
Operating temperature -25ºC ~ +70ºC
Degree of protection IP67
Power 12~24 VDC/VAC, 150 mA max.
MTBF 120.000 hours

Package content

  • Laser barrier
  • Installation material
  • User instructions

Data sheet

Power
12~24 VDC/VAC, 150 mA max.
Grado de protección
IP67
Detection range
500m outdoor
Sensitivity
Adjustable (50/100/300/700 ms)
Ajustable (50/100/300/700 ms)
Degree of protection
IP67
Number of beams
3
Operating temperature
-25ºC ~ +70ºC
Power supply
12~24 VDC/VAC, 150 mA max.
Detection method
Configurable: alarma cortando un haz, dos haces o todos los haces a la vez
Configurable: alarm by cutting one beam, two beams or all beams at once
Frequency channels
Cada haz trabaja con su propia frecuencia
Each beam works at its own frequency
Alarm outputs
1 relay NO/NC (max. AC125V/0.5A, DC24V/1A)
Alignment angle
H: ±15º / V: ±15º
Adjustment method
A través de LED y herramienta de alineamiento (ABL-JYD)
Through LED and alignment tool (ABL-JYD)
MTBF
120.000 horas
120.000 hours
Rango de detección
500m exterior
