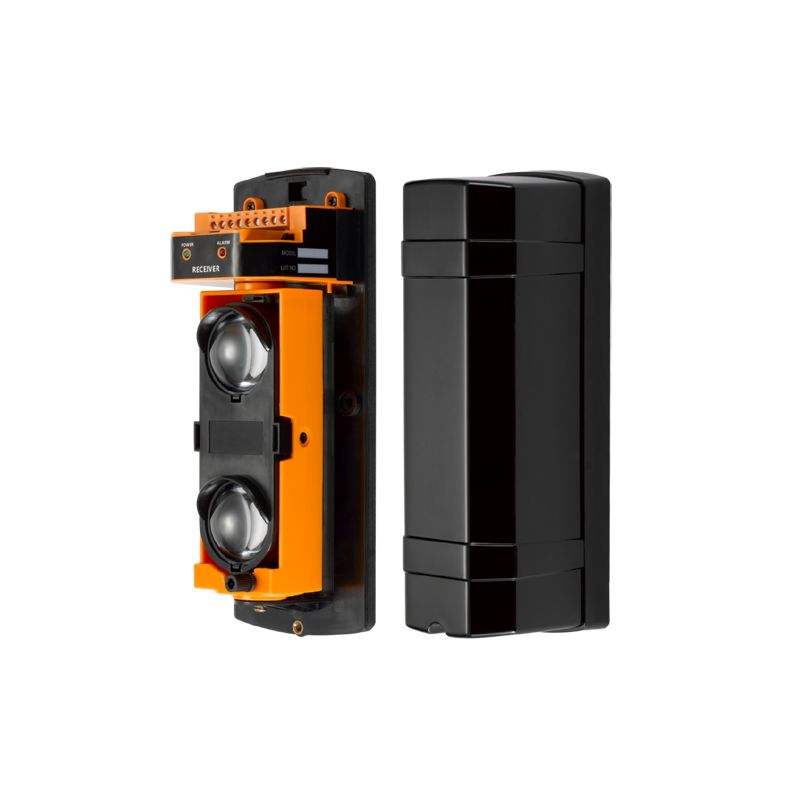

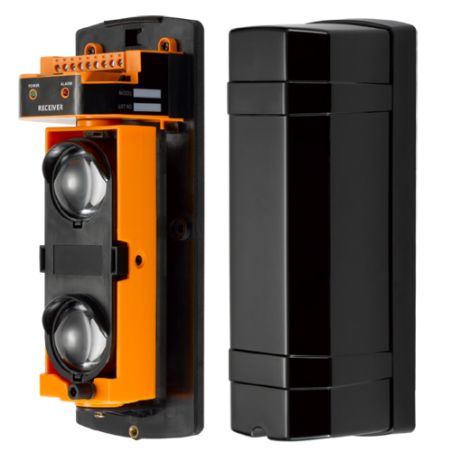

AB-60 - Infrared barrier detector, Wired | 2 beams, Max…
Infrared barrier detector - Wired | 2 beams - Max distance. detection 60 / 180 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
€31.20
€48.00
Save 35%
Tax included
Reference
AB-60
Brand
Branded
AB-60 - Infrared barrier detector, Wired | 2 beams, Max…
€31.20
€48.00
Save 35%
You might also like
- Duoble beam infrared barrier for outdoor
- Wired
- Maximum detection transmitter / receiver 180 m (interior) and 60 m (exterior)
- Double adjustable lens
- H: ±90º / V: ±10º
- DIP Switch for programming
- 4 work frequencies
- Easy programming over LED Display
- Power 12~24 VDC/VAC
Features
- Infrared barrier detector
- Wired | 2 beams
- Max distance. detection 60 / 180 m
- High configuration capacity
- Tamper | Relay Outputs | LED Display
- Power supply 12~24VDC/VAC
Specs
| Detection range | 180m indoor / 60m outdoor |
| Number of beams | 2 |
| Detection method | Interruption of the 2 beams at once |
| Interruption time | 50ms, 100ms, 300ms, 700ms (available) |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 1A), Tamper NC |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Adjustment method | Over LCD Display between 0-99 |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | 12~24 VDC/VAC, 75 mA max. |
| Dimensions | 211.5 (H) x 79.9 (W) x 74.7 (D) mm |
Package content
- Infrared barrier
- Installation material
- User instructions
Data sheet
- Power
- 12~24 VDC/VAC, 75 mA max.
- Detection range
- 180m indoor / 60m outdoor
- Degree of protection
- IP65
- Dimensions
- 211.5 (H) x 79.9 (W) x 74.7 (D) mm
- Number of beams
- 2
- Operating temperature
- -25ºC ~ +55ºC
- Power supply
- 12~24 VDC/VAC, 75 mA max.
- Detection method
- Interruption of the 2 beams at once
- Interruption time
- 50ms, 100ms, 300ms, 700ms (available)
- Frequency channels
- 4 different channels over DIP Switch
- Alarm outputs
- 1 relay NO/NC (max. 30VDC/VAC, 1A), Tamper NC
- Alignment angle
- Horizontal 180°(±90°), Vertical 20°(±10°)
- Adjustment method
- Over LCD Display between 0-99
Infrared barrier detector - Wired | 2 beams - Max distance. detection 60 / 180 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
