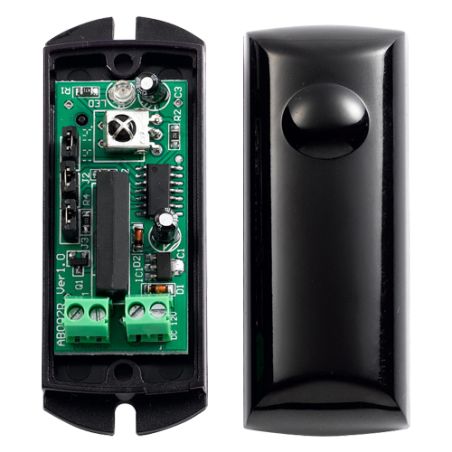

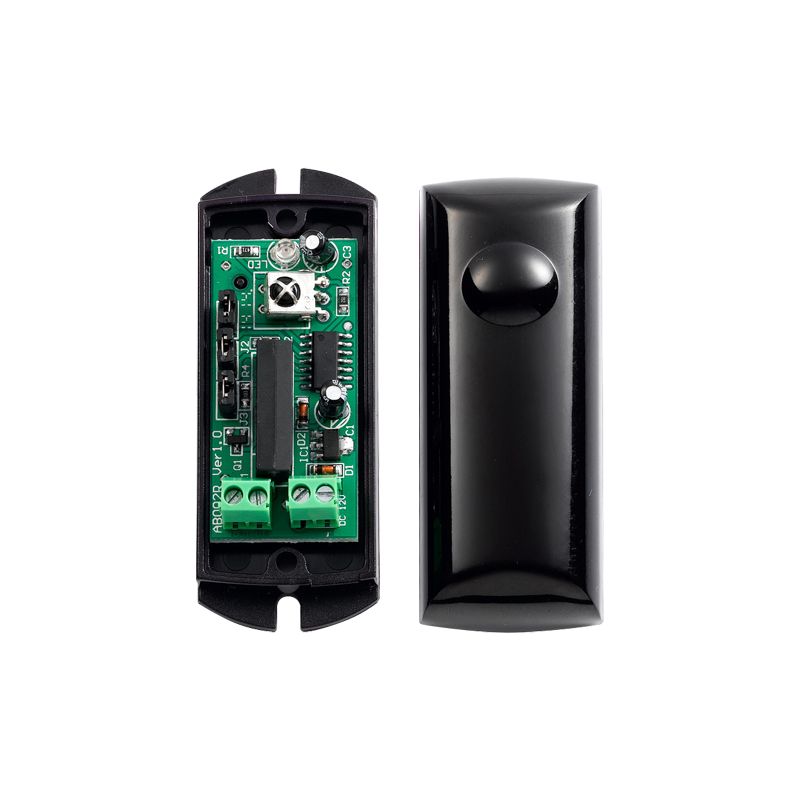

ABO-20F - Infrared barrier detector, Wired | 1 beam, Max…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Infrared barrier detector - Wired | 1 beam - Max distance. detection 10 / 20 m - Smaller size and easy installation - Relay - Power supply 9~16VDC/VAC

€11.19 €17.21 Save 35%

Tax included

Reference ABO-20F

Brand Branded

ABO-20F - Infrared barrier detector, Wired | 1 beam, Max…

€11.19 €17.21 Save 35%

Description
Product Details

Single beam infrared barrier for outdoor
Wired
Maximum detection transmitter / receiver 20 m (interior) and 10 m (exterior)
Reduced size
4 work frequencies
Power 9-16 VDC/VAC

Features

Infrared barrier detector
Wired | 1 beam
Max distance. detection 10 / 20 m
Smaller size and easy installation
Relay
Power supply 9~16VDC/VAC

Specs

Detection range	20m indoor / 10 m outdoor
Number of beams	1
Detection method	Infrared beam interruption
Frequency channels	4 different channels over DIP Switch
Alarm outputs	1 relay NO/NC (max. 36VDC/VAC, 1A)
Adjustment method	Over LED
Operating temperature	-25ºC ~ +55ºC
Power	9~16 VDC/VAC, 20 mA max.
Dimensions	69.5 (H) x 26.4 (W) x 22.5 (D) mm

Package content

Infrared barrier
Installation material
User instructions

Data sheet

Power: 9~16 VDC/VAC, 20 mA max.
Detection range: 20m indoor / 10 m outdoor
Dimensions: 69.5 (H) x 26.4 (W) x 22.5 (D) mm
Number of beams: 1
Operating temperature: -25ºC ~ +55ºC
Power supply: 9~16 VDC/VAC, 20 mA max.
Detection method: Infrared beam interruption
Frequency channels: 4 different channels over DIP Switch
Alarm outputs: 1 relay NO/NC (max. 36VDC/VAC, 1A)
Adjustment method: Over LED
