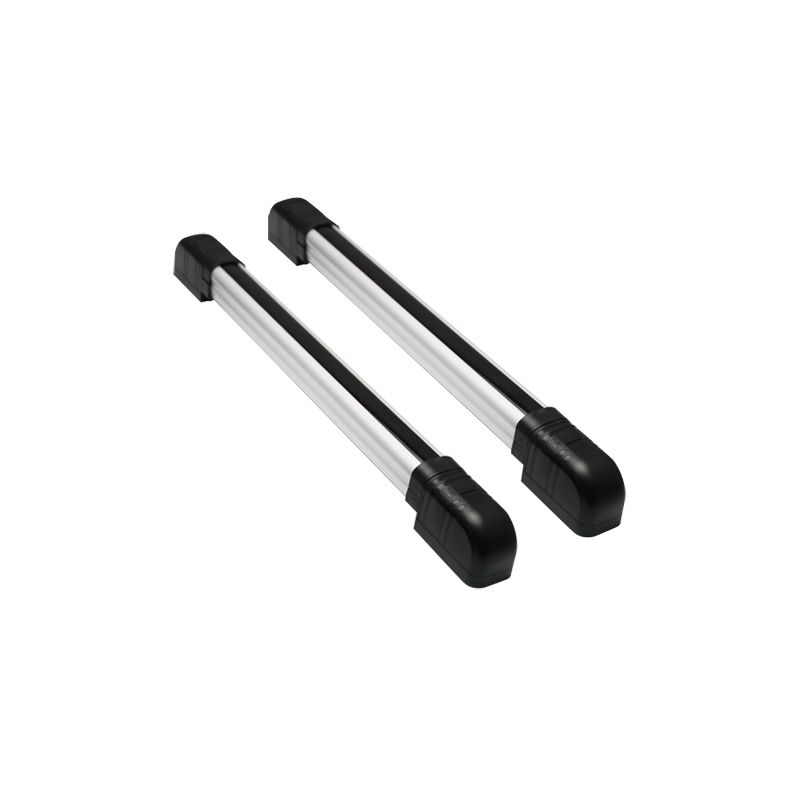

ABI30-1408 - Infrared barrier detector, Wired | 8 beams, Max…
search
  • ABI30-1408 - Infrared barrier detector, Wired | 8 beams, Max…

ABI30-1408 - Infrared barrier detector, Wired | 8 beams, Max…

Infrared barrier detector - Wired | 8 beams - Max distance. The detection 30 m - Easy installation with LED and buzzer - NC/NO relay outputs - Power supply 12~18VDC
€49.40 €76.00 Save 35%
Tax included
Reference ABI30-1408
Brand Branded
Quantity
Out-of-Stock

Free shipping

You might also like

  • Infrared barrier of 8 beams for outdoor
  • Wired
  • Maximum sender / receiver detection 30 m (exterior)
  • Horizontal adjustment 180º (±90º)
  • 2 work frequencies
  • LED and buzzer for easy installation
  • Power supply 12~18 VDC

Features

  • Infrared barrier detector
  • Wired | 8 beams
  • Max distance. The detection 30 m
  • Easy installation with LED and buzzer
  • NC/NO relay outputs
  • Power supply 12~18VDC

Specs

Detection range 30m outdoor
Number of beams 8
Detection method Interruption of 2 continuous beams at a time
Sensitivity Adjustable between L, M H
Frequency channels 2 different channels over DIP Switch
Alarm outputs 1 relay NO/NC (max. 30VDC/VAC, 0.5A)
Alignment angle Horizontal 180°(±90°)
Adjustment method Over LED and buzzer
Operating temperature -25ºC ~ +55ºC
Degree of protection IP65
Power 12~18 VDC, 90 mA max.
Dimensions 140 cm height

Package content

  • Infrared barrier
  • Installation material
  • User instructions

Data sheet

Power
12~18 VDC, 90 mA max.
Detection range
30m outdoor
Sensitivity
Adjustable between L, M H
Degree of protection
IP65
Dimensions
140 cm height
Number of beams
8
Operating temperature
-25ºC ~ +55ºC
Power supply
12~18 VDC, 90 mA max.
Detection method
Interruption of 2 continuous beams at a time
Frequency channels
2 different channels over DIP Switch
Alarm outputs
1 relay NO/NC (max. 30VDC/VAC, 0.5A)
Alignment angle
Horizontal 180°(±90°)
Adjustment method
Over LED and buzzer
