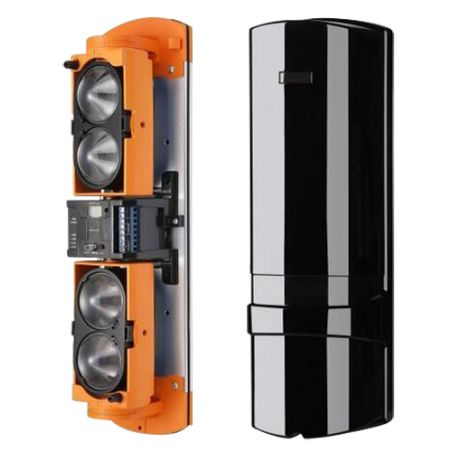

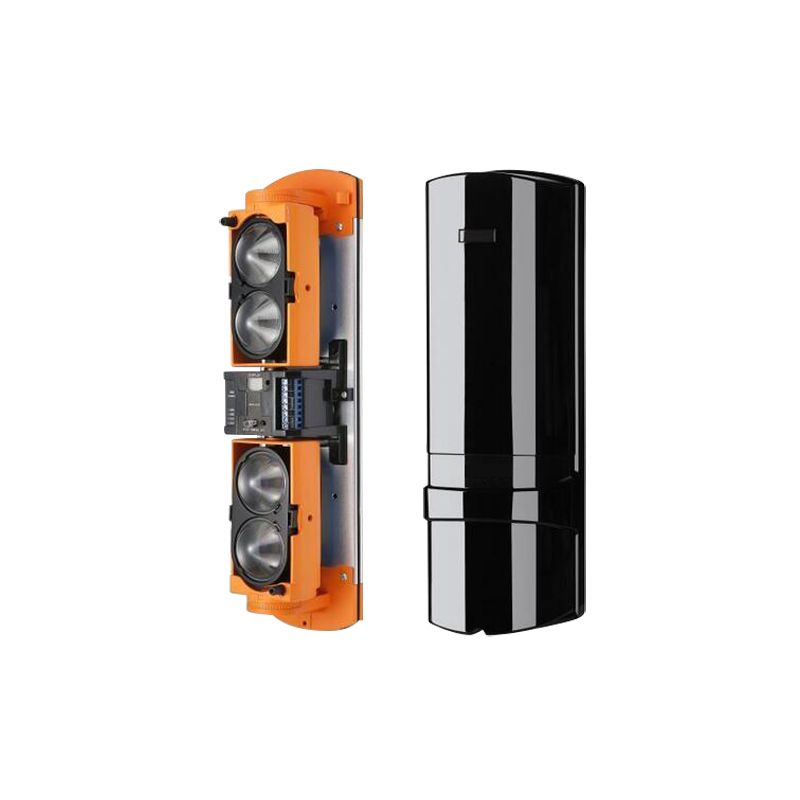

ABH-250L - Infrared barrier detector, Wired | 4 beams | Function…
Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 250 / 750 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
€93.60
€144.00
Save 35%
Tax included
Reference
ABH-250L
Brand
Branded
ABH-250L - Infrared barrier detector, Wired | 4 beams | Function…
€93.60
€144.00
Save 35%
You might also like
- Quadruple infrared beam barrier for exterior
- Wired
- Maximum detection transmitter / receiver 750 m (interior) and 250 m (exterior)
- Quadruple adjustable lens
- H: ±90º / V: ±10º
- AND/OR function
- DIP Switch for programming
- 4 work frequencies
- Easy programming over LED Display
- Power 12-24 VDC/VAC
Features
- Infrared barrier detector
- Wired | 4 beams | Function AND OR
- Max distance. detection 250 / 750 m
- High configuration capacity
- Tamper | Relay Outputs | LED Display
- Power supply 12~24VDC/VAC
Specs
| Detection range | 750m indoor / 250m outdoor |
| Number of beams | 4 |
| Detection method | Interruption of the 4 beams at once or only 2 (up o down) |
| Interruption time | 50ms, 100ms, 300ms, 700ms (available) |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Adjustment method | Over LCD Display between 0-99 |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | 12~24 VDC/VAC, 90 mA max. |
| Dimensions | 291 (H) x 92 (W) x 90 (D) mm |
Package content
- Infrared barrier
- Installation material
- User instructions
Data sheet
- Power
- 12~24 VDC/VAC, 90 mA max.
- Detection range
- 750m indoor / 250m outdoor
- Degree of protection
- IP65
- Dimensions
- 291 (H) x 92 (W) x 90 (D) mm
- Number of beams
- 4
- Operating temperature
- -25ºC ~ +55ºC
- Power supply
- 12~24 VDC/VAC, 90 mA max.
- Detection method
- Interruption of the 4 beams at once or only 2 (up o down)
- Interruption time
- 50ms, 100ms, 300ms, 700ms (available)
- Frequency channels
- 4 different channels over DIP Switch
- Alarm outputs
- 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC
- Alignment angle
- Horizontal 180°(±90°), Vertical 20°(±10°)
- Adjustment method
- Over LCD Display between 0-99
Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 250 / 750 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
