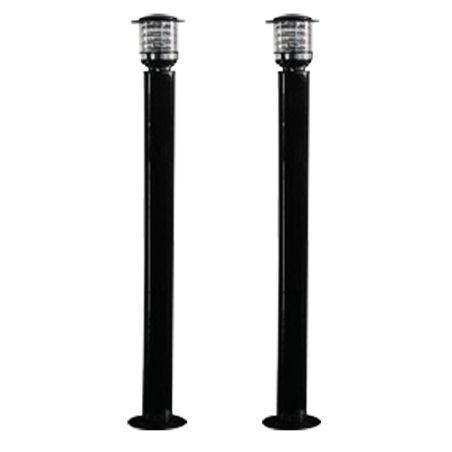

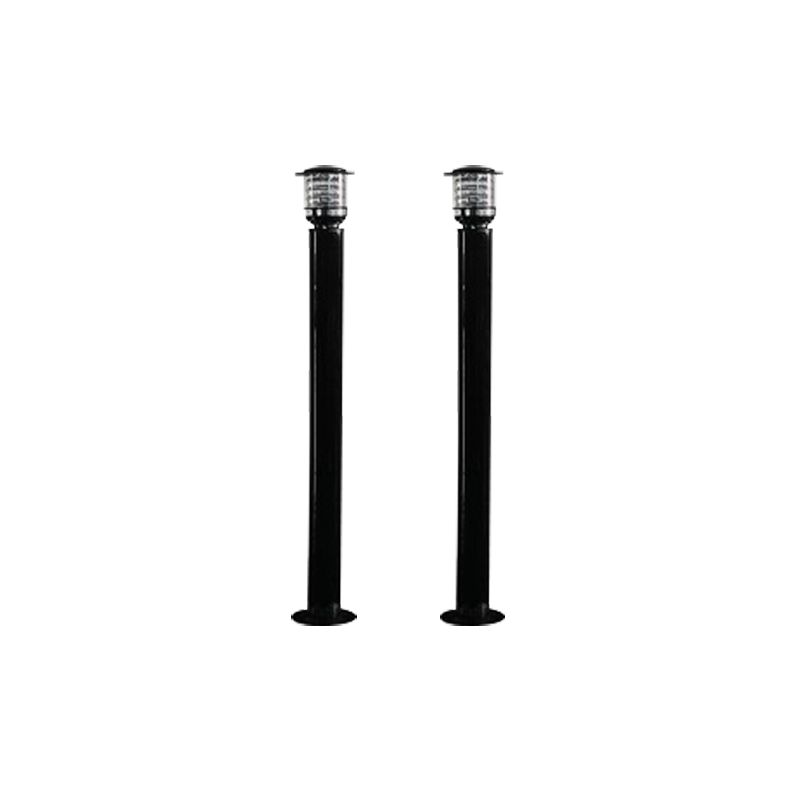

ABL30-18510A - Infrared barrier detector, Wired | 10 beams, Max…
Infrared barrier detector - Wired | 10 beams - Max distance. The detection 30 m - Easy installation with LED and buzzer - Unique address for each tower - Relay output NC/NO | Power supply 12~18VDC
€260.00
€400.00
Save 35%
Tax included
Reference
ABL30-18510A
Brand
Branded
ABL30-18510A - Infrared barrier detector, Wired | 10 beams, Max…
€260.00
€400.00
Save 35%
- Kit of infrared towers (emitter/receiver) of 10 beams for outdoor
- Wired
- Maximum sender / receiver detection 30 m (exterior)
- Connection of each tower: an address
- Horizontal alignment angle 180° (± 90), vertical not adjustable
- 2 work frequencies
- Allows unlimited installation through a socket E27 230VAC for lighting and camouflage with garden lights
- Power supply 12~18 VDC
- Highly resistant PVC tube
Features
- Infrared barrier detector
- Wired | 10 beams
- Max distance. The detection 30 m
- Easy installation with LED and buzzer
- Unique address for each tower
- Relay output NC/NO | Power supply 12~18VDC
Specs
| Detection range | 30 m exterior |
| Number of beams | 10 |
| Detection method | Interruption of 2 continuous beams at a time |
| Communication | One address per tower: sender or receiver |
| Sensitivity | Adjustable between L, M, H |
| Frequency channels | 2 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A) |
| Alignment angle | Horizontal 180°(±90°) |
| Adjustment method | Over LED and buzzer |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | 12~18 VDC, 90 mA max. |
| Dimensions | 185 cm height |
Package content
- Infrared towers
- Installation material
- User instructions
Data sheet
- Power
- 12~18 VDC, 90 mA max.
- Detection range
- 30 m exterior
- Sensitivity
- Adjustable between L, M, H
- Degree of protection
- IP65
- Dimensions
- 185 cm height
- Number of beams
- 10
- Operating temperature
- -25ºC ~ +55ºC
- Power supply
- 12~18 VDC, 90 mA max.
- Detection method
- Interruption of 2 continuous beams at a time
- Frequency channels
- 2 different channels over DIP Switch
- Alarm outputs
- 1 relay NO/NC (max. 30VDC/VAC, 0.5A)
- Alignment angle
- Horizontal 180°(±90°)
- Adjustment method
- Over LED and buzzer
- Communication
- One address per tower: sender or receiver
Infrared barrier detector - Wired | 10 beams - Max distance. The detection 30 m - Easy installation with LED and buzzer - Unique address for each tower - Relay output NC/NO | Power supply 12~18VDC
