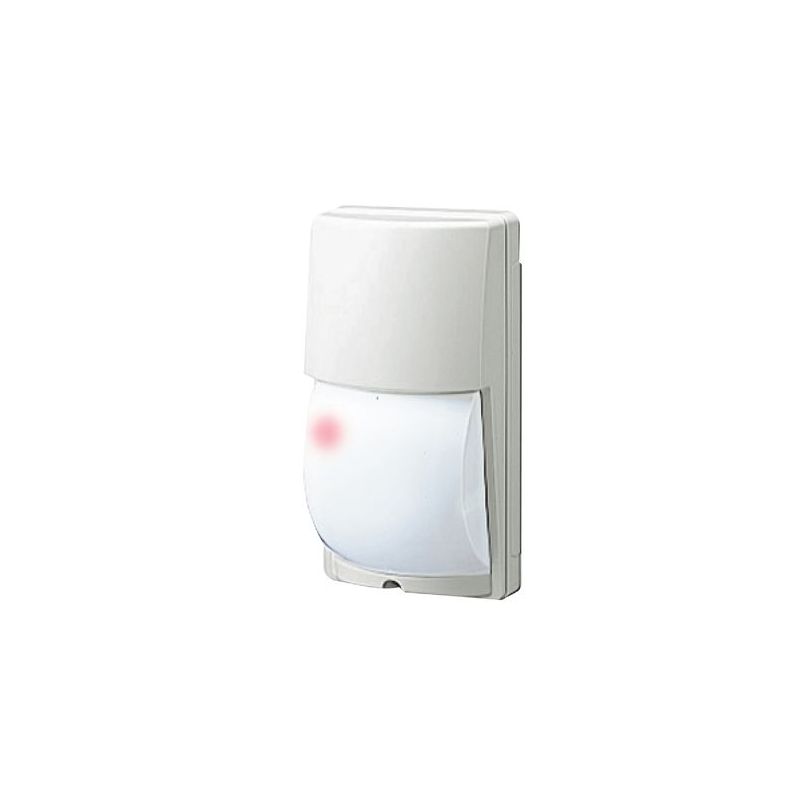

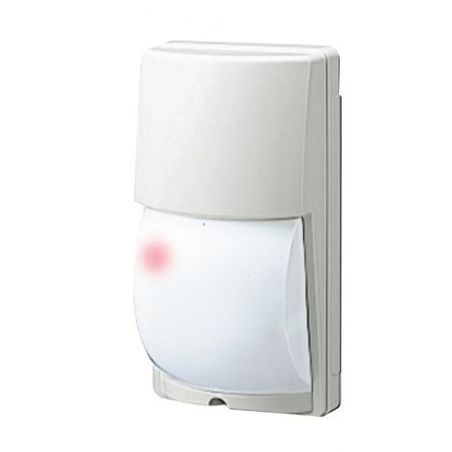

Optex LX-802. PIR detector for outdoors, 24x2m. Pet inmunity discrimination. 12 detection zones (4 zones on pet inmunity mode). Sabotage tamper and alarm output. Pulse and sensibility selection. IP54. Lx-802n.

Features

- PIR detector for outdoors

- Pet discrimination

- Selectable pattern, corridor for pets (4 zones) or multilevel (12 zones)

- 24 x 2 m range

- Installation (height) 1,2 ~ 1,5 m multilevel or 2,5 m pet inmunity

- Undesirable area masking

- Sensibility selector (high, medium and low)

- Alarm relay: NC/NA (28V DC, 0,2A)

- Sabotage tamper

- Photocell for day / night operation

- Pulse and sensibility selection

- Double Conductive Mesh Protection

- Power supply: 10,8V ~ 13,2V DC /25 mA

- Working temperature: -20°C ~ +50°C

- IP54

- Dimensions: 141 x 74,8 x 57,5 mm

- Wall ball joint: OPTEX-37 (CA-1W)

- OPTEX-14
