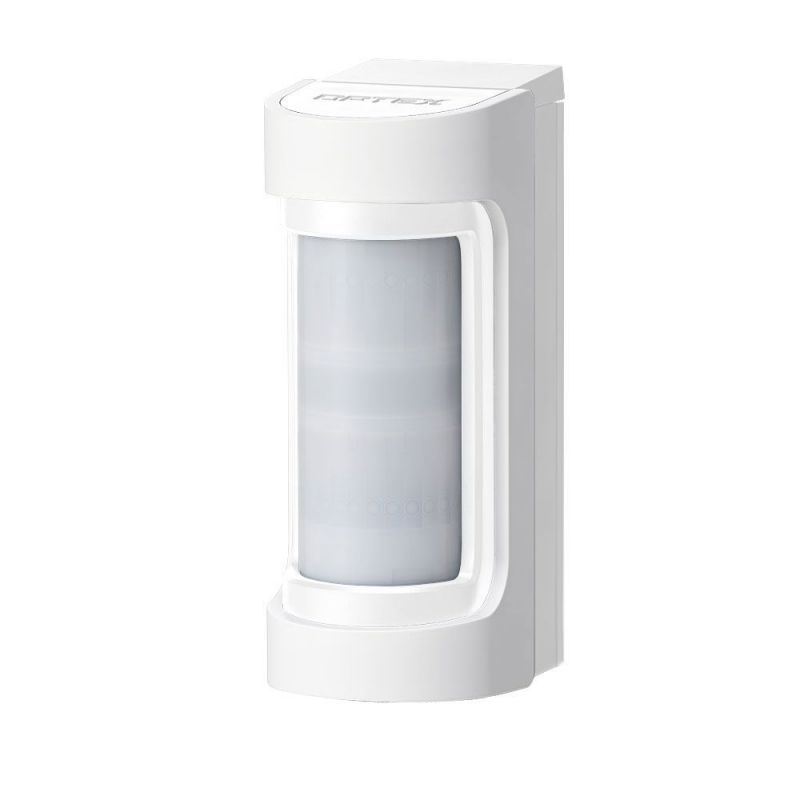

Optex VXS-RAM-W. Double PIR detector for outdoors, 12m, 90° range. Antimasking by IR ON. Advanced processing logic SMDA. 16 detection zones. 5 levels of adjustable detection. Adjustable sensibility of 3 levels. Alarm outputs and tamper against sabotage. Double conductive mesh (patented) to avoid interference. IP55. Autopowered with lithiium batteries or alkaline 3V~9VDC or from transmitter via radio Infrarrojo v.radio ext vxs-ram(w).

Features

- Double PIR detection for outdoors

- Antimasking by IR ON

- 12 m coverage, 90°

- Adjustable detection range of 5 levels (2,5/3,5/6/8,5/12 meters)

- 16 detection zones

- Mount height: 0,8 ~ 1,2 meters

- Adjustable sensibility (high, mid, low)

- SMDA processing logic (Super Multi-Dimension Analysis) against false alarms by vegetation and adverse climatic factors

- Quick closing of the front cover, pressure, and walk test (3 minutes duration) automatic closing the lid

- Alarm relay: NC/NA (10V DC, 0,01A)

- Failure output: NC/NA (10V DC, 0,01A)

- Rear tamper incorporated

- Double conductive mesh protection

- Built-in level for fast and accurate installation

- Easy visual identification of all adjustment elements (marked in blue on the detector)

- Fast aperture via 90º turn on lower screw

- It includes a protected passenger compartment on the back to house the transmitter via radio

- IP55

- Working temperature: -20°C ~ +60°C

- Powered by lithium or alkaline batteries of 3V ~ 9V DC (not included)

- Compatible batteries: CR123A x3, 1/2AA x3 or x6, CR2 x3

 (RBB-01)

- It is recommended to power from the battery via radio transmitter used

- Maximum consumption: 4mA

- Dimensions: 199,3 x 81,6 x 109,3 mm

- OPTEX-114
