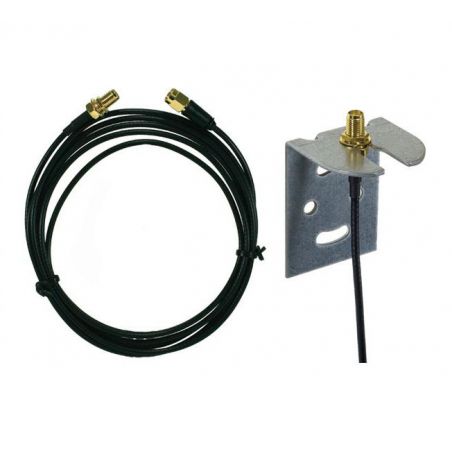

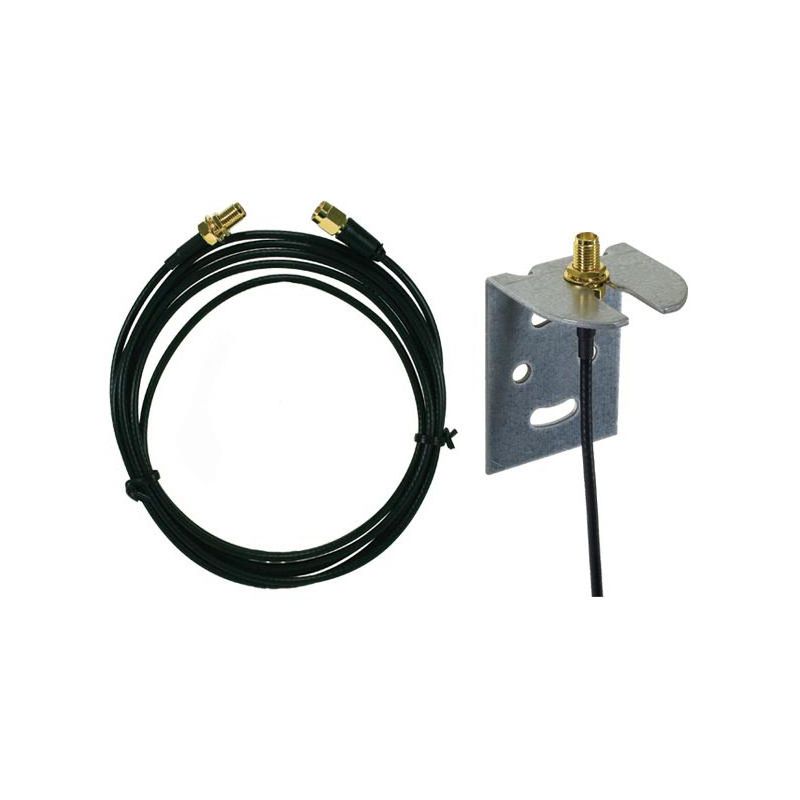

Paradox EXT-ANT18 18 meter cable for GSM / GPRS transmitter

• 18 meter long cable to extend antenna location on GSM/GPRS transmitters
• Compatible with PCS and GPRS14 series
• SMA connector
• Improves reception by relocating the antenna
• Includes wall mounting bracket
• 1.5 mm thick cable

Antenna extensions
Instructions
An antenna extension may be used if reception where the GSM module is installed is not satisfactory. Using antenna extensions longer than 7m (24ft) may cause a loss of signal quality between the antenna and the GSM module. Signal loss is proportional to the length of the antenna extension. Try to determine the best location for the antenna using the shortest antenna extension to avoid loss of signal quality.
EXT2: 2 m (6 ft) EXT15: 14.5 m (48 ft) EXT4: 4 m (12 ft) EXT18: 18 m (60 ft) EXT7: 7 m (24 ft)
Facility
Insert the antenna extension into the bracket until it clicks into place and mount the bracket to the wall via the two screw holes.
