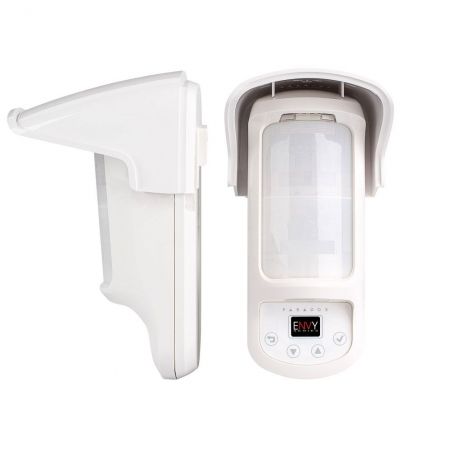

Paradox NVX80. Outdoor IR detector with double technology with antimasking. EN50131 grado 3 Infrarrojo int/ext doble tec.antimask grado 3 industc/visera+sop inc.

The PAR-135 (NVX80) is a powerful indoor / outdoor detector that is highly sensitive, accurate and maintains reliability, even in extreme environments. The PAR-135 (NVX80) is the only detector in the industry offering eight detection channels - 4x forward looking PIR channels (2x quad interlock geometry sensors), 2x microwave channels and 2x standalone creep detector (1quad sensor with interlock geometry).

Unprecedented detection accuracy

SeeTrueTM Technology (Patent Pending)

Identifies camouflaged movements used to breach common PIR and dual tech detectors

Sensitivity is enhanced while maintaining reliability (even in high temperature environments) - no compromise on false alarm immunity

Active IR (Patent Pending) & MW (Patented) Anti-Mask Detection

The PAR-135 (NVX80) recognizes:

objects placed in close proximity (within 11.8in. / 30cm)

objects placed directly on the lens (clear lacquer, clear adhesive tape, aluminum foil etc.)

degradation of the lens by dirt or dust

movement within close range of the unit (0.5m - 2m / 1.6ft - 6.5ft) – range is customizable

Dedicated Creep Detector

Integrated Creep Detection unit with dedicated sensor and circuitry provides:

highly sensitive and reliable protection of a large creep area (0.1m-3m/0.3-9.8ft.)

enables independent customization of creep sensitivity to secure the area directly below the detector

Pet ImmunityTM(Patented Paradox Technology)

Integrated Creep Detection unit with dedicated sensor and circuitry provides:

uses size discrimination to filter out objects under 80cm (32in.) high, preventing pets weighing up to 20kg (44lbs.) from triggering the detector and creating a false alarm

Configuration made easy

Quick installation

Full color OLED menu display and 4-button interface – intuitive guide to program, customize settings and test the unit.

Dedicated diagnostics for PIR, MW, anti-mask and SeeTrueTM enable simple, accurate, one time installation. No jumpers, trimmers or complex wiring needed

PAR-135 (NVX80) features:

A large detection pattern (15m x 15m / 50ft x 50ft)

Certification: EN 50131 Grade 3 Class IV

Available in bracket configuration and wall mount

- PAR-135
