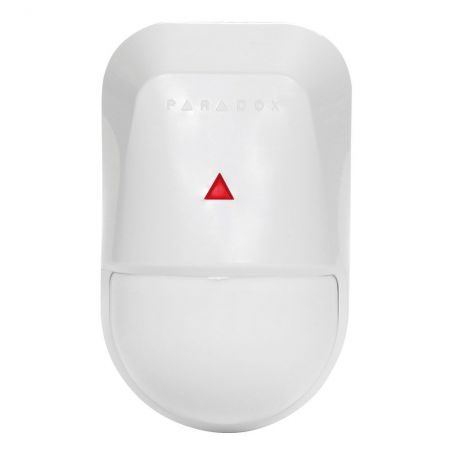

Paradox NV5. Double element IR digital detector. PEt inmunity up to 16 kg. Grade 2 EN50131 Infrarrojo digital doble elemento antimascotas 16kg. grado 2.

- Double element digital IR detector

- Range: 10x10 m (at 2,4 m high)

- Aperture: 102º

- Angle: 0°

- Height installation: 2,1 ~ 3,1 m

- Pet inmunity up to 16 kg

- FADEC:  full authority digital engine control

- Exclusive 1.0 "Paradox® cylindrical-spherical hybrid lens with 3rd generation Fresnel LoDiff segments

- Paradox® equalized detection pattern that guarantees the same sensitivity throughout the protected area

- Single or dual processing selection

- Dual digital automatic pulse signal processing (APSP) with two-level selection

- Digitally equalized temperature compensation

- Digital adjustment of sensitivity with five levels and confirmation LED

- 10-second startup time

- 0,2 ~ 3 ms detection speed

- Relay output: solid state, NC, 150 mA

- Sabotage: 28V DC, NC, 150 mA

- Working temperature: -10ºC ~ 50ºC

- Power supply: 10 ~ 15V DC

- Consumption: 10,5 mA standby, 11,3 mA alarm

- Dimensions: 90 x 55 x 40 mm

- Optional wall and ceiling mounting bracket

- PAR-4N
