SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 99SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7063 AND id_lang = 1 Pyronix TMD15 - Triple technology PIR Detector, Anti-masking function,…
  • -35%

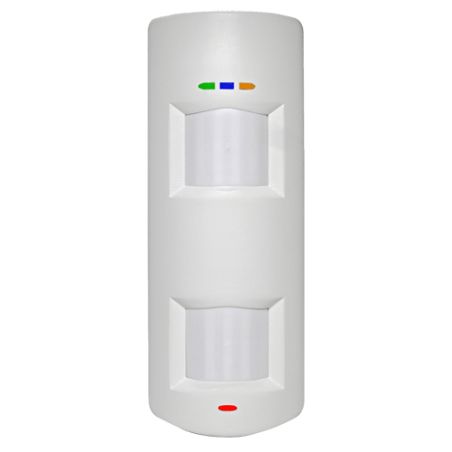

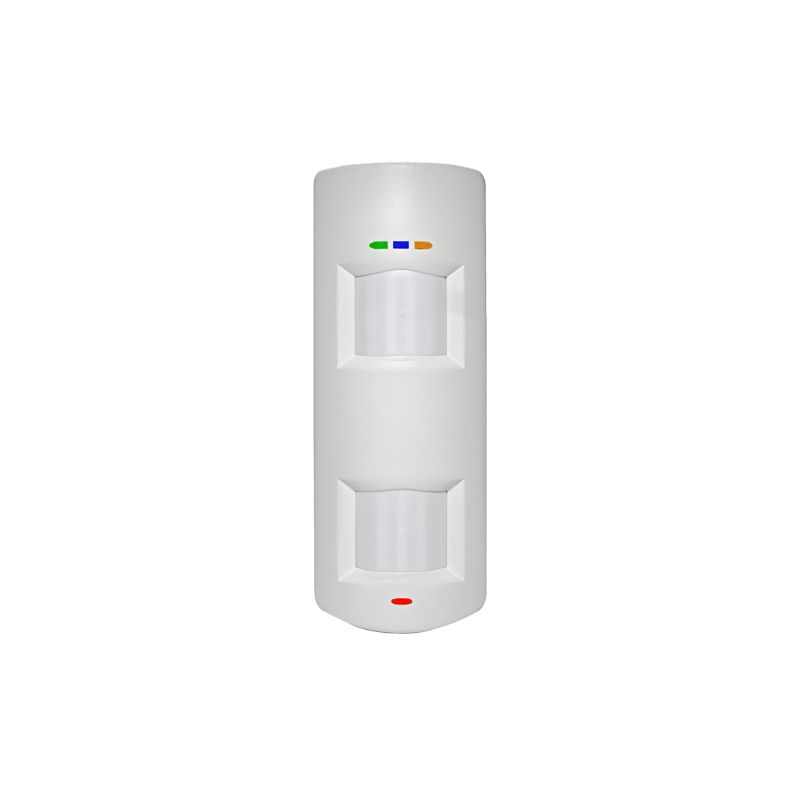

Pyronix TMD15 - Triple technology PIR Detector, Anti-masking function,…
search
  • Pyronix TMD15 - Triple technology PIR Detector, Anti-masking function,…

Pyronix TMD15 - Triple technology PIR Detector, Anti-masking function,…

Triple technology PIR Detector - Anti-masking function - Integrated EOL resister - 2 Infrared, 1 Microwaves - Detection Range 15 m - Certificate Grade 3
€62.40 €96.00 Save 35%
Tax included
Reference TMD15
Brand Pyronix
Quantity
Available in 24/48h

Free shipping
Pyronix TMD15 - Triple technology PIR Detector, Anti-masking function,…

Pyronix TMD15 - Triple technology PIR Detector, Anti-masking function,…

€62.40 €96.00 Save 35%
  • Pyronix
  • Detector interior triple antimasking technology
  • Microwave and two PIR with double element pyrosensor
  • Coverage 15 m / 90º
  • Adjustable microwave coverage between 1-15m
  • Active auto-test
  • Zero angle
  • Integrated single/double/triple EOL resistors
  • Automatic sensitivity
  • Digital temperature compensation
  • Sealed optics
  • White light filter
  • UV Lens protection
  • Function AND/OR
  • Anti-masking 0-1m
  • Certificate Grade 3

Features

  • Triple technology PIR Detector
  • Anti-masking function
  • Integrated EOL resister
  • 2 Infrared, 1 Microwaves
  • Detection Range 15 m
  • Certificate Grade 3

Specs

Brand Pyronix
Technology 2 x PIR and 1 x Microwaves
Security grade Grade 3
PIR lens 54 zones and 6 planes
Detection range 15 m / 90º for installation height = 2.4 m
Pet immunity No
Masking Adjustable from 0 to 1 m
Sensitivity Adjustable Automatic or High
Detection speed 0.25~2.5 m/s
Relay Output 3 x SELV, DC 60 V 50 mA
Tamper switch Front and rear, DC 12 V 50 mA
Temp. operation -10º C ~ 40º C
Dimensions (without bracket) 190 (H) x 82 (W) x 82 (D) mm

Package content

  • Indoor PIR Detector
  • Installation material

Data sheet

Technology
2 x PIR and 1 x Microwaves
Detection range
15 m / 90º for installation height ﹦ 2.4 m
Pet immunity
No
Masking
Adjustable from 0 to 1 m
Sensitivity
Adjustable Automatic or High
Temp. operation
-10º C ~ 40º C
Security grade
Grade 3
PIR lens
54 zones and 6 planes
Dimensions (without support)
190 (H) x 82 (W) x 82 (D) mm
Detection speed
0.25~2.5 m/s
Relay Output
3 x SELV, DC 60 V 50 mA
Tamper switch
Front and rear, DC 12 V 50 mA
Dimensions (without bracket)
190 (H) x 82 (W) x 82 (D) mm
