SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 99SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 3629 AND id_lang = 1 Pyronix PCX-ROX8R8T - Pyronix, Expander for 16 outputs, Grade 3 approved, 8…

-35%

Pyronix PCX-ROX8R8T - Pyronix, Expander for 16 outputs, Grade 3 approved, 8…

Pyronix PCX-ROX8R8T - Pyronix, Expander for 16 outputs, Grade 3 approved, 8…

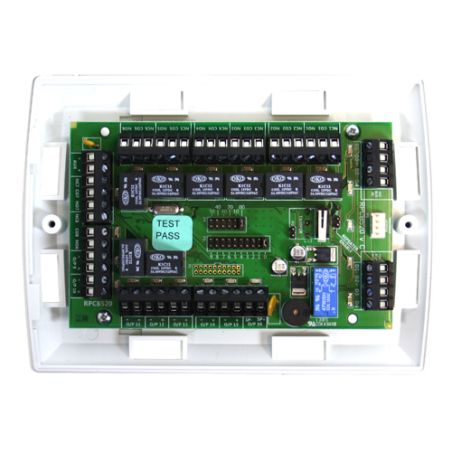

Pyronix - Expander for 16 outputs - Grade 3 approved - 8 Relay outputs (NO or NC) - 8 digital outputs - Connection RS485

€52.00 €80.00 Save 35%

Tax included

Reference PCX-ROX8R8T

Brand Pyronix

Pyronix PCX-ROX8R8T - Pyronix, Expander for 16 outputs, Grade 3 approved, 8…

Pyronix PCX-ROX8R8T - Pyronix, Expander for 16 outputs, Grade 3 approved, 8…

€52.00 €80.00 Save 35%

Description
Product Details

Pyronix
Expander for 16 outputs
Grade 3 approved
8 Relay outputs (NO or NC)
8 digital outputs
Connection RS485

Features

Pyronix
Expander for 16 outputs
Grade 3 approved
8 Relay outputs (NO or NC)
8 digital outputs
Connection RS485

Specs

Brand	Pyronix
Internal security	Anti-tamper, front and rear
Available outputs	8 relay outputs & 8 cabled inputs
Maximum output	Up to 3A and 30 V in the 8 outputs
Power	max. 300mA.
Connection	RS485
Security grade	Grade 3
Temp. operation	-10º C ~ +50º C
Dimensions	173 (H) x 125 (W) x 32 (D)mm
Weight	340 g

Package content

Expander for 16 outputs
Mounting accessories
User instructions

Data sheet

Weight: 340 g
340 g
Power: max. 300mA.
Temp. operation: -10º C ~ +50º C
Security grade: Grade 3
Internal security: Anti-tamper, front and rear
Dimensions: 173 (H) x 125 (W) x 32 (D)mm
Power supply: max. 300mA.
Available outputs: 8 relay outputs & 8 cabled inputs
Connection: RS485
Maximum output: Up to 3A and 30 V in the 8 outputs
