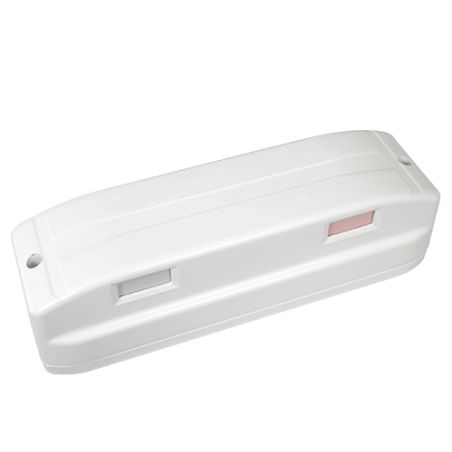

Sopras SOP-BR - PIR detector, Integrated Ajax Transmitter, Microwave…
search
  • Sopras SOP-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

Sopras SOP-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

PIR detector - Integrated Ajax Transmitter - Microwave and double PIR curtain type - Double PIR detection 9 m per side - Reach in open space 1600 m - Outdoor use
€200.00
Tax included
Reference SOP-BR
Brand Sopras
Quantity
Available in 24/48h

Free shipping
Sopras SOP-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

Sopras SOP-BR - PIR detector, Integrated Ajax Transmitter, Microwave…

€200.00

You might also like

  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double technology: Microwave and double PIR on each side
  • Detection: Range 9 m on each side
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1600 m
  • Power supply 2 batteries ER14505 3.6 V
  • Outdoor use
  • Degree of protection IP65
  • Includes mounting bracket
  • White colour
  • Includes Ajax transmitter for wireless communication with Ajax panels

Features

  • PIR detector
  • Integrated Ajax Transmitter
  • Microwave and double PIR curtain type
  • Double PIR detection 9 m per side
  • Reach in open space 1600 m
  • Outdoor use

Specs

TechnologyMicrowave and double PIR curtain type
Microwave24 GHz / Adjustable
PIR lens4 zones (2 on each side)
Detection range9 m / Installation 1~1.2 m
Frequency868 MHz Jeweller with Ajax transmitter included
Transmission distance≤ 1600 m in open space
MaskingNot available
PIR SensitivityAdjustable. 3 levels on each side
Tamper-resistant openingAvailable
LEDs indicationAlarm
DIP switch configurationActivation, PIR range and AND/OR (independent on each side), Battery Saving Mode and LEDs
Wired outputsAlarm left side, alarm right side, tamper and transmitter power supply
Power1 battery ER14505 3.6V
ConsumptionMinimal consumption (Rest: 60 uA / Maximum: 20 mA)
Temp. operation-20 ºC ~ 70 ºC
Degree of protectionIP65
Dimensions220 (H) x 70 (W) x 60 (D) mm
Weight550 g

Package content

  • Outdoor PIR Detector
  • Instructions Manual
  • Mounting material
Sopras

Data sheet

Weight
550 g
Power
1 battery ER14505 3.6V
Technology
Microwave and double PIR curtain type
Detection range
9 m / Installation 1~1.2 m
Frequency
868 MHz Jeweller with Ajax transmitter included
Masking
Not available
LEDs indication
Alarm
Temp. operation
-20 ºC ~ 70 ºC
Degree of protection
IP65
Transmission distance
≤ 1600 m in open space
Dimensions
220 (H) x 70 (W) x 60 (D) mm
PIR lens
4 zones (2 on each side)
Tamper-resistant opening
Available
Consumption
Minimal consumption (Rest: 60 uA / Maximum: 20 mA)
Wired outputs
Alarm left side, alarm right side, tamper and transmitter power supply
DIP switch configuration
Activation, PIR range and AND/OR (independent on each side), Battery Saving Mode and LEDs
Microwave
24 GHz / Adjustable
PIR Sensitivity
Adjustable. 3 levels on each side
