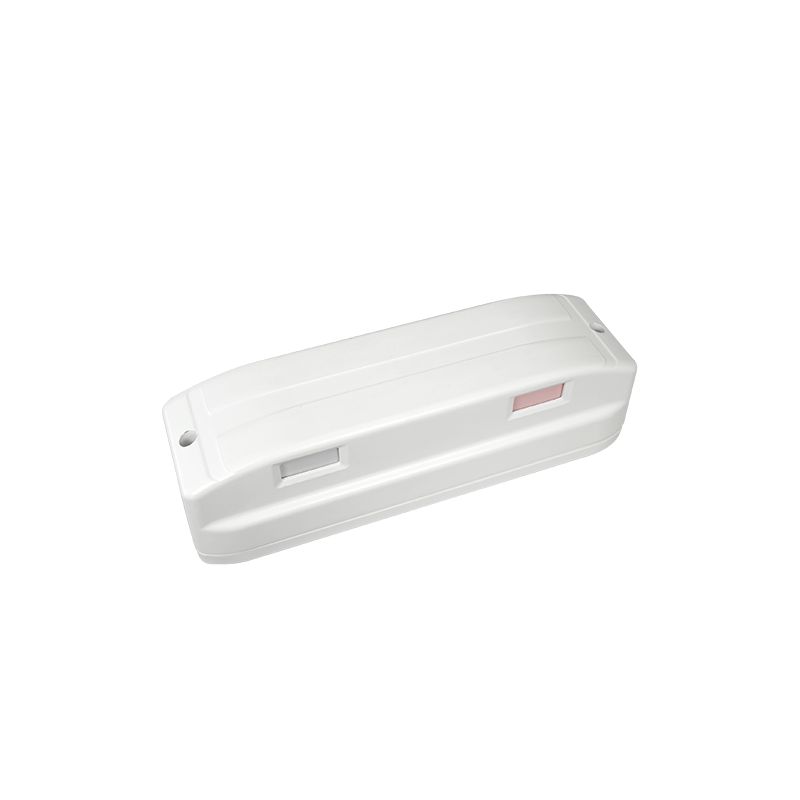

PIR detector - Integrated Ajax Transmitter - Curtain type, double PIR on each side - 9 m of detection on each side - Reach in open space 1600 m - Outdoor use
€130.00
Tax included
Reference SOP-BR-S
Brand Sopras
Quantity
Available in 24/48h

Free shipping
Sopras SOP-BR-S - PIR detector, Integrated Ajax Transmitter, Curtain…

Sopras SOP-BR-S - PIR detector, Integrated Ajax Transmitter, Curtain…

€130.00

You might also like

  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double PIR per side
  • Detection: Range 9 m on each side
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1600 m
  • Power supply 1 battery ER14505 3.6 V
  • Outdoor use
  • Degree of protection IP65
  • Includes mounting bracket
  • White colour
  • Includes Ajax transmitter for wireless communication with Ajax panels

Features

  • PIR detector
  • Integrated Ajax Transmitter
  • Curtain type, double PIR on each side
  • 9 m of detection on each side
  • Reach in open space 1600 m
  • Outdoor use

Specs

Technology Double PIR curtain type
PIR lens 4 zones (2 on each side)
Detection range 9 m / Installation 1~1.2 m
Frequency 868 MHz Jeweller with Ajax transmitter included
Transmission distance ≤ 1600 m in open space
Masking Not available
PIR Sensitivity Adjustable. 3 levels on each side
Tamper-resistant opening Available
LEDs indication Alarm
DIP switch configuration Activation, PIR range and AND/OR (independent on each side), Battery Saving Mode and LEDs
Wired outputs Alarm left side, alarm right side, tamper and transmitter power supply
Power 1 battery ER14505 3.6V
Consumption Minimal consumption (Rest: 29uA / Maximum: 0.9 mA)
Temp. operation -20 ºC ~ 70 ºC
Degree of protection IP65
Dimensions 220 (H) x 70 (W) x 60 (D) mm
Weight 550 g

Package content

  • Outdoor PIR Detector
  • Instructions Manual
  • Mounting material
Sopras

Data sheet

Weight
550 g
Power
1 battery ER14505 3.6V
Technology
Double PIR curtain type
Detection range
9 m / Installation 1~1.2 m
Frequency
868 MHz Jeweller with Ajax transmitter included
Masking
Not available
LEDs indication
Alarm
Temp. operation
-20 ºC ~ 70 ºC
Degree of protection
IP65
Transmission distance
≤ 1600 m in open space
Dimensions
220 (H) x 70 (W) x 60 (D) mm
PIR lens
4 zones (2 on each side)
Tamper-resistant opening
Available
Consumption
Minimal consumption (Rest: 29uA / Maximum: 0.9 mA)
Wired outputs
Alarm left side, alarm right side, tamper and transmitter power supply
DIP switch configuration
Activation, PIR range and AND/OR (independent on each side), Battery Saving Mode and LEDs
PIR Sensitivity
Adjustable. 3 levels on each side
