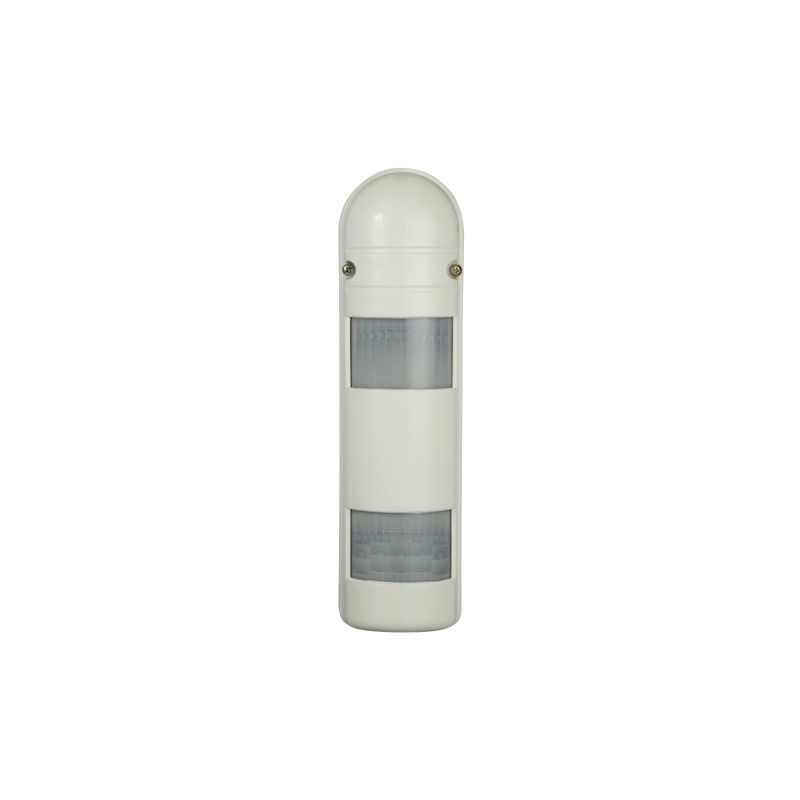

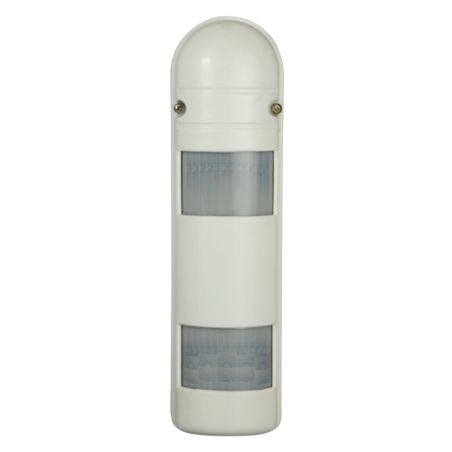

Sopras SOP-WA9-DT - PIR detector, Integrated Ajax Transmitter, Microwave…
PIR detector - Integrated Ajax Transmitter - Microwave and double PIR curtain type - Detection range 9 m - Antimasking Technology - Reach in open space 1200 m - Outdoor use
€132.00
Tax included
Reference
SOP-WA9-DT
Brand
Sopras
Sopras SOP-WA9-DT - PIR detector, Integrated Ajax Transmitter, Microwave…
€132.00
You might also like
- Sopras
- Outdoor detector with low consumption
- Bidirectional
- Double technology: Microwave and double PIR with antimasking
- Detection: Range 9 m / 90º
- Motion detection indicator
- Tamper-resistant opening
- Range in open space 1200 m
- Power supply 2 batteries ER14505 3.6 V
- Outdoor use
- Degree of protection IP65
- White colour
- Includes Ajax transmitter for wireless communication with Ajax panels
Features
- PIR detector
- Integrated Ajax Transmitter
- Microwave and double PIR curtain type
- Detection range 9 m
- Antimasking Technology
- Reach in open space 1200 m
- Outdoor use
Specs
| Technology | Double technology: double PIR and microwave with antimasking |
| Detection range | 9 m / V: 90º / Installation 1 m |
| Frequency | 868 MHz Jeweller (Ajax transmitter included) |
| Transmission distance | ≤ 1200 m in open space |
| Masking | Available |
| Sensitivity | Adjustable for PIR and Microwave. 3 levels |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP switch configuration | PIR sensitivity, Microwave sensitivity, Antimasking, Battery saving mode and LEDs |
| Wired outputs | Alarm and tamper |
| Power | 2 batteries ER14505 3.6 V |
| Consumption | Minimal consumption (Rest: 60uA / Maximum: 40 mA) |
| Temp. operation | -20 ºC ~ 70 ºC |
| Degree of protection | IP65 |
| Dimensions | 195 (H) x 50 (W) x 60 (D) mm |
Package content
- Outdoor PIR Detector
- Instructions Manual
- Mounting material
Data sheet
- Power
- 2 batteries ER14505 3.6 V
- Technology
- Double technology: double PIR and microwave with antimasking
- Detection range
- 9 m / V: 90º / Installation 1 m
- Frequency
- 868 MHz Jeweller (Ajax transmitter included)
- Masking
- Available
- Sensitivity
- Adjustable for PIR and Microwave. 3 levels
- LEDs indication
- Alarm
- Temp. operation
- -20 ºC ~ 70 ºC
- Degree of protection
- IP65
- Transmission distance
- ≤ 1200 m in open space
- Dimensions
- 195 (H) x 50 (W) x 60 (D) mm
- Tamper-resistant opening
- Available
- Consumption
- Minimal consumption (Rest: 60uA / Maximum: 40 mA)
- Wired outputs
- Alarm and Tamper
- DIP switch configuration
- PIR sensitivity, Microwave sensitivity, Antimasking, Battery saving mode and LEDs
PIR detector - Integrated Ajax Transmitter - Microwave and double PIR curtain type - Detection range 9 m - Antimasking Technology - Reach in open space 1200 m - Outdoor use
