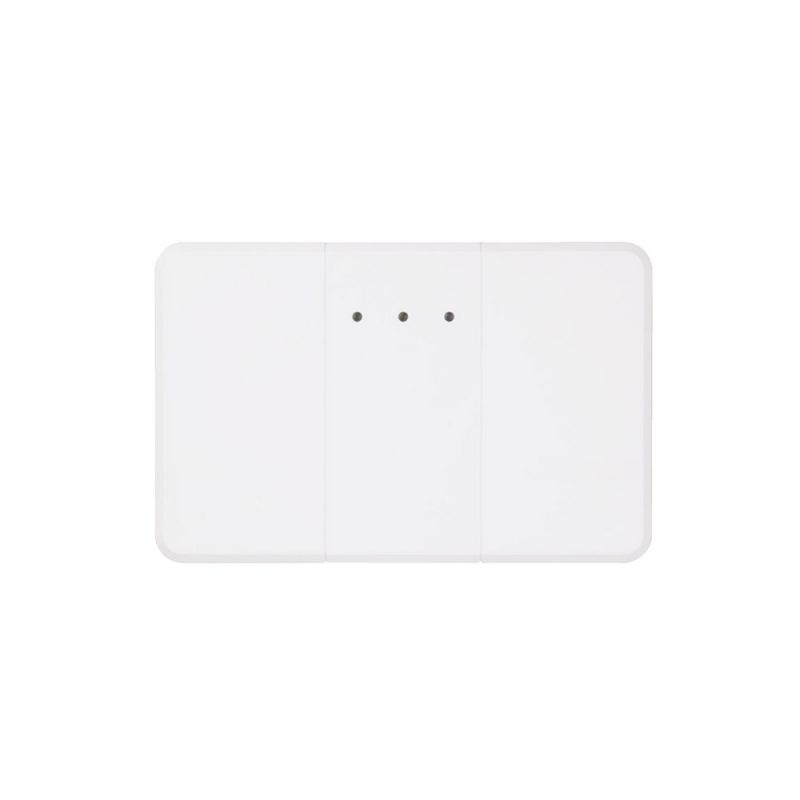

T.0X controller headers CDC IP/3G Televes
Device used for the remote control and monitoring of a T.0X Televes headend. The IP-network access methods are implemented using an Ethernet 10/100 Mbps interface, or a 3G internal modem for ref.555911. These devices establish a connection with a Link server located in the Televes premises, which provides direct connection between installer and headend.
€71.76
€110.40
Save 35%
Tax included
Reference
televes-555911
Brand
Televes
Headend Controller (CDC)
IP/3G
Device used for the remote control and monitoring of a T.0X Televes headend. The IP-network access methods are implemented using an Ethernet 10/100 Mbps interface, or a 3G internal modem for ref.555911. These devices establish a connection with a Link server located in the Televes premises, which provides direct connection between installer and headend.
Features
- Headend management and control is carried out by a centralized service called “Televes Services”. This portal is located in a Televes Server Centre accessible to the user through authentication
- Equipped with a RISC Microcomputer and GNU/Linux Operating System, which ensure reliability in interface, protocol and peripheral device management
Specifications
| CPU | Processor | ARM920T™ | |
| Memories | Type | 8 MB Flash 64 MB SDRAM 128M x 8 bit NAND Flash Memory |
|
| Interfaces Connectors | T.0X powering | Vdc | 24 |
| Interface | RS-485 | ||
| Interface | USB 2.0 Full Speed Host (12 Mbps) | ||
| SIM interface | SIM cards reader | ||
| RJ45 connector | 10/100 Base-T Ethernet | ||
| RJ45 connector | Debugging / LCD programmer | ||
| GSM Antenna connector | F connector | ||
| GSM/GPRS Radio interface | Transmission power | GSM-850/900 Power peak 2W RF (+33dBm) over 50 Ohm |
|
| DCS-1800/PCS-1900 Power peak 1W RF (+30dBm) over 50 Ohm |
|||
| Reference Sensitivity | GSM-850/900 - 107dBm | ||
| DCS-1800/PCS-1900 - 107dBm | |||
| Antenna gain | dBi | 1,5 ≤ Gain < 3 (reference: λ/2 dipole) | |
| GPRS type | CLASS 10 | ||
| GPRS encoding schemes | CS1, CS2, CS3 and CS4 | ||
| GPRS max. downlink transmission rate | Kbps | 85,6 | |
| GPRS max. uplink transmission rate | Kbps | 48,8 | |
| Packet Broadcast Control Channel | Yes | ||
| VSWR (Voltage Standing Wave Ratio) max. absolute | ≤ 5:1 | ||
| VSWR (Voltage Standing Wave Ratio) recommended | ≤ 2:1 | ||
| Input power (peak) | W | >2 | |
| Antenna impedance | Ohm | 50 | |
| Bandwidth | MHz | GSM 850: 70 GSM 900: 80 DCS: 170 PCS: 140 |
|
| Peripherals | Real Time Clock / Alarm | ||
| Digital thermometer | |||
| Operative System | Linux Kernel 2.6.16 | ||
| General | Powering | Vdc | 24 |
| Consumption | mA | 300 | |
| Operating temperature | ºC | -5 ... +45 | |
| Protection index | IP | 20 | |
Application example
