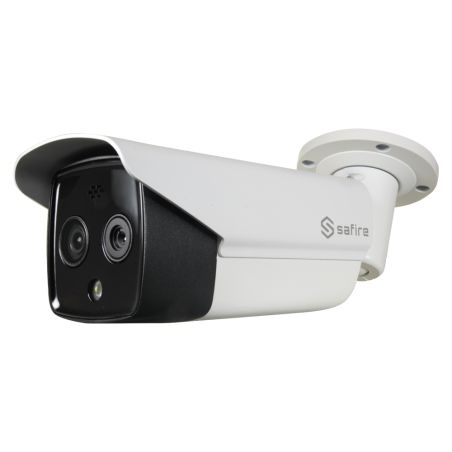

Safire SF-IPTB012DA-7D4-256 - Safire Dual IP thermal camera, 256x192 VOx | 6.9mm…
search
  • Safire SF-IPTB012DA-7D4-256 - Safire Dual IP thermal camera, 256x192 VOx | 6.9mm…

Vesta IR-16SL-F1 VESTA radio PIR detector

VESTA radio PIR detector. 12 meter coverage, 110 °. 2 levels of sensitivity. Optional swivel bracket. It works with a 3V CR123A lithium battery. 5.8 year battery life. EN50131 Grade 2
€60.29 €92.75 Save 35%
Tax included
Reference IR-16SL-F1
Brand Vesta
Quantity
In Stock

Free shipping
Safire SF-IPTB012DA-7D4-256 - Safire Dual IP thermal camera, 256x192 VOx | 6.9mm…

Vesta IR-16SL-F1 VESTA radio PIR detector

€60.29 €92.75 Save 35%

You might also like

Vesta IR-16SL-F1. VESTA radio PIR detector. 12 meter coverage, 110 °. 2 levels of sensitivity. Optional swivel bracket. It works with a 3V CR123A lithium battery. 5.8 year battery life. EN50131 Grade 2

Specifications

  • Detection range: 12 meters, 110 °
  • RF frequency: 868MHz
  • Microprocessor controlled with advanced ADSP algorithms for false alarm immunity
  • Two selectable sensitivity levels
  • Surface or corner mount with tamper protection
  • Long duration battery
  • Fast signal transmission and wide RF range
  • Superior white light and noise rejection
  • Automatic energy saving mechanism
  • Random supervisory signals for system integrity
  • Superior radio interference filter
  • Sensitivity control with temperature compensation
  • LEDs show operating status
  • Works with a 3V CR123A lithium battery
  • 5.8 year battery life
  • -10 ° C ~ + 45 ° C operating temperature
  • Relative humidity up to 85% (non-condensing)
  • Dimensions: 64 (W) x 94 (H) x 42 mm
  • Optional swivel bracket
  • EN50131 Grade 2 Certificate, Environmental Class ?

- VESTA-009N

Vesta

Data sheet

Weight
940 g
Power
12VDC, 0.5A, max.6W, PoE IEEE802.3af, 0.14~0.22A, max.6.5W
Temp. operation
-40º C ~ +65º C
Degree of protection
Weatherproof IP67
Dimensions
138.3 mm (Fo) x 138.3 (An) x 123.1 (Al) mm
Lens
6.9 mm (Therm) / 6.4 mm (Opt)
Viewing angle
24.9° x 18.7° (Term) / 53.0° x 28.0° (Opt)
Internal memory
Micro SD card up to 256GB
Remote access
WEB, CMS (DSS/PSS), Smartphone and NVR interface
Main Stream rate
1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal 2688 × 1520, 1920 × 1080, 1280 × 720) (1~25FPS) Optical
Extra Stream rate
704 × 576, 640 × 512, 320 × 240 (1~25FPS) [%VAR%] Thermal 704 x 576, 352 x 288 (1~25FPS) [%VAR%] Optical
Compression
H.265 / H.264 / MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
Thermal sensor
256x192 Vanadium Oxide
Optical sensor
1/2.7” Progressive Scan CMOS 4 Megapixel
Range performance
Human: 287 (Detection) / 72 (Recognition) / 36 (Identification) m Vehicle: 881 (Detection) / 220 (Recognition) / 110 (Identification) m
VCA ranges
Human: 55.2m Vehicle: 144.9 m Tº measurement (0.2x0.2m): 23.3 m Tº measurement (1x1m): 116.7 m
Thermal sensitivity
≤ 40mK (0.05 º C)
Thermal measurement range
-20 ~150 º C / ± 8 º C
Spectral range
8~14μm
Pitch detector
12μm
VCA
Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area)
Temperature rules
Up to 21 rules (10 points, 10 areas y 1 line)
Audio In/Out
1/ 1 line level 600 ohm
Alarm In/Out
2/2 Relay
