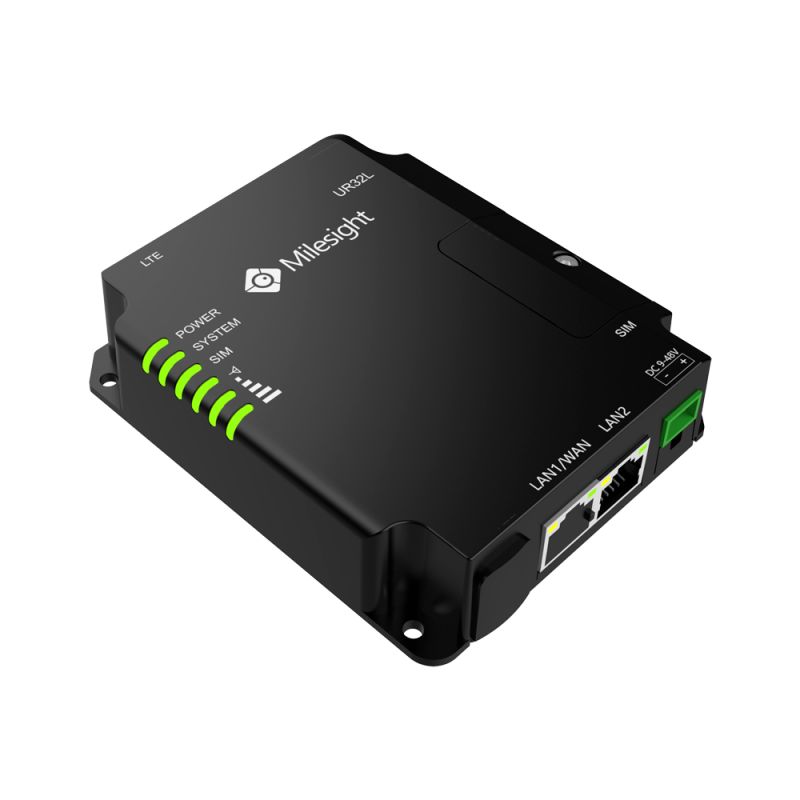

MS-UR32-L04EU-P-W - Milesight, Industrial Router 4G WiFi PoE, 2 Ethernet…
search
  • MS-UR32-L04EU-P-W - Milesight, Industrial Router 4G WiFi PoE, 2 Ethernet…

Vesta IR-35SL-F1 VESTA radio PIR detector

VESTA radio PIR detector. 15 meter coverage, 130 °. 45 kg anti-pet (configurable remotely). Automatic PIR sensor calibration. Double detection function configurable from App Installer. 2 levels of sensitivity (remotely configurable). Efficient dwell time between detections. Optional swivel…
€68.24 €104.98 Save 35%
Tax included
Reference IR-35SL-F1
Brand Vesta
Quantity
Out-of-Stock

Free shipping

Vesta IR-35SL-F1. VESTA radio PIR detector. 15 meter coverage, 130 °. 45 kg anti-pet (configurable remotely). Automatic PIR sensor calibration. Double detection function configurable from App Installer. 2 levels of sensitivity (remotely configurable). Efficient dwell time between detections. Optional swivel bracket. It works with 1 CR123 battery. 5.8 year battery life Ir-35sl.

specs

Detection range: 15 meters, 130 °

Automatic PIR sensor calibration

It has a double detection function (the alarm is confirmed in case of two detections in a short time), configurable from the Installer App

Efficient standby time between detections

RF frequency: 868MHz

Microprocessor controlled with advanced ADSP algorithms for false alarm immunity

Anti-pets up to 45 kg

Two selectable sensitivity levels

Remote configurable sensor sensitivity and anti-pet function

High immunity to false alarms

Tamper Protection

Superior white light and noise rejection

Automatic energy saving mechanism

Random supervisory signals for system integrity

Rejection of radio interference

Sensitivity control with temperature compensation

Works with 1 CR123 battery

5.8 year battery life

-10 ° C ~ + 45 ° C operating temperature

Relative humidity up to 85% (non-condensing)

2.3 ~ 2.5 meter installation height

Optional swivel bracket

- VESTA-177

Vesta

Data sheet

Weight
271 g
Power
DC 9~48V (48V power supply required for PoE included)
CPU
528 MHZ, 32-bit ARM Cortex-A7
RAM
128 MB DDR3
Temp. operation
-40º C ~ +70º C (reduced LTE functions ≥ 60º C)
Dimensions
26 (Al) x 108 (W) × 90 (Fo) mm
Material
Metallic
Wifi
IEEE 802.11 b/g/n 2.4 GHz Access Point
PoE
1~2 IEEE 802.3af/at POE ports
Installation
DIN rail, wall or desktop
Ethernet
2 Ethernet RJ45 10/100 ports Mbps
Operating Humidity
0 ~ 95 % (non-condensing) to 25º C
Device
Industrial Router 4G PoE
FLASH
128 MB
SIM
2 microSIM card slots 4G / 3G (not included)
LTE Frequencies
Bands 1/3/5/7/8/20/38/40/41
Antenna connectors
LTE and WiFi (antennas included)
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
Ports
I/O and serial RS232
