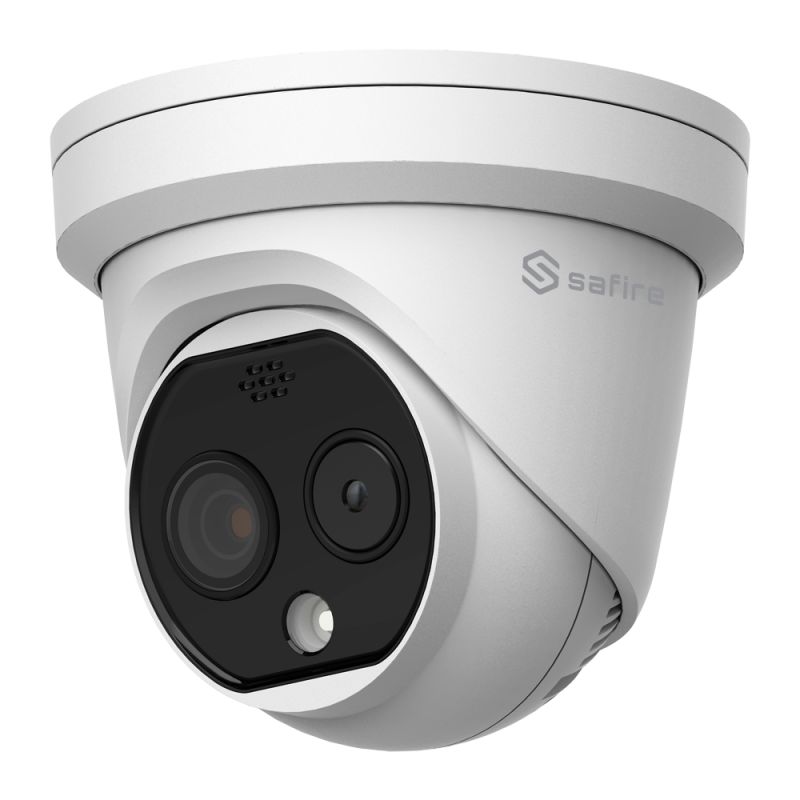

Data sheet

Weight

940 g

Power

12VDC, 0.5A, max.6W, PoE IEEE802.3af, 0.14~0.22A, max.6.5W

Temp. operation

-40º C ~ +65º C

Degree of protection

Weatherproof IP66

Dimensions

138.3 mm (Fo) x 138.3 (An) x 123.1 (Al) mm

Lens

6.9 mm (Therm) / 6.4 mm (Opt)

Viewing angle

24.9° x 18.7° (Term) / 53.0° x 28.0° (Opt)

Internal memory

Micro SD card up to 256GB

Remote access

WEB, CMS (DSS/PSS), Smartphone and NVR interface

Main Stream rate

1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal 2688 × 1520, 1920 × 1080, 1280 × 720) (1~25FPS) Optical

Extra Stream rate

704 × 576, 640 × 512, 320 × 240 (1~25FPS) [%VAR%] Thermal 704 x 576, 352 x 288 (1~25FPS) [%VAR%] Optical

Compression

H.265 / H.264 / MJPEG

Network interface

Ethernet 10/100 BaseT

Interoperability

ONVIF

Thermal sensor

256x192 Vanadium Oxide

Optical sensor

1/2.7” Progressive Scan CMOS 4 Megapixel

Range performance

Human: 287 (Detection) / 72 (Recognition) / 36 (Identification) m Vehicle: 881 (Detection) / 220 (Recognition) / 110 (Identification) m

VCA ranges

Human: 55.2m Vehicle: 144.9 m Tº measurement (0.2x0.2m): 23.3 m Tº measurement (1x1m): 116.7 m

Thermal sensitivity

≤ 40mK (0.05 º C)

Thermal measurement range

-20 ~150 º C / ± 8 º C

Spectral range

8~14μm

Pitch detector

12μm

VCA

Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area)

Temperature rules

Up to 21 rules (10 points, 10 areas y 1 line)

Audio In/Out

1/ 1 line level 600 ohm

Alarm In/Out

1/1 Relay
