Vesta KPT-35N-COMBO-F1 VESTA keyboard combined RF (F1) + wired
VESTA keyboard combined RF (F1) + wired. RFID reader and 2 chiclet type proximity tags. Supports NFC tags and Mifare cards. Built-in siren. 32-character LCD display. Up to 32 keyboards per system. 4 wires via RS485, up to 150 m. For hybrid control panel programming
€176.99
€272.29
Save 35%
Tax included
Reference
KPT-35N-COMBO-F1
Brand
Vesta
Vesta KPT-35N-COMBO-F1 VESTA keyboard combined RF (F1) + wired
€176.99
€272.29
Save 35%
Vesta KPT-35N-COMBO-F1. VESTA keyboard combined RF (F1) + wired. RFID reader and 2 chiclet type proximity tags. Supports NFC tags and Mifare cards. Built-in siren. 32-character LCD display. Up to 32 keyboards per system. 4 wires via RS485, up to 150 m. For hybrid control panel programming Kpt-35n -combo-f1 868.
Specifications
Wireless and wired keyboard with proximity reader and 2 proximity tags
RF frequency: F1 868 MHz
Supports NFC tags and Mifare cards (ISO 14443A)
Compatible with the VESTA hybrid security system
Installer and user menus for configuration
32 character LCD display
Alarm memory, event logs, fault or system status reports
Built-in siren to emit alarm sounds
Audible beeps to indicate entry / exit delays and other system statuses
Illuminated LCD display and keypad for optimal visibility in the dark
Dual key function to activate panic, fire or medical emergency alarms
Periodic monitoring signals to check the integrity of the system
Simple installation with both wall and desktop mounting option
4-wire connection via RS-485, up to 150 meters
Up to 32 wired keyboards per system
Wall tamper tamper
12V DC voltage
Backup battery: 2 x 1.5V lithium L91 AA batteries (not included)
Battery life of up to 3 years
-10 ° C ~ + 45 ° C operating temperature
85% operating humidity (non-condensing)
Dimensions: 143 (W) x 115 (H) x 28.5 mm
Weight: 244.5 g- VESTA-125N
Data sheet
- Weight
- 65 Kg
- Power
- AC 110/220 V / 35W max.
- Temp. operation
- -25º C ~ +70º C
- Dimensions
- 1020 (H) x 185 (W) x 1400 (D) mm
- Compatibility
- Can be integrated with any third party access control Plug & Play / Universal Covers for RFID readers
- Security
- Configurable anti-tailigating with sound and lock
- Led indicator
- LED status indicator
- Dimensions of pass
- 800 (W) x 1400 (D) mm (Suitable for persons with reduced mobility)
- Controller
- Turnstile control board compatible with any Access Control system with display
- Barrier movement
- Opening angle of the acrylic barrier. In the direction of travel Input or Output
- Emergency mode
- Emergency barrier opening with fire signal
- Lane Width
- 800 mm
- Model

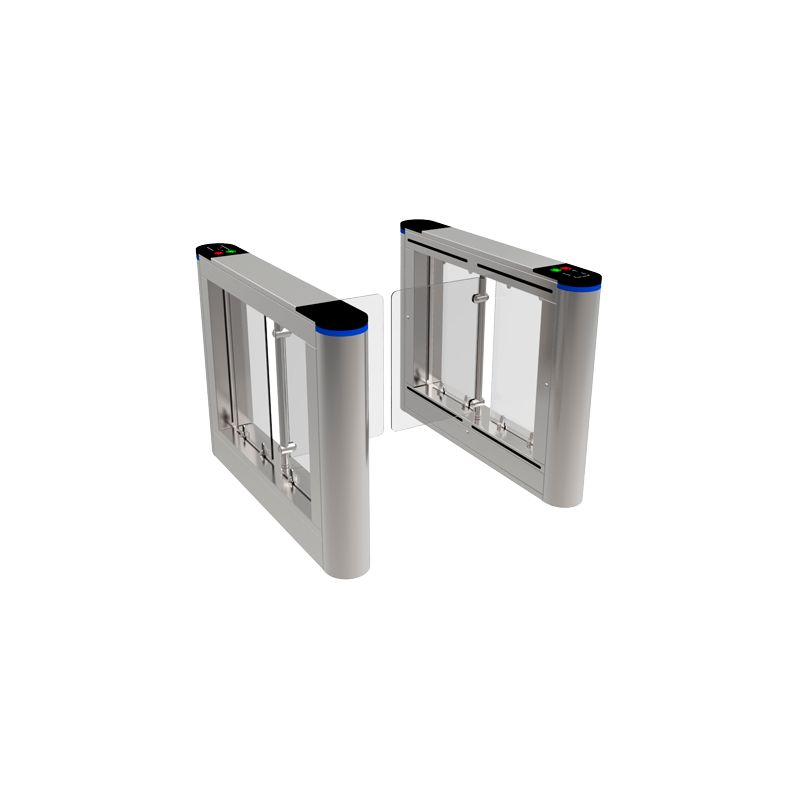

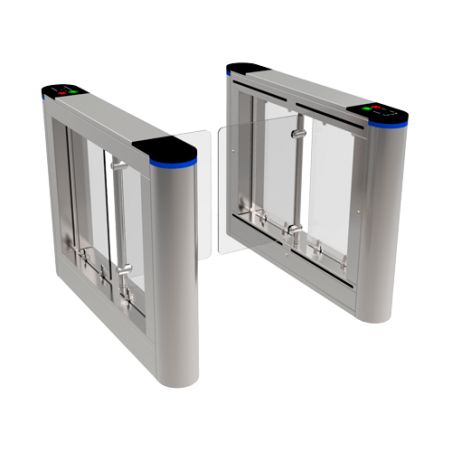

- TS-SG801-800
- Configuration Modes
- One or two directions / Free passage in one direction and access control in the opposite direction
- Manufacturing material
- Stainless steel SUS304 with motorized acrylic doors and PC covers
- Passage speed
- 35-40 persons/minute
- Reliability
- 5.000.000 of cycles
VESTA keyboard combined RF (F1) + wired. RFID reader and 2 chiclet type proximity tags. Supports NFC tags and Mifare cards. Built-in siren. 32-character LCD display. Up to 32 keyboards per system. 4 wires via RS485, up to 150 m. For hybrid control panel programming
