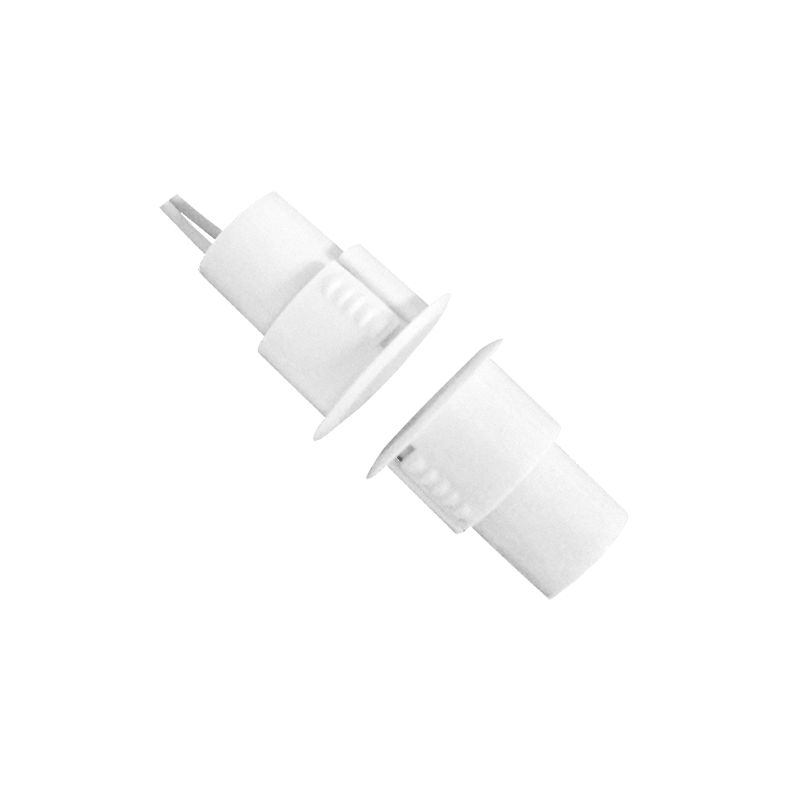

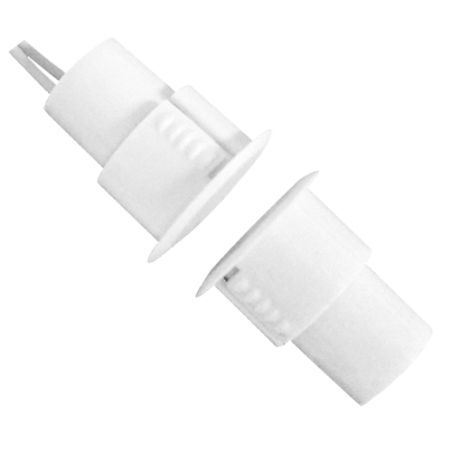

MC-EMPC - Magnetic contact High power, Suitable for metal…

Magnetic contact High power - Suitable for metal installation - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks
€3.30 €5.07 Save 35%
Tax included
Reference MC-EMPC
Brand Branded
Quantity
Available in 24/48h

Free shipping
MC-EMPC - Magnetic contact High power, Suitable for metal…

MC-EMPC - Magnetic contact High power, Suitable for metal…

€3.30 €5.07 Save 35%
  • Recessed magnetic detector
  • Reed Technology
  • High power
  • Suitable for metal installation
  • Resistance to mechanical and electrical shocks
  • 2-wire connection system

Features

  • Magnetic contact High power
  • Suitable for metal installation
  • Reed Detection Technology
  • 2-wire connection system
  • Resistance to mechanical and electrical shocks

Specs

Technology Reed
Power High power
Maximum detection distance Up to 30mm depending on the material where it is installed
Material Plastic
Cable 2 wires
Magnet Neodymium
Resistance to mechanical shocks Up to 18KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 25 x Ø24-19-15 mm
Magnet: 25 x Ø24-19-15 mm

Package content

  • Magnetic contact
  • User instructions

Data sheet

Power
High power
Technology
Reed
Dimensions
Detector: 25 x Ø24-19-15 mm Magnet: 25 x Ø24-19-15 mm
Material
Plastic
Maximum detection distance
Up to 30mm depending on the material where it is installed
Magnet
Neodymium
Resistance to mechanical shocks
Up to 18KgS
Electrical parameters
100 VDC/VAC max, 500mA, 10W
Cable
2 wires
