MC-EWPC - Magnetic contact, Suitable for installation in wood,…

Name: Orbita Digital
Address: Dr. Francisco Grande Covian, 3, Oviedo, Asturias, 33011
Price range: €-€€€€

Magnetic contact - Suitable for installation in wood - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks

€2.07 €3.19 Save 35%

Tax included

Reference MC-EWPC

Brand Branded

MC-EWPC - Magnetic contact, Suitable for installation in wood,…

€2.07 €3.19 Save 35%

Description
Product Details

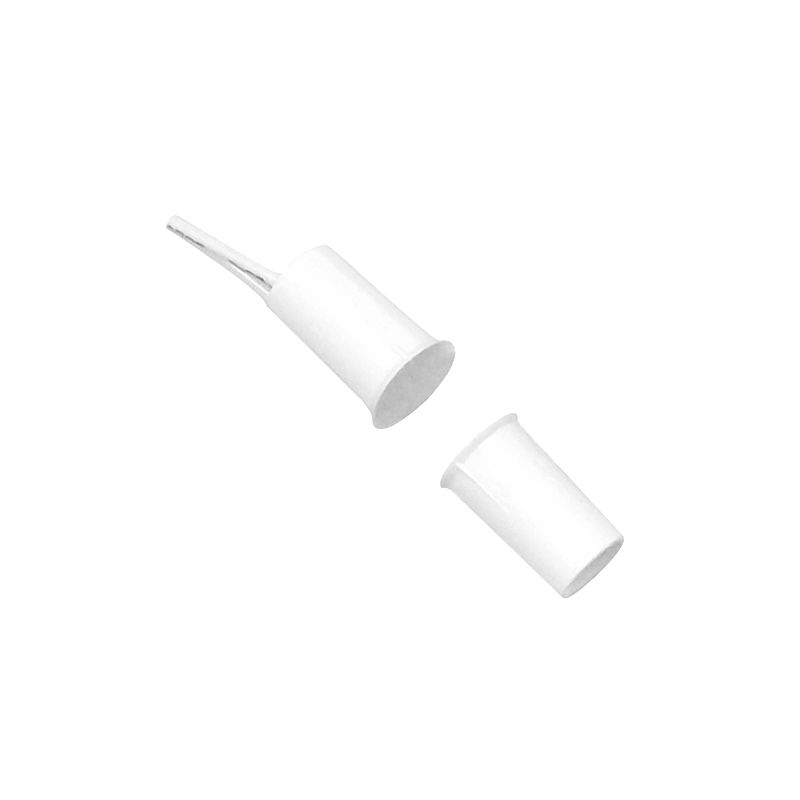

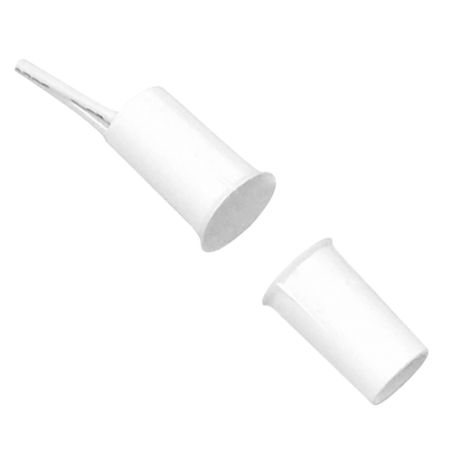

Recessed magnetic detector
Reed Technology
Suitable for installation in wood
Resistance to mechanical and electrical shocks
2-wire connection system

Features

Magnetic contact
Suitable for installation in wood
Reed Detection Technology
2-wire connection system
Resistance to mechanical and electrical shocks

Specs

Technology	Reed
Power	Medium power
Type of contact	Normally closed
Maximum detection distance	Up to 15mm depending on the material where it is installed
Material	Plastic
Cable	2 wires
Magnet	Neodymium
Resistance to mechanical shocks	Up to 15KgS
Electrical parameters	100 VDC/VAC max, 500mA, 10W
Dimensions	Detector: 17 x Ø11-9 mm Magnet: 17 x Ø11-9 mm

Package content

Magnetic contact
User instructions

Data sheet

Power: Medium power
Technology: Reed
Dimensions: Detector: 17 x Ø11-9 mm Magnet: 17 x Ø11-9 mm
Material: Plastic
Maximum detection distance: Up to 15mm depending on the material where it is installed
Magnet: Neodymium
Resistance to mechanical shocks: Up to 15KgS
Electrical parameters: 100 VDC/VAC max, 500mA, 10W
Cable: 2 wires
Type of contact: Normally closed
