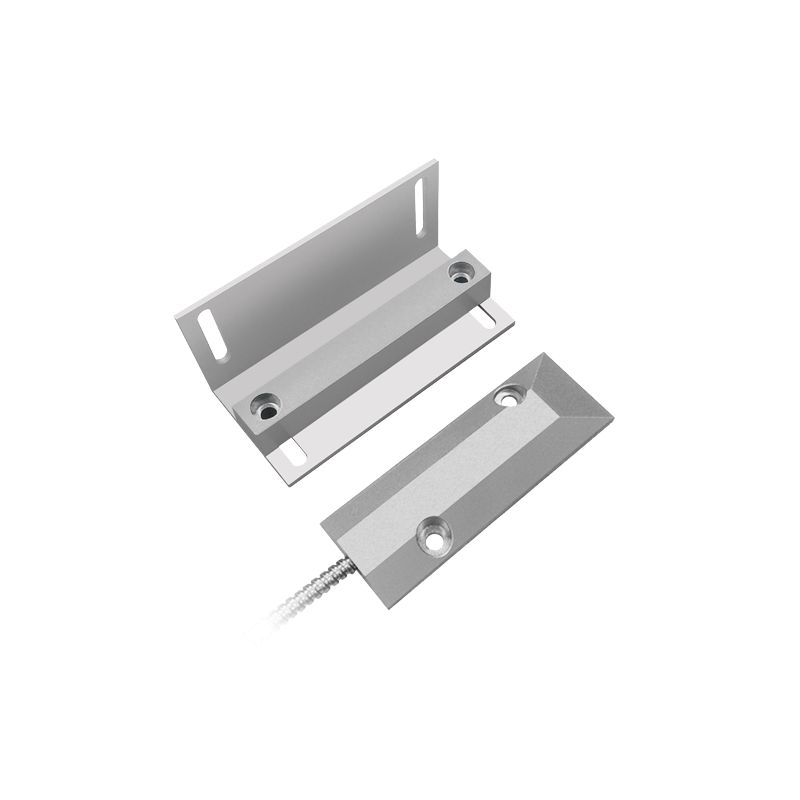

MC-RMMC-L - Magnetic contact, Suitable for metal installation,…
search
  • MC-RMMC-L - Magnetic contact, Suitable for metal installation,…

MC-RMMC-L - Magnetic contact, Suitable for metal installation,…

Magnetic contact - Suitable for metal installation - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks - L-Installation Bracket
€9.87 €15.19 Save 35%
Tax included
Reference MC-RMMC-L
Brand Branded
Quantity
Available in 24/48h

Free shipping
MC-RMMC-L - Magnetic contact, Suitable for metal installation,…

MC-RMMC-L - Magnetic contact, Suitable for metal installation,…

€9.87 €15.19 Save 35%
  • Magnetic contact for shutters and metallic doors
  • Reed Technology
  • High power
  • Suitable for metal installation
  • L-Installation Bracket
  • Resistance to mechanical and electrical shocks
  • 2-wire system

Features

  • Magnetic contact
  • Suitable for metal installation
  • Reed Detection Technology
  • 2-wire connection system
  • Resistance to mechanical and electrical shocks
  • L-Installation Bracket

Specs

Technology Reed
Power High power
Maximum detection distance Up to 50mm depending on the material where it is installed
Material Metallic
Cable 2 wires protected by metal mesh
Magnet Neodymium
Resistance to mechanical shocks Up to 19KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 106 (W) x 10 (H) x 38 (D) mm
Magnet: 106 (W) x 16 (H) x 16 (D) mm

Package content

  • Magnetic contact
  • L-mount installation bracket
  • User instructions

Data sheet

Power
High power
Technology
Reed
Dimensions
Detector: 106 (W) x 10 (H) x 38 (D) mm Magnet: 106 (W) x 16 (H) x 16 (D) mm
Material
Metallic
Maximum detection distance
Up to 50mm depending on the material where it is installed
Magnet
Neodymium
Resistance to mechanical shocks
Hasta 19KgS
Up to 19KgS
Electrical parameters
100 VDC/VAC max, 500 mA, 10W
100 VDC/VAC max, 500mA, 10W
Cable
2 wires protected by metal mesh
