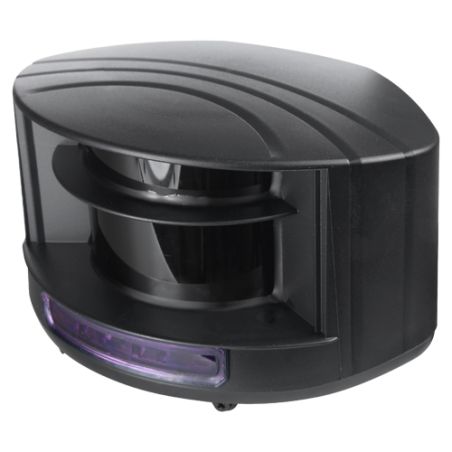

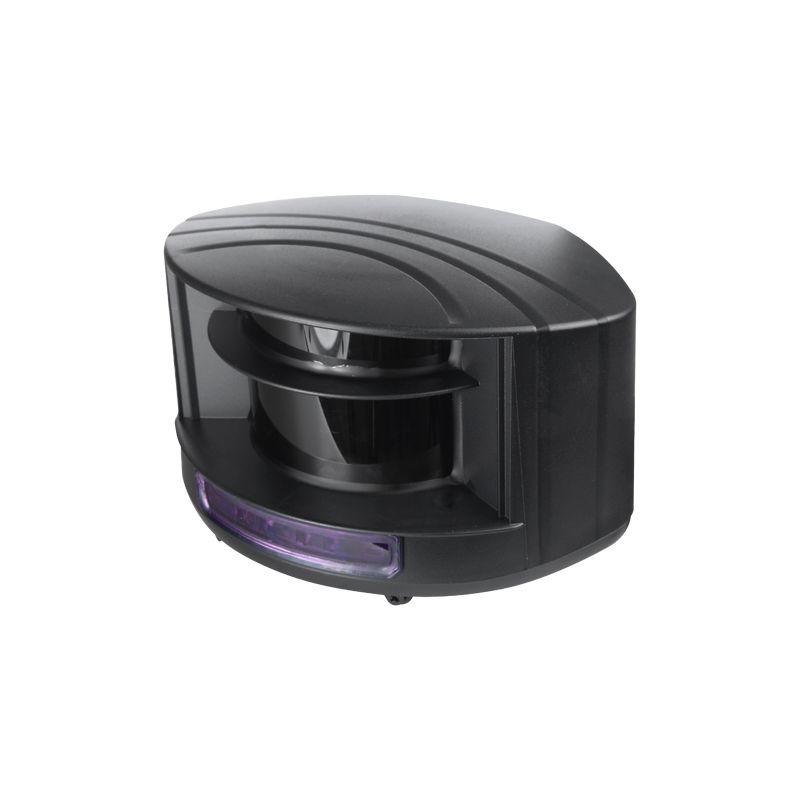

Gjd GJD505 - GJD External Laser Detector, Laser technology with…
GJD External Laser Detector - Laser technology with curtain-like coverage - Detection range adjustable up to 5 m - High reliability and precision - Power supply 10~35 VDC - Outdoor use
€1,153.10
€1,774.00
Save 35%
Tax included
Reference
GJD505
Brand
Gjd
Gjd GJD505 - GJD External Laser Detector, Laser technology with…
€1,153.10
€1,774.00
Save 35%
You might also like
- GJD
- Outdoor Laser Detector
- Laser curtain coating technology
- Adjustable detection range up to 5 x 5 m
- Vertical coverage 90º
- High reliability and precision
- 3 beams IR detector
- Motion detection indicator
- Power supply 10~35 VDC
- Outdoor use
- Degree of protection IP65
Features
- GJD External Laser Detector
- Laser technology with curtain-like coverage
- Detection range adjustable up to 5 m
- High reliability and precision
- Power supply 10~35 VDC
- Outdoor use
Specs
| Brand | GJD |
| Technology | Laser Technology |
| Detection range | Up to 5 x 5 m / 90º laser curtains for alarm and pre-alarm |
| Minimum target size | Depending on the distance to the detector: 2.1 cm to 3 m / 3.5 cm to 5 m |
| Response time in detection | 20 ms |
| Emission characteristics | Wavelength: 905 nm (IR laser) / 650 nm (visible red laser during installation) |
| Tamper-resistant opening | Available |
| LEDs indication | ON/OFF, Alarm and Fault |
| Configuration | Configuration by remote control command GJD501 |
| Wired outputs | Alarm and Tamper |
| Installation | 3 visible laser beams to adjust the detection area and self-learning function |
| Power | 10 at 35 VDC |
| Average consumption | < 5 W |
| Temp. operation | -30 ºC ~ 60 ºC |
| Degree of protection | IP65 |
| Covered material | High quality PC/ASA plastic |
| Dimensions | 70 (H) x 93 (W) x 125 (D) mm |
Package content
- Outdoor laser detector
- Instructions Manual
- Installation material
Data sheet
- Power
- 10 at 35 VDC
- Grado de protección
- IP65
- Technology
- Laser Technology
Tecnología Láser - Detection range
- Hasta 5 x 5 m / 90º / 4 cortinas láser para alarma y pre-alarma
Up to 5 x 5 m / 90º laser curtains for alarm and pre-alarm - LEDs indication
- ON/OFF, Alarm and Fault
ON/OFF, Alarma y Fallo - Temp. operation
- -30 ºC ~ 60 ºC
- Degree of protection
- IP65
- Dimensions
- 70 (Al) x 93 (An) x 125 (Fo) mm
70 (H) x 93 (L) x 125 (Pr) mm
70 (H) x 93 (W) x 125 (D) mm - Power supply
- 10 a 35 VDC
10 at 35 VDC - Tamper-resistant opening
- Available
- Wired outputs
- Alarm and Tamper
Alarma y Tamper
Alarme et Tamper - Brand
- GJD
- Installation
- 3 faisceaux laser visibles pour régler la zone de détection et la fonction d\'auto-apprentissage
3 haces láser visibles para ajustar el área de detección y función de auto-aprendizaje
3 visible laser beams to adjust the detection area and self-learning function - Configuration
- Configuración mediante mando de control remoto GJD501
Configuration avec télécommande GJD501
Configuration by remote control command GJD501 - Degré de protection
- IP65
- Temp. fonctionnement
- -30 ºC ~ 60 ºC
- Consumo medio
- ≤ 5 W
- Average consumption
- ≤ 5 W
- Material cubierta
- Plástico PC/ASA de alta calidad
- Tamaño mínimo a detectar
- Según distancia al detector: 2.1 cm a 3 m / 3.5 cm a 5 m
- Tiempo de respuesta en detección
- 20 ms
- Características de emisión
- Longitud de onda: 905 nm (láser IR) / 650 nm (láser visible rojo durante instalación)
- Technologie
- Technologie laser
- Champs de détection
- Jusqu\'à 5 x 5 m / 90º rideaux laser pour l\'alarme et la pré-alarme
- Indication LEDs
- ON/OFF, Alarme et Défaut
- Consommation moyenne
- ≤ ≤ 5 W
- Matériau recouvert
- Plastique PC/ASA de haute qualité
- Taille minimum à détecter
- En fonction de la distance au détecteur: 2.1 cm à 3 m / 3.5 cm à 5 m
- Temps de réponse en détection
- 20 ms
- Caractéristiques d\\'émission
- Longueur d´ onde: 905 nm (laser IR) / 650 nm (laser rouge visible lors de l\'installation)
- Covered material
- High quality PC/ASA plastic
- Minimum target size
- Depending on the distance to the detector: 2.1 cm to 3 m / 3.5 cm to 5 m
Depending on the distance to the detector: 2.1 cm to 3 m / 3.5 cm to 5 m - Response time in detection
- 20 ms
- Emission characteristics
- Wavelength: 905 nm (IR laser) / 650 nm (visible red laser during installation)
GJD External Laser Detector - Laser technology with curtain-like coverage - Detection range adjustable up to 5 m - High reliability and precision - Power supply 10~35 VDC - Outdoor use
