  • -35%
Gjd GJD509 - Detector láser exterior GJD, Tecnología Láser con…
search
  • Gjd GJD509 - Detector láser exterior GJD, Tecnología Láser con…

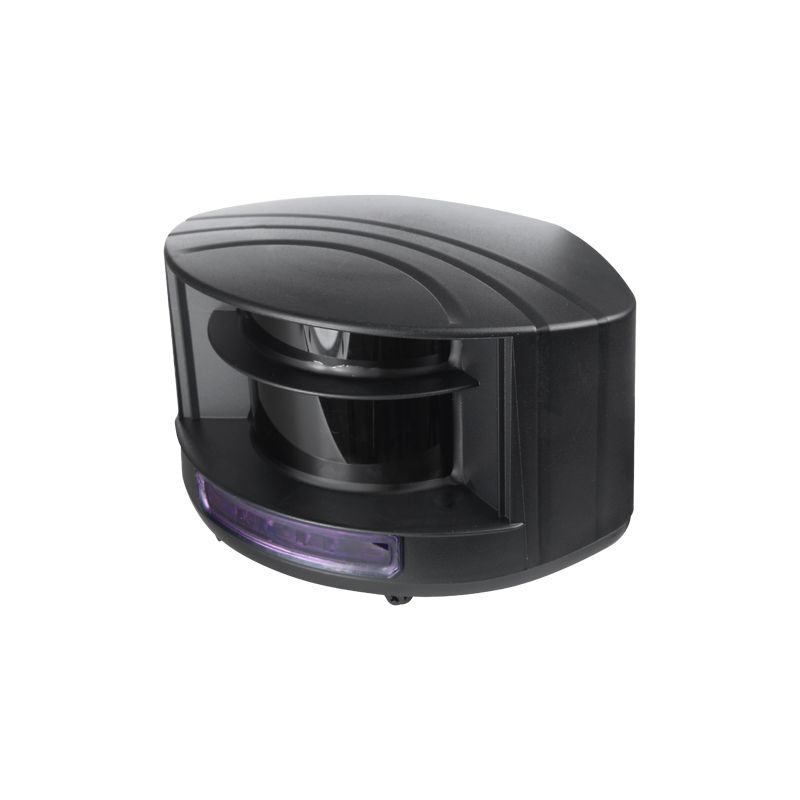

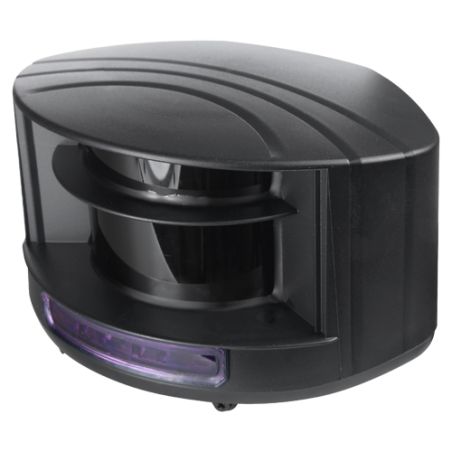

Gjd GJD509 - GJD External Laser Detector, Laser technology with…

GJD External Laser Detector - Laser technology with curtain-like coverage - Detection range adjustable up to 10 m - High reliability and precision - Power supply 10~35 VDC - Outdoor use
€1,589.90 €2,446.00 Save 35%
Tax included
Reference GJD509
Brand Gjd
Quantity
Available in 24/48h

Free shipping
Gjd GJD509 - Detector láser exterior GJD, Tecnología Láser con…

Gjd GJD509 - GJD External Laser Detector, Laser technology with…

€1,589.90 €2,446.00 Save 35%

You might also like

  • GJD
  • Outdoor Laser Detector
  • Laser curtain coating technology
  • Adjustable detection range up to 10 x 10 m
  • Vertical coverage 90º
  • High reliability and precision
  • 3 beams IR detector
  • Motion detection indicator
  • Power supply 10~35 VDC
  • Outdoor use
  • Degree of protection IP65

Features

  • GJD External Laser Detector
  • Laser technology with curtain-like coverage
  • Detection range adjustable up to 10 m
  • High reliability and precision
  • Power supply 10~35 VDC
  • Outdoor use

Specs

Brand GJD
Technology Laser Technology
Detection range Up to 10 x 10 m / 90º laser curtains for alarm and pre-alarm
Minimum target size Depending on the distance to the detector: 2.1 cm at 3 m / 3.5 cm at 5 m / 7 cm at 10 m
Response time in detection 20 ms
Emission characteristics Wavelength: 905 nm (IR laser) / 650 nm (visible red laser during installation)
Tamper-resistant opening Available
LEDs indication ON/OFF, Alarm and Fault
Configuration Configuration by remote control command GJD501
Wired outputs Alarm and Tamper
Installation 3 visible laser beams to adjust the detection area and self-learning function
Power 10 at 35 VDC
Average consumption < 5 W
Temp. operation -30 ºC ~ 60 ºC
Degree of protection IP65
Covered material High quality PC/ASA plastic
Dimensions 70 (H) x 93 (W) x 125 (D) mm

Package content

  • Outdoor laser detector
  • Instructions Manual
  • Installation material
Gjd

Data sheet

Power
10 at 35 VDC
Grado de protección
IP65
Technology
Laser Technology
Tecnología Láser
Detection range
Hasta 10 x 10 m / 90º / 4 cortinas láser para alarma y pre-alarma
Up to 10 x 10 m / 90º laser curtains for alarm and pre-alarm
LEDs indication
ON/OFF, Alarm and Fault
ON/OFF, Alarma y Fallo
Temp. operation
-30 ºC ~ 60 ºC
Degree of protection
IP65
Dimensions
70 (Al) x 93 (An) x 125 (Fo) mm
70 (H) x 93 (L) x 125 (Pr) mm
70 (H) x 93 (W) x 125 (D) mm
Power supply
10 a 35 VDC
10 at 35 VDC
Tamper-resistant opening
Available
Wired outputs
Alarm and Tamper
Alarma y Tamper
Alarme et Tamper
Brand
GJD
Installation
3 faisceaux laser visibles pour régler la zone de détection et la fonction d\'auto-apprentissage
3 haces láser visibles para ajustar el área de detección y función de auto-aprendizaje
3 visible laser beams to adjust the detection area and self-learning function
Configuration
Configuración mediante mando de control remoto GJD501
Configuration avec télécommande GJD501
Configuration by remote control command GJD501
Degré de protection
IP65
Temp. fonctionnement
-30 ºC ~ 60 ºC
Consumo medio
≤ 5 W
Average consumption
≤ 5 W
Material cubierta
Plástico PC/ASA de alta calidad
Tamaño mínimo a detectar
Según distancia al detector: 2.1 cm a 3 m / 3.5 cm a 5 m / 7 cm a 10 m
Tiempo de respuesta en detección
20 ms
Características de emisión
Longitud de onda: 905 nm (láser IR) / 650 nm (láser visible rojo durante instalación)
Technologie
Technologie laser
Champs de détection
Jusqu\'à 10 x 10 m / 90º rideaux laser pour l\'alarme et la pré-alarme
Indication LEDs
ON/OFF, Alarme et Défaut
Consommation moyenne
≤ ≤ 5 W
Matériau recouvert
Plastique PC/ASA de haute qualité
Taille minimum à détecter
En fonction de la distance au détecteur: 2.1 cm à 3 m / 3.5 cm à 5 m / 7 cm à 10 m
Temps de réponse en détection
20 ms
Caractéristiques d\\'émission
Longueur d´ onde: 905 nm (laser IR) / 650 nm (laser rouge visible lors de l\'installation)
Longueur d´ onde: 905 nm (laser IR) / 650 nm (laser rouge visible lors de l\'installation)
Covered material
High quality PC/ASA plastic
Minimum target size
Depending on the distance to the detector: 2.1 cm at 3 m / 3.5 cm at 5 m / 7 cm at 10 m
Depending on the distance to the detector: 2.1 cm to 3 m / 3.5 cm to 5 m / 7 cm to 10 m
Response time in detection
20 ms
Emission characteristics
Wavelength: 905 nm (IR laser) / 650 nm (visible red laser during installation)
