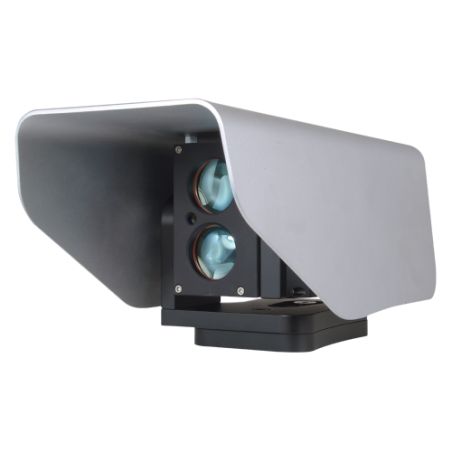

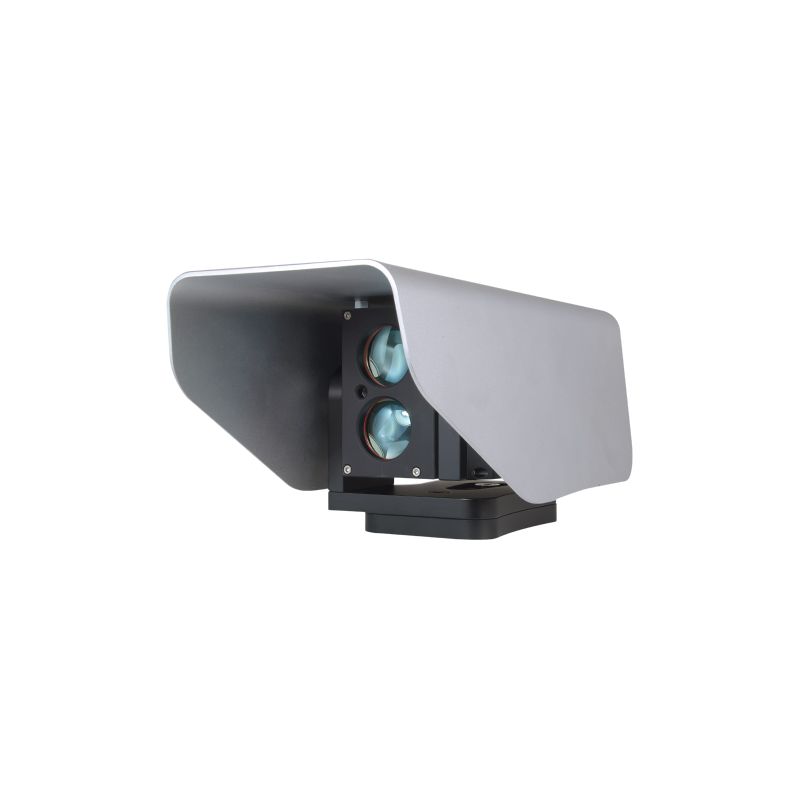

Gjd GJD515 - GJD External Laser Detector, Long Range Laser…
GJD External Laser Detector - Long Range Laser Technology - Detection range adjustable up to 500 m - High reliability and precision - 12 VDC / PoE IEEE power supply 802. 3af - Outdoor use
€6,272.50
€9,650.00
Save 35%
Tax included
Reference
GJD515
Brand
Gjd
Gjd GJD515 - GJD External Laser Detector, Long Range Laser…
€6,272.50
€9,650.00
Save 35%
- GJD
- Outdoor Laser Detector
- Laser technology
- Adjustable detection range up to 500 m
- High reliability and precision
- Up to 20 customisable alarm zones
- Power supply 12 VDC or PoE IEEE 802. 3af
- Outdoor use
- Degree of protection IP66
Features
- GJD External Laser Detector
- Long Range Laser Technology
- Detection range adjustable up to 500 m
- High reliability and precision
- 12 VDC / PoE IEEE power supply 802. 3af
- Outdoor use
Specs
| Brand | GJD |
| Technology | Laser Technology |
| Detection range | Up to 500 m |
| Alarm zones | Up to 20 individually programmable zones |
| Minimum target size | 10 cm |
| IR Laser emission | Wavelength: 905 nm |
| Tamper | Available: Anti tampering for change of direction |
| Wired outputs | Alarm NO/NC (max 30 V / 200 mA) |
| Configuration | WEB Browser |
| Power | DC 12 V , PoE IEEE802.3af |
| Average consumption | 4 W |
| Temp. operation | -30 ºC ~ 60 ºC |
| Degree of protection | IP66 |
| Dimensions | 120 (H) x 130 (W) x 250 (D) mm |
| Weight | 2.4 kg |
Package content
- Outdoor Long Range Laser Detector
- Instructions Manual
- Installation material
