SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 249SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13409 AND id_lang = 1 Fdp A-C3 - FDP magnetic contact, Special for metal surface, Reed…
  • -35%
Fdp A-C3 - Contacto magnético FDP, Especial para superfice en…
search
  • Fdp A-C3 - Contacto magnético FDP, Especial para superfice en…

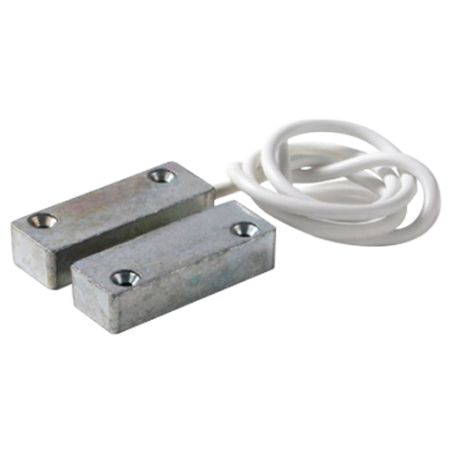

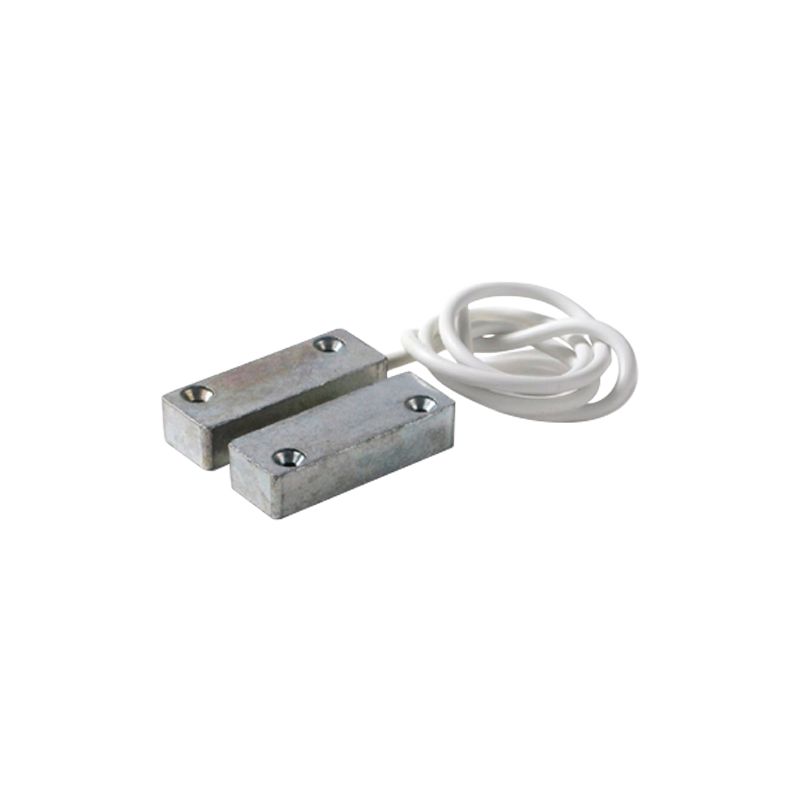

Fdp A-C3 - FDP magnetic contact, Special for metal surface, Reed…

FDP magnetic contact - Special for metal surface - Reed technology High power - 4 Thread system - Metal cover - Suitable for exterior IP65 - Grade 2 approved
€7.75 €11.92 Save 35%
Tax included
Reference A-C3
Brand Fdp
Quantity
Available in 24/48h

Free shipping
Fdp A-C3 - Contacto magnético FDP, Especial para superfice en…

Fdp A-C3 - FDP magnetic contact, Special for metal surface, Reed…

€7.75 €11.92 Save 35%
  • FDP
  • Magnetic surface detector
  • Reed Technology
  • High power
  • Suitable for metal installation
  • High resistance to mechanical and electrical shocks
  • 4 Thread system
  • Metal cover
  • Suitable for exterior IP65
  • Grade 2 approved

Features

  • FDP magnetic contact
  • Special for metal surface
  • Reed technology High power
  • 4 Thread system
  • Metal cover
  • Suitable for exterior IP65
  • Grade 2 approved

Specs

Brand FDP
Security grade Grade 2 (EN50131-2-6)
Environmental class Class 4 / Suitable for outdoor IP65
Technology Reed
Power High power
Maximum detection distance In wood 20 mm
In ferrous materials 10 mm
In Aluminium 20 mm
Installation Form Surface
Cable length 4 60cm(2 alarm / 2 tamper wires)
Magnet Neodymium
Electrical parameters 200 VDC max, 0.5A, 10W
Material Metallic
Dimensions 52 x 19 x 13 mm

Package content

  • Magnetic contact
  • Installation material
  • User instructions
Fdp

Data sheet

Power
High power
Technology
Reed
Security grade
Grade 2 (EN50131-2-6)
Grado 2 (EN50131-2-6)
Dimensions
52 x 19 x 13 mm
Material
Metallic
Cable length
4 60cm(2 alarm / 2 tamper wires)
Environmental class
Clase 4 / Apto para exterior IP65
Class 4 / Suitable for outdoor IP65
Maximum detection distance
En madera 20 mm En materiales ferrosos 10 mm En Aluminio 20 mm
In wood 20 mm In ferrous materials 10 mm In Aluminium 20 mm
Magnet
Neodymium
Electrical parameters
200 VDC max, 0.5A, 10W
Forma de instalación
Superficie
Longitud cable
4 hilos 60cm (2 alarma / 2 tamper)
Installation Form
Surface
