• -35%
Fdp A-SC4 - Contacto magnético FDP para persiana, Especial para…
search
  • Fdp A-SC4 - Contacto magnético FDP para persiana, Especial para…

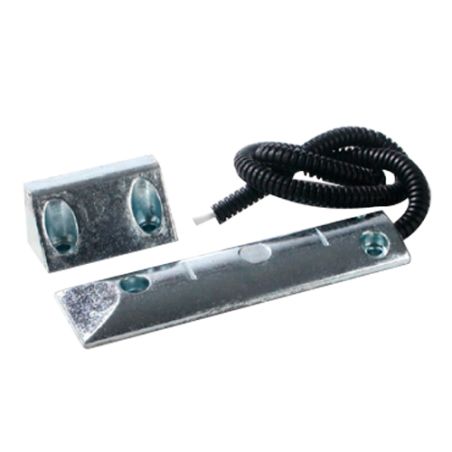

Fdp A-SC4 - FDP magnetic contact for shutter, For installation in…

FDP magnetic contact for shutter - For installation in metal - Reed technology High power - System of 4 armored wires - Metal cover - Suitable for exterior IP65 - Grade 2 approved
€10.54 €16.22 Save 35%
Tax included
Reference A-SC4
Brand Fdp
Quantity
Available in 24/48h

Free shipping
Fdp A-SC4 - Contacto magnético FDP para persiana, Especial para…

Fdp A-SC4 - FDP magnetic contact for shutter, For installation in…

€10.54 €16.22 Save 35%
  • FDP
  • Magnetic contact for shutters and metallic doors
  • Reed Technology
  • High power
  • Suitable for metal installation
  • High resistance to mechanical and electrical shocks
  • 4 Wire mesh system
  • Metal cover
  • Suitable for exterior IP65
  • Grade 2 approved

Features

  • FDP magnetic contact for shutter
  • For installation in metal
  • Reed technology High power
  • System of 4 armored wires
  • Metal cover
  • Suitable for exterior IP65
  • Grade 2 approved

Specs

Brand FDP
Security grade Grade 2 (EN50131-2-6)
Environmental class Class 2 / Suitable for outdoor IP65
Technology Reed
Power High power
Installation Form Shutters and metal doors
Cable length 4 wires 60cm shell
Magnet Neodymium
Electrical parameters 100 VDC max, 1A
Material Metal
Dimensions (Detector / magnet) 151 x 41 x 12 mm / 60.5 x 28.5 x 12 mm

Package content

  • Magnetic contact
  • Installation material
  • User instructions
Fdp

Data sheet

Power
High power
Technology
Reed
Security grade
Grade 2 (EN50131-2-6)
Grado 2 (EN50131-2-6)
Material
Metallic
Cable length
4 wires 60cm shell
Environmental class
Clase 2 / Apto para exterior IP65
Class 2 / Suitable for outdoor IP65
Magnet
Neodymium
Electrical parameters
100 VDC max, 1A
Forma de instalación
Persianas y puertas metálicas
Longitud cable
4 hilos 60cm Acorazados
Dimensiones (Detector / imán)
151 x 41 x 12 mm / 60.5 x 28.5 x 12 mm
Installation Form
Shutters and metal doors
Dimensions (Detector / magnet)
151 x 41 x 12 mm / 60.5 x 28.5 x 12 mm
