MC-EMPS - Contacto magnético Alta potencia, Apto para instalar…
search
  • MC-EMPS - Contacto magnético Alta potencia, Apto para instalar…

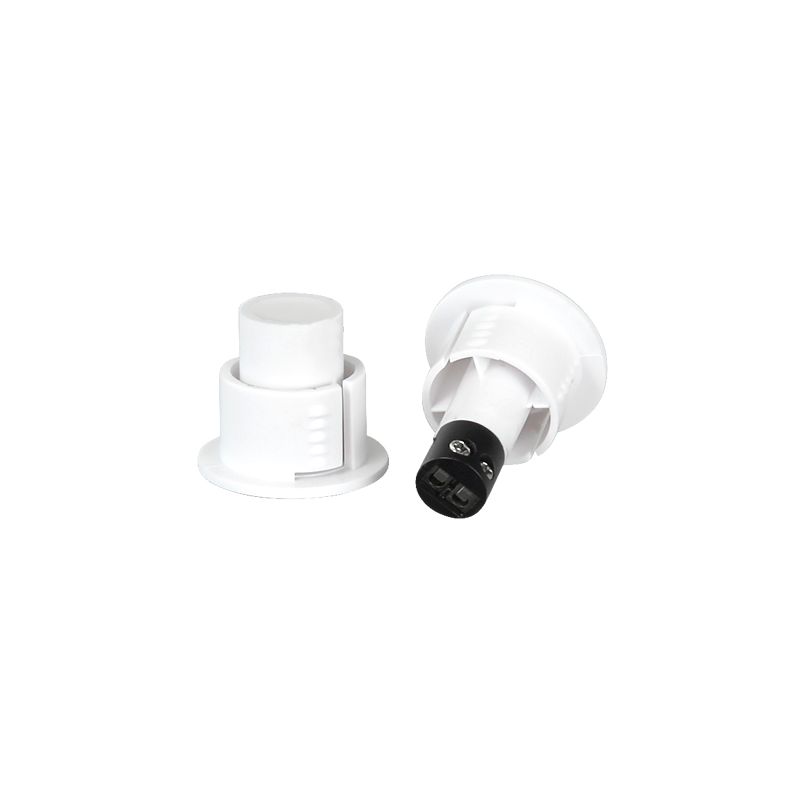

MC-EMPS - Magnetic contact High power, Suitable for metal…

Magnetic contact High power - Suitable for metal installation - Reed Detection Technology - Terminal connection system - Resistance to mechanical and electrical shocks
€5.41 €8.33 Save 35%
Tax included
Reference MC-EMPS
Brand Branded
Quantity
Out-of-Stock

Free shipping
  • Recessed magnetic detector
  • Reed Technology
  • High power
  • Suitable for metal installation
  • Resistance to mechanical and electrical shocks
  • Terminal connection system

Features

  • Magnetic contact High power
  • Suitable for metal installation
  • Reed Detection Technology
  • Terminal connection system
  • Resistance to mechanical and electrical shocks

Specs

Technology Reed
Power High power
Maximum detection distance Up to 25mm depending on the material where it is installed
Material Plastic
Cable Connector for 2 cables
Magnet Neodymium
Resistance to mechanical shocks Up to 10KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 30 x Ø18.5 mm
Terminal: Ø9.5 mm
Magnet: 21 x Ø19 mm

Package content

  • Magnetic contact
  • User instructions

Data sheet

Power
High power
Technology
Reed
Dimensions
Detector: 30 x Ø18.5 mm Terminal: Ø9.5 mm Magnet: 21 x Ø19 mm
Material
Plastic
Maximum detection distance
Up to 25mm depending on the material where it is installed
Magnet
Neodymium
Resistance to mechanical shocks
Up to 10KgS
Electrical parameters
100 VDC/VAC max, 500mA, 10W
Cable
Connector for 2 cables
