MC-SWPS - Magnetic contact, Suitable for installation in wood,…

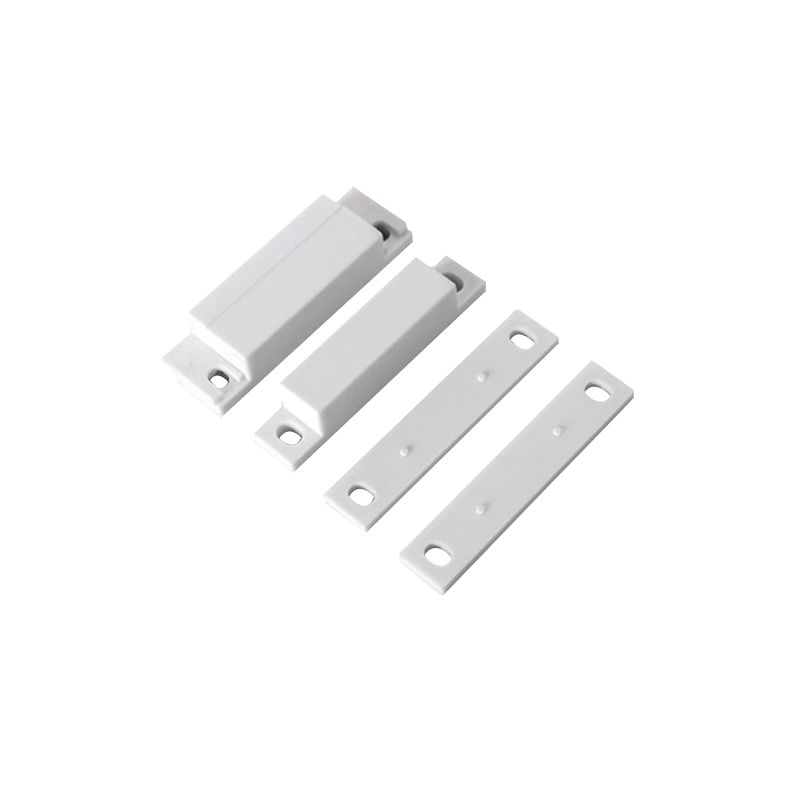

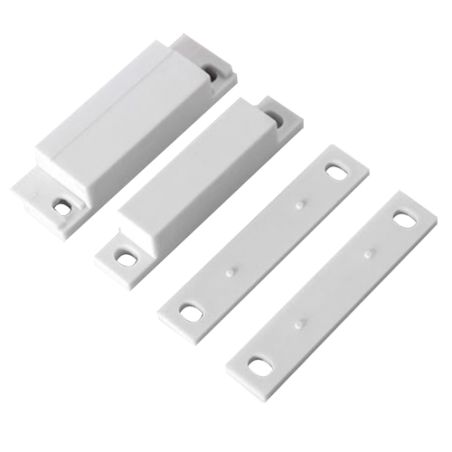

Magnetic contact - Suitable for installation in wood - Reed Detection Technology - Terminal connection system - Resistance to mechanical and electrical shocks
€2.85 €4.38 Save 35%
Tax included
Reference MC-SWPS
Brand Branded
Quantity
Available in 24/48h

Free shipping
MC-SWPS - Magnetic contact, Suitable for installation in wood,…

MC-SWPS - Magnetic contact, Suitable for installation in wood,…

€2.85 €4.38 Save 35%
  • Magnetic surface detector
  • Reed Technology
  • Suitable for installation in wood
  • Resistance to mechanical and electrical shocks
  • Terminal connection system

Features

  • Magnetic contact
  • Suitable for installation in wood
  • Reed Detection Technology
  • Terminal connection system
  • Resistance to mechanical and electrical shocks

Specs

Technology Reed
Power Medium power
Maximum detection distance Up to 20mm depending on the material where it is installed
Material Plastic
Cable Connector for 2 cables
Magnet Neodymium
Resistance to mechanical shocks Up to 20KgS
Electrical parameters 100 VDC/VAC max, 500mA, 10W
Dimensions Detector: 63.5 (W) x 13 (H) x 19 (D) mm
Magnet: 63.5 (W) x 12.8 (H) x 12 (D) mm

Package content

  • Magnetic contact
  • User instructions

Data sheet

Power
Medium power
Technology
Reed
Dimensions
Detector: 63.5 (W) x 13 (H) x 19 (D) mm Magnet: 63.5 (W) x 12.8 (H) x 12 (D) mm
Material
Plastic
Maximum detection distance
Up to 20mm depending on the material where it is installed
Magnet
Neodymium
Resistance to mechanical shocks
Up to 20KgS
Electrical parameters
100 VDC/VAC max, 500mA, 10W
Cable
Connector for 2 cables
