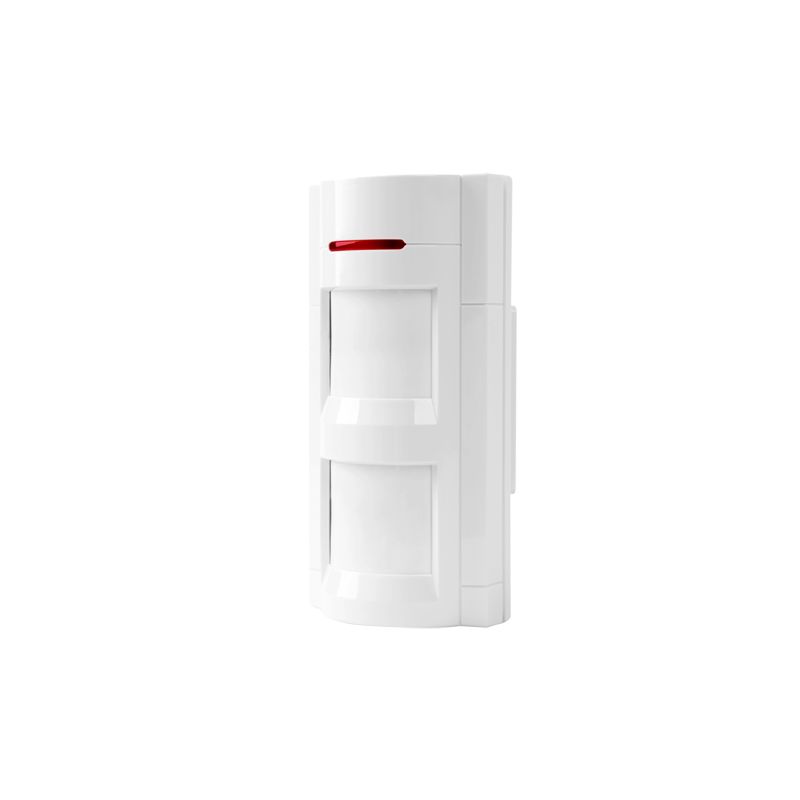

MDO-ST12 - Motion detector, Double volumetric PIR, Detection 12 m…

Motion detector - Double volumetric PIR - Detection 12 m / 110º - Recommended installation 2.2 m - Power supply 9~16 VDC - Outdoor use
€23.40 €36.00 Save 35%
Tax included
Reference MDO-ST12
Brand Branded
Quantity
Out-of-Stock

Free shipping
  • Outdoor detector
  • Double volumetric PIR
  • Detection: Range 12 m / 110º
  • Motion detection indicator
  • Tamper-resistant opening
  • Power supply 9~16 VDC
  • Outdoor use
  • Degree of protection IP55

Features

  • Motion detector
  • Double volumetric PIR
  • Detection 12 m / 110º
  • Recommended installation 2.2 m
  • Power supply 9~16 VDC
  • Outdoor use

Specs

Technology Double volumetric PIR
Detection range 12 m / 110º / Installation 2.2 m
Pet immunity Not available
Masking Not available
Sensitivity Adjustable
Tamper-resistant opening Available
LEDs indication Alarm
Jumper setting PIR Sensitivity, Alarm Type (NC/NO) and LEDs
Wired outputs Alarm and Tamper
Power 9 at 16 VDC
Temp. operation -20 ºC ~ 65 ºC
Degree of protection IP55
Dimensions 150 (H) x 73 (W) x 48 (D) mm

Package content

  • Outdoor PIR Detector
  • Instructions Manual
  • Installation material

Data sheet

Power
9 at 16 VDC
Technology
Double volumetric PIR
Detection range
12 m / 110º / Installation 2.2 m
Pet immunity
Not available
Masking
Not available
Sensitivity
Adjustable
LEDs indication
Alarm
Temp. operation
-20 ºC ~ 65 ºC
Degree of protection
IP55
Dimensions
150 (H) x 73 (W) x 48 (D) mm
Power supply
9 at 16 VDC
Tamper-resistant opening
Available
Wired outputs
Alarm and Tamper
Jumper setting
PIR Sensitivity, Alarm Type (NC/NO) and LEDs
