OC-TORN-CA - Hidden camera, Hidden in screw, 1/4\" OmniVision© CMOS…
Hidden camera - Hidden in screw - 1/4" OmniVision© CMOS colour - 480 TVL - 1.0 Lux - Reduced size
€19.50
€30.00
Save 35%
Tax included
Reference
OC-TORN-CA
Brand
Branded
OC-TORN-CA - Hidden camera, Hidden in screw, 1/4\" OmniVision© CMOS…
€19.50
€30.00
Save 35%

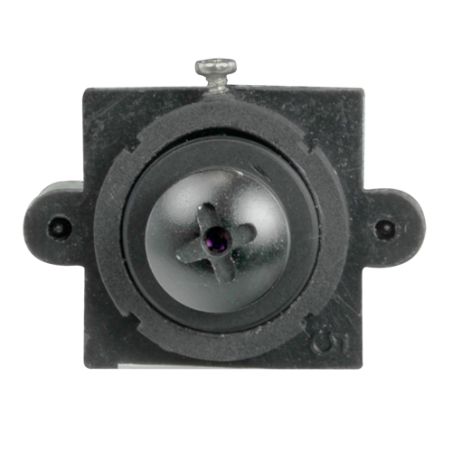

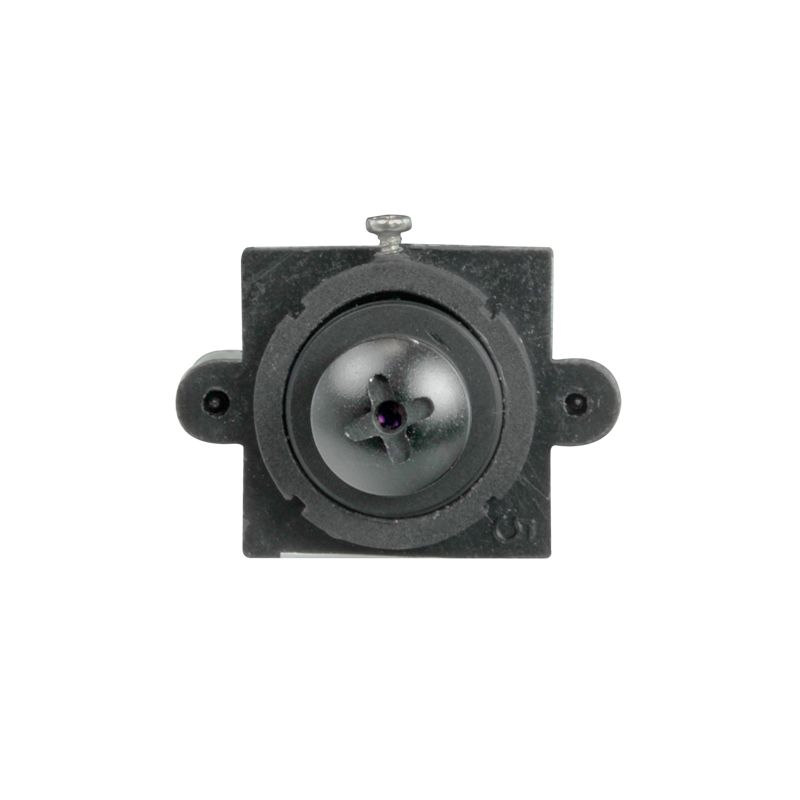

Mini camera camouflaged as a screw.
Consisting of a 1/4” OmniVision® CMOS sensor with a resolution of 480 TVL. Fixed lens of 3.7 mm pinhole with a diagonal range of vision of 58º. Minimum illumination of 1.0 Lux. RCA Video connector.
It can be hidden in multiple elements, such as wooden plates, doors, mailboxes, furniture, etc, leaving visible only the head of the screw.
Features
- Hidden camera
- Hidden in screw
- 1/4" OmniVision© CMOS colour
- 480 TVL
- 1.0 Lux
- Reduced size
Specs
| Image sensor | 1/4” OmniVision® CMOS colour |
| Resolution | 480 TVL |
| Video output | 1 Vp-p 75 Ω / RCA |
| Audio output | 20 mVp-p 10 KΩ / RCA |
| Minimum illumination | 1.0 Lux |
| S/N ratio | > 48 dB |
| Lens | 3.7 mm (58º) Pinhole |
| Power | DC 12 V / 200 mA |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 25 (H) x 20 (W) x 15 (D) mm |
| Weight | 25 g |
Package content
- - Simulated "Screw" camouflaged camera
Data sheet
- Weight
- 25 g
25 g - Power
- DC 12 V / 200 mA
- Resolution
- 480 TVL
- Temp. operation
- -10º C ~ +50º C
- Dimensions
- 25 (H) x 20 (W) x 15 (D) mm
- Power supply
- DC 12 V / 200 mA
- Video output
- 1 Vp-p 75 Ω / RCA
- Audio output
- 20 mVp-p 10 KΩ / RCA
- Image sensor
- 1/4” OmniVision® CMOS colour
- Minimum illumination
- 1.0 Lux
- Lens
- 3.7 mm (58º) Pinhole
- S/N ratio
- ≥ 48 dB
Hidden camera - Hidden in screw - 1/4" OmniVision© CMOS colour - 480 TVL - 1.0 Lux - Reduced size
