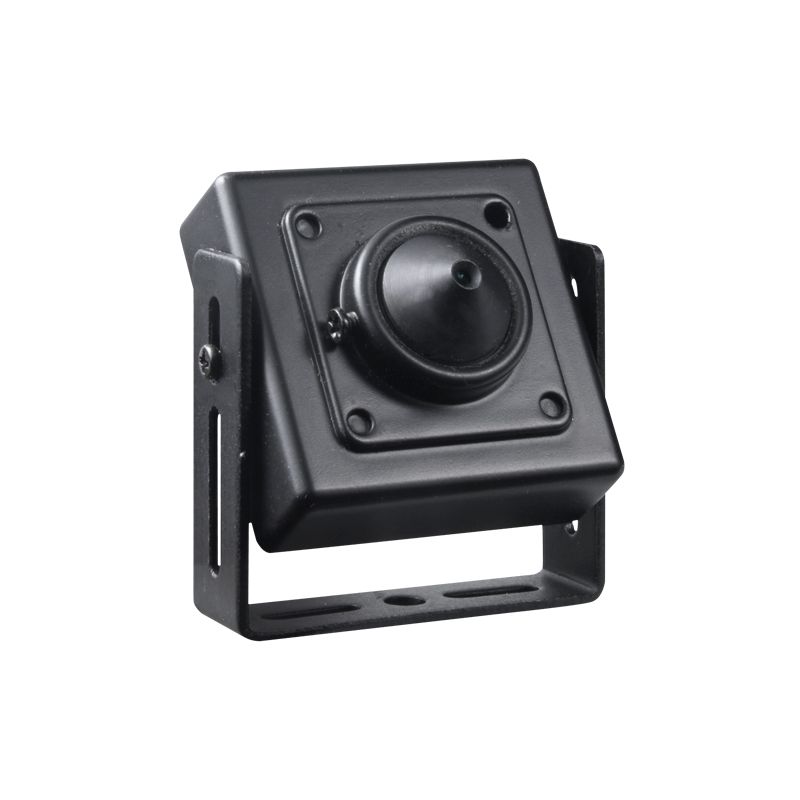

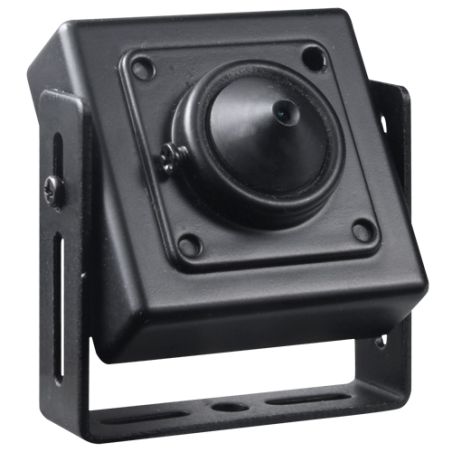

MC221J - Wired mini-camera, 1/3\" Sony© Super HAD CCD II,…
Wired mini-camera - 1/3" Sony© Super HAD CCD II - Resolution 600 TVL - Bracket integrated - 0.3 Lux / F2.0 - 3.7 mm Pinhole Lens
€31.20
€48.00
Save 35%
Tax included
Reference
MC221J
Brand
Branded
MC221J - Wired mini-camera, 1/3\" Sony© Super HAD CCD II,…
€31.20
€48.00
Save 35%
You might also like
Wired miniature camera.
Sony© 1/3" 960H Super HAD CCD II Sensor (model ICX663AKA) & Nextchip© DSP (model NVP2040), and a resolution of 600 TVL. Fixed lens of 3.7 mm pinhole with a diagonal range of vision of 79º. Minimum illumination of 0.3 Lux. Video connection via BNC connector
Metal housing, which makes it more robust against external factors. Ideal for discreet high quality recordings thanks to its high resolution.
Features
- Wired mini-camera
- 1/3" Sony© Super HAD CCD II
- Resolution 600 TVL
- Bracket integrated
- 0.3 Lux / F2.0
- 3.7 mm Pinhole Lens
Specs
| Image sensor | 1/3" Sony© 960H Super HAD CCD II |
| DSP | Nextchip NVP2040 |
| Resolution | 600 TVL |
| Video output | 1 Vp-p 75 Ω / BNC |
| Minimum illumination | 0.3 Lux / F2.0 |
| S/N ratio | > 48 dB |
| Lens | 3.7 mm (79º) Pinhole |
| Power | DC 12 V / 150 mA |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 25 (H) x 25 (W) x 14 (D) mm |
| Weight | 24 g |
Package content
- - Mini-camera
- - Video and power connection cable
- - AC/DC Adapter 12V / 600mA
- - User instructions
Data sheet
- Weight
- 24 g
24 g - Power
- DC 12 V / 150 mA
- Resolution
- 600 TVL
- Temp. operation
- -10º C ~ +50º C
- Dimensions
- 25 (H) x 25 (W) x 14 (D) mm
- Power supply
- DC 12 V / 150 mA
- Video output
- 1 Vp-p 75 Ω / BNC
- Image sensor
- 1/3\" Sony© 960H Super HAD CCD II
- DSP
- Nextchip NVP2040
- Minimum illumination
- 0.3 Lux / F2.0
- Lens
- 3.7 mm (79º) Pinhole
- S/N ratio
- ≥ 48 dB
Wired mini-camera - 1/3" Sony© Super HAD CCD II - Resolution 600 TVL - Bracket integrated - 0.3 Lux / F2.0 - 3.7 mm Pinhole Lens
