• -35%
Sony 1000 Tvl MC270J - Bullet type mini-camera, 1/3" Sony® 960H Super HAD…
search
  • Sony 1000 Tvl MC270J - Bullet type mini-camera, 1/3" Sony® 960H Super HAD…

MC270J - Bullet type mini-camera, 1/3\" Sony® 960H Super HAD…

Bullet type mini-camera - 1/3" Sony® 960H Super HAD CCD II - Resolution 650 TVL - 0.1 Lux / F2.0 - 3.6 mm Lens - For indoor and outdoor use IP66
€35.10 €54.00 Save 35%
Tax included
Reference MC270J
Brand Branded
Quantity
Available in 24/48h

Free shipping
Sony 1000 Tvl MC270J - Bullet type mini-camera, 1/3" Sony® 960H Super HAD…

MC270J - Bullet type mini-camera, 1/3\" Sony® 960H Super HAD…

€35.10 €54.00 Save 35%

You might also like

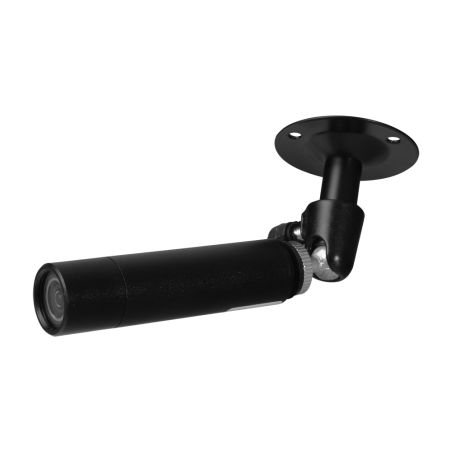

Bullet camera.

Consisting of a sensor 1/3" Sony© 960H Super HAD CCD II (model ICX811AKA) and DSP Effio-E (model CXD4140AGG), with a resolution of 650 TVL. Fixed lens of 3.6 mm with a diagonal vision field of 79º. Minimum illumination 0.1 Lux, will provide excellent functionality in low light conditions.

Video connection via BNC connector. With reduced dimensions and a tubular shape make this adequate for any space. Robust camera, weather resistant IP66, so it can be used outdoors .

Features

  • Bullet type mini-camera
  • 1/3" Sony® 960H Super HAD CCD II
  • Resolution 650 TVL
  • 0.1 Lux / F2.0
  • 3.6 mm Lens
  • For indoor and outdoor use IP66

Specs


Image sensor 1/3" Sony© 960H Super HAD CCD II (ICX811AKA)
DSP Effio-E (CXD4140GG)
Resolution 650 TVL
Video output 1 Vp-p 75 Ω / RCA
Minimum illumination 0.1 Lux / F2.0
S/N ratio > 52 dB
Lens 3.6 mm (79º)
Basic functions AGC, BLC, HLC, ATW
Power DC 12 V / 75 mA
Temp. operation -10º C ~ +50º C
ENVIRONMENT Suitable for exterior IP66
Dimensions 75 (H) x 23 (Ø) mm
Weight 40 g

Package content

- "Bullet" type mini-camera
- Bracket
- Adapter AC/DC 12V / 600mA
- User instructions

Data sheet

Weight
40 g
40 g
40 g
200 g
200 g
200 g
200 g
200 g
200 g
200 g
200 g
200 g
Power
DC 12 V / 75 mA
Resolution
650 TVL
Temp. operation
-10º C ~ +50º C
Dimensions
75 (H) x 23 (Ø) mm
Power supply
DC 12 V / 75 mA
ENVIRONMENT
Suitable for exterior IP66
Video output
1 Vp-p 75 Ω / RCA
Image sensor
1/3\" Sony© 960H Super HAD CCD II (ICX811AKA)
DSP
Effio-E (CXD4140GG)
Minimum illumination
0.1 Lux / F2.0
Basic functions
AGC, BLC, HLC, ATW
Lens
3.6 mm (79º)
S/N ratio
≥ 52 dB
Dimensiones
550 g
550 g
550 g
