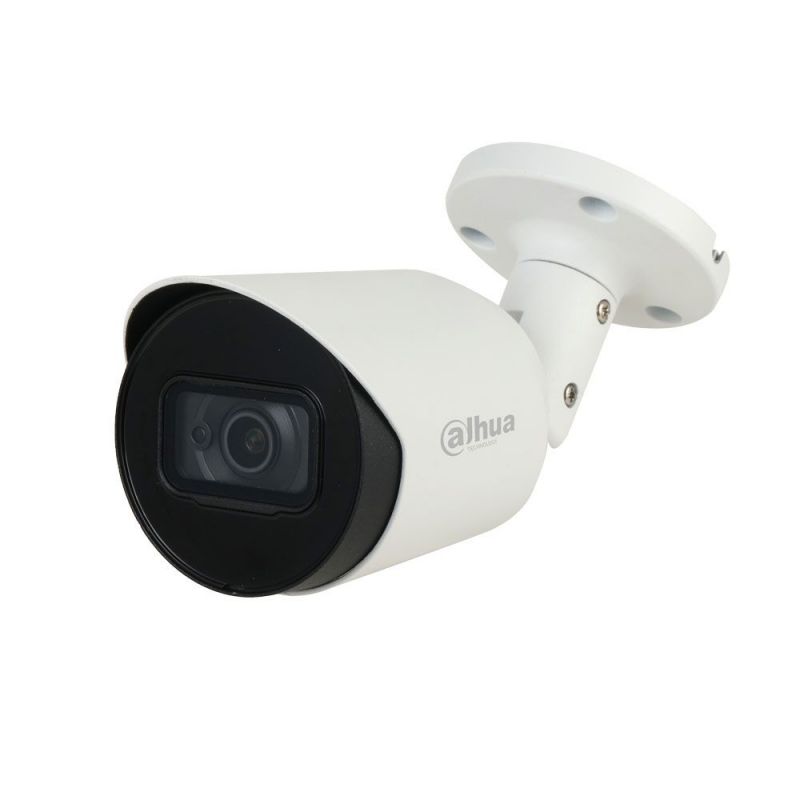

Dahua HAC-HFW1801T-A. 4 in 1 bullet camera PRO series with Smart IR 30 m outdoors. 1/2.7"" CMOS of 8MP. 4 in 1 output (HDCVI / HDTVI / AHD / 960H) switchable from OSD. 2.8 mm (105 °) lens. 0.03 lux. ICR filter OSD, AWB, AGC, BLC, HLC, WDR 120dB, 2D / 3D-DNR, defog, mirror, privacy masks. It incorporates microphone. IP67 3AXIS. 12V DC Hac-hfw1801t-a.

Features

• WDR 120dB, 3D-DNR
• Resolution up to 4K (CVI / TVI / AHD)
• Output 4 in 1 switchable from OSD
• 2.8mm fixed optics
• Smart IR up to 30 meters range
• Incorporates microphone
• Degree of protection IP67

• 12V DC



Specifications

• 1 / 2.7 ”8 megapixel CMOS sensor
• Digital resolution: 4K / 8MP (3840x2160), 5MP (2592x1944), 4MP (2560x1440), 960H (960x576)

• Images per second:

  CVI: 15 ips @ 4K / 8MP, 20 ips @ 5MP, 25 ips @ 4MP

  TVI: 15 ips @ 4K / 8MP, 20 ips @ 5MP, 25 ips @ 4MP

  AHD: 15 ips @ 4K / 8MP, 20 ips @ 5MP, 25 ips @ 4MP
• Output 4 in 1 switchable via OSD
• 0.03 lux F2.0 (color, 30IRE) / 0 lux IR On
• Removable mechanical filter
• Smart IR: 1 led, 30 meters
• 2.8mm fixed optics
• Viewing angle: 105 ° (H), 56 ° (V), 125 ° (D)
• 4X digital zoom
• OSD via coaxial (4K / 8MP and 4MP video up to 700 meters)
• Auto and manual white balance
• Automatic and manual gain control
• Backlight Compensation: BLC, HLC
• WDR 120dB
• 2D / 3D-DNR noise reduction
• Electronic defog
• Mirror mode
• 8 rectangular zone privacy mask
• Incorporates microphone
• Power supply: 12V DC (± 30%)
• Consumption: 5.2W (max.)
• Operating temperature of -40 ° C ~ + 60 ° C
• Storage temperature of -40 ° C ~ + 60 ° C
• Relative humidity: <95% (without condensation)
• Degree of protection IP67
• Metal housing
• Dimensions: 70.6 (W) x 72.3 (H) x 174.5 (L) mm
• Weight: 350g
• 3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 180 ° (TILT), 0 ° ~ 360 ° (Rotation)
